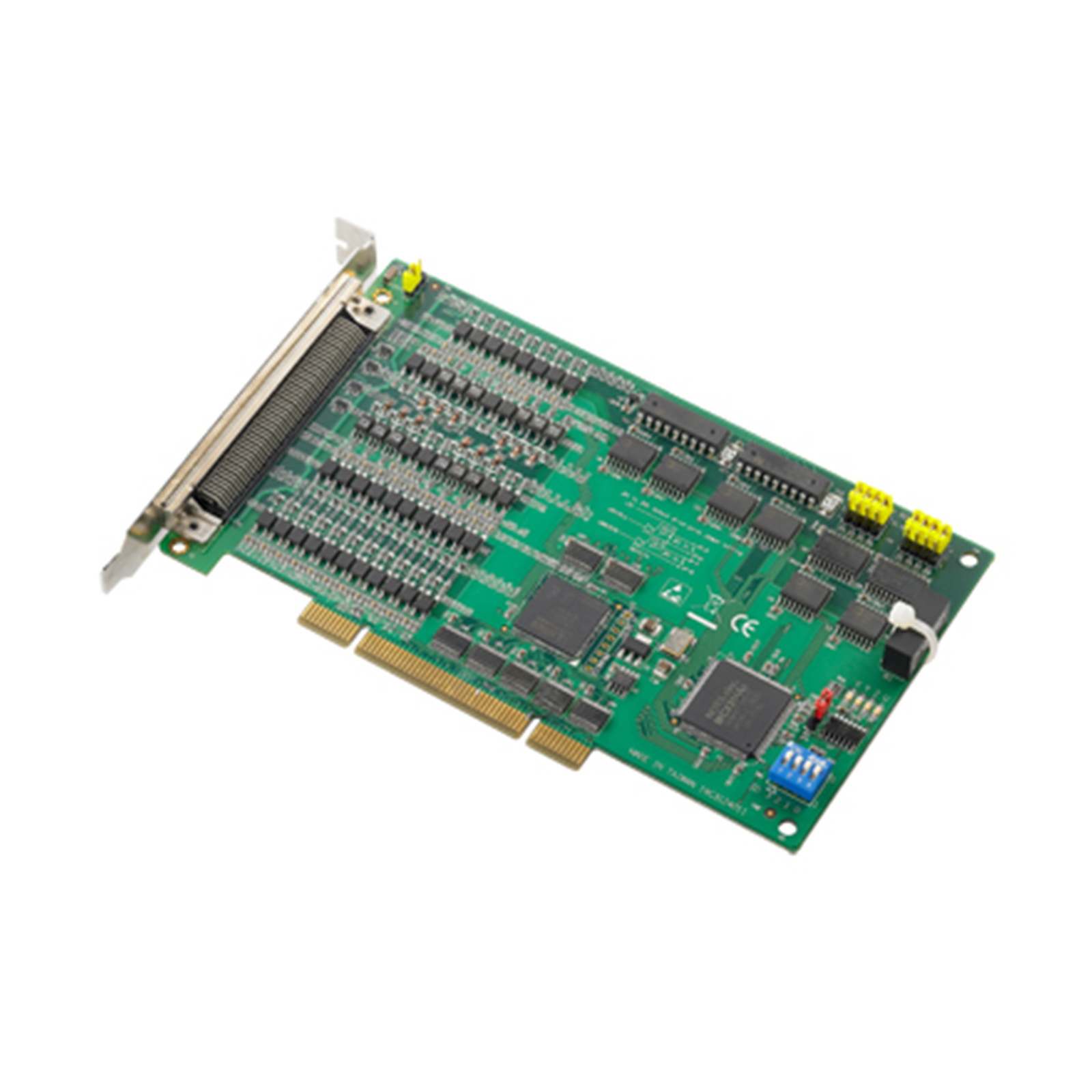

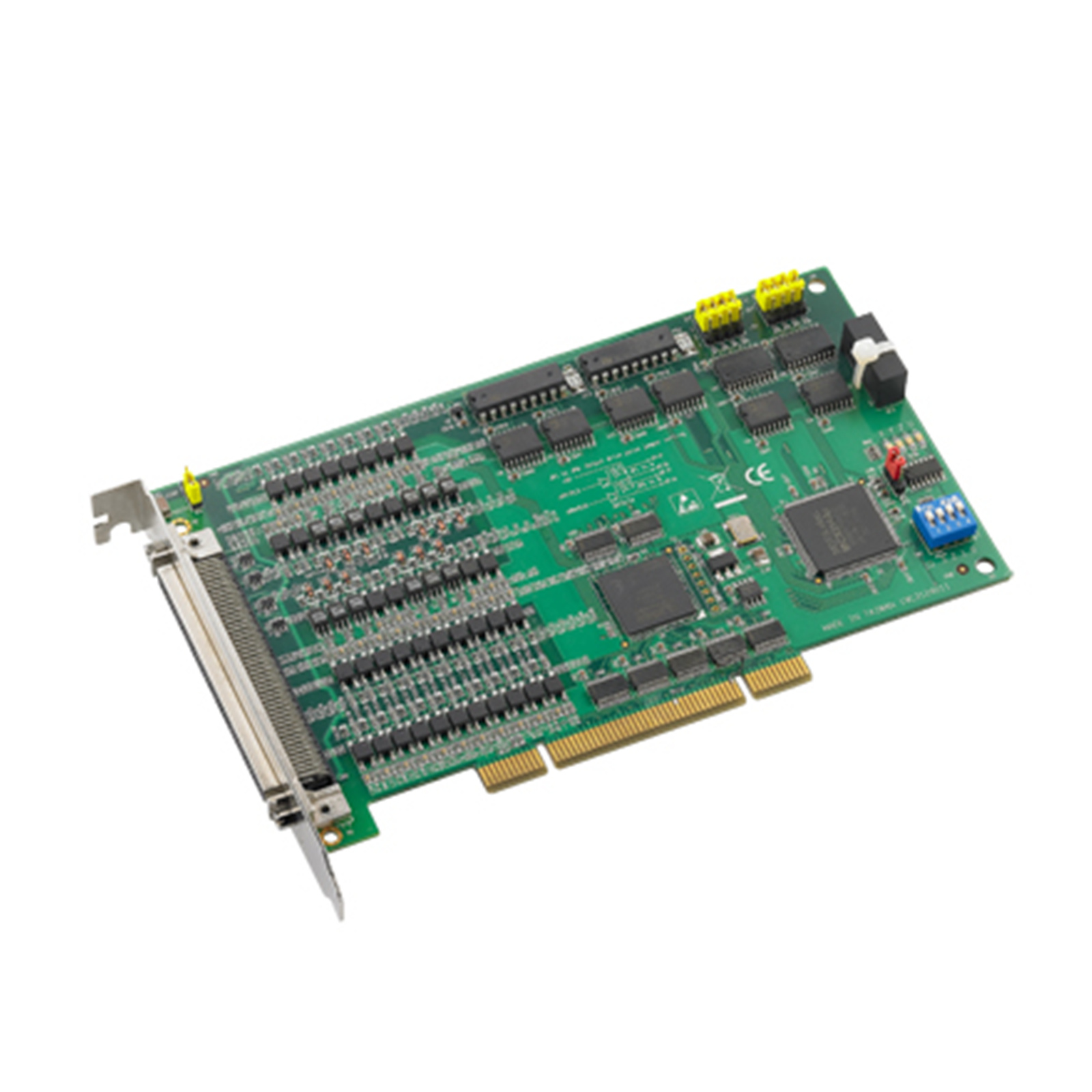

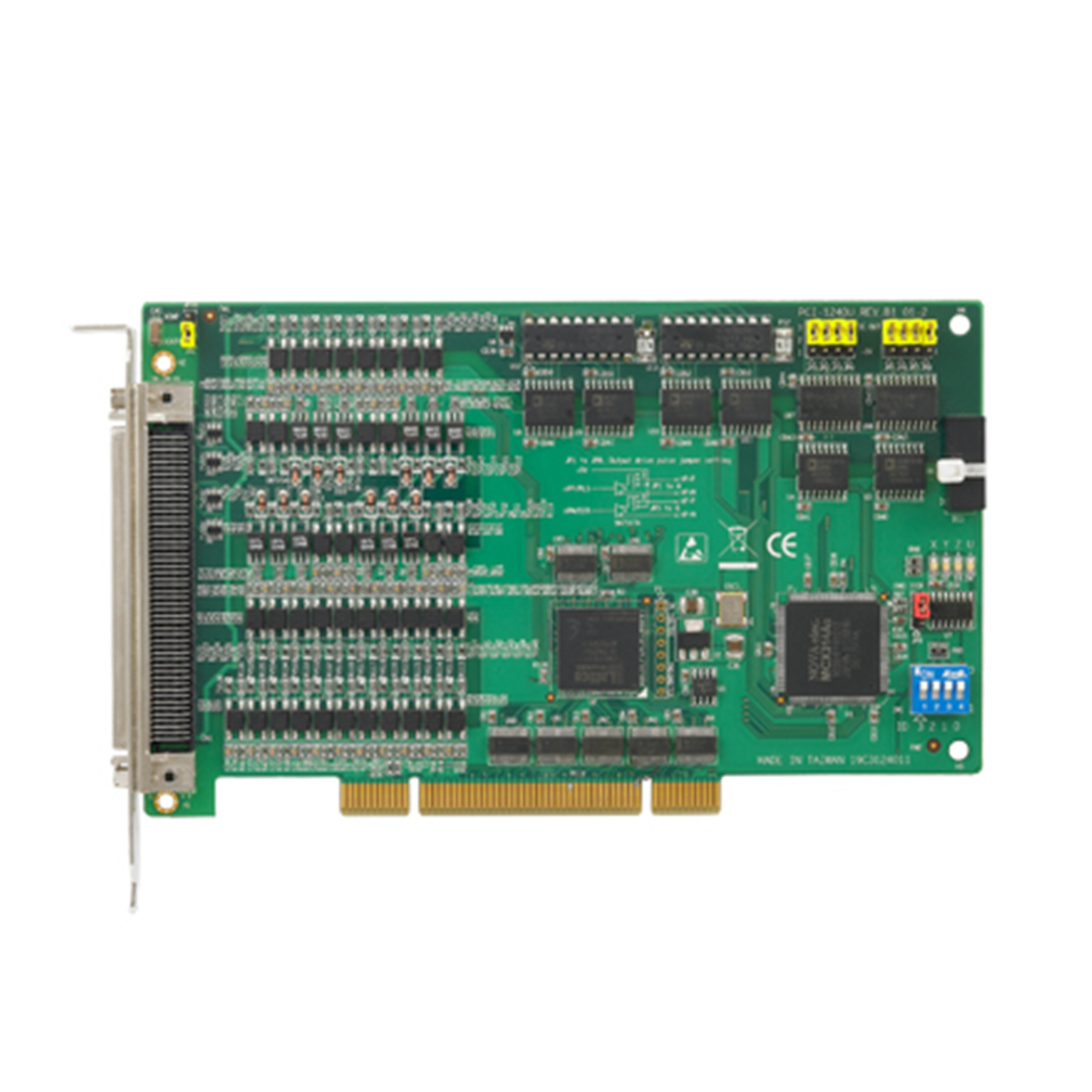

Advantech PCI-1240U-B2E 4-axis Stepping and Servo Motor Control Universal PCI Card

PB Tech price
PB Tech price
$ 1,410 .48
 +GST
$ 1,551 .53
 inc GST
$1,410.48  +GST
$1,551.53

Advantech PCI-1240U-B2E 4-axis Stepping and Servo Motor Control Universal PCI Card

  • Brand: Advantech
  • MPN: PCI-1240U-B2E
  • Part #: IPCAVH220958
  • UPC:
PB Tech price
$ 1,410 .48 $ 1,551 .53
 +GST  inc GST


Delivery: Order now and it ships on 24 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$1,410.48  +GST
$1,551.53

Features

4-axis Stepping and Servo Motor Control Universal PCI Card

- Independent 4-axis motion control
- Hand wheel and jog function
- 2/3-axis linear interpolation function
- 2-axis circular interpolation function
- Continuous interpolation function
- Programmable T/S-curve acceleration/deceleration rate
- Up to 4 MPPS output for each axis
- Two pulse output types: CW/CCW or Pulse/Direction
- Up to 1 MHz encoder input for each axis
- Two encoder pulse input types: A/B phase or Up/Down
- Constant speed control
- Position management and software limit switch function
- BoardID™ switch

Specifications

Counter/Encoder Input

Counting Range

32-bit

Encoder Type and Interface

Counts per Enc. Cycle

x1, x2, x4 (A/B phase only)

Input Range

0~1 VDC for low; 3.5~5 VDC for high

Input Type

Quadrature (x1, x2, x4 A/B phase) or CW/CCW

Max. Input Frequency

4 MHz under x4 A/B phase mode

Frequency

Signal Input

Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC

General

Connectors

1 x 100-pin SCSI female connector

Humidity (Operating)

5~95% RH (non-condensing)

Humidity (Storage)

5~95% RH (non-condensing)

Local I/O

General Input Signal

Input voltage: 24 VDC Max.
Input delay: 100 us Max. (isolation delay)
Signal:
EMG (emergency stop)
ORG, LMT+, LMT-
INPOS (in position signal)
LTC (counter latch)
RDY (servo ready)
ALARM (servo alarm)

General Output Signal

Output voltage: Open collect 24 VDC Max
Output delay: 100 us Max. (isolation delay)
Sink current: 100 mA per channel
Signal:
CMP (position compare in range output)
SVON (servo on)
RALM (reset driver alarm)
ERC (counter clear signal)

Pulse Type Motion Control

Interpolation

2-axis linear, 3-axis linear, 2-axis circular

Max. Output Speed

4 Mbps

Motor Driver Support

Pulse-type servo/stepping

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Step Count Range

±2, 147, 483, 646

Velocity Profiles

T-Curve, S-Curve

Manufacturer Part No:
PCI-1240U-B2E
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220958
Product Model:
PCI-1240U-B2E
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
