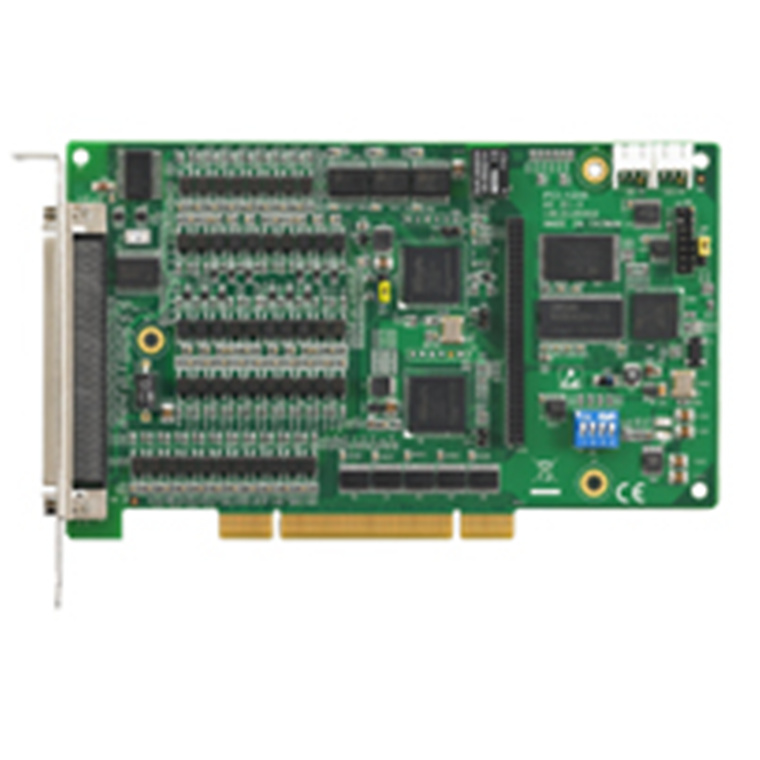

Advantech PCI-1245-AE Full DSP-based 4-Axis Motion Control Universal PCI Card

PB Tech price

$ 1,450 .74

+GST

$ 1,595 .81

inc GST

Advantech PCI-1245-AE Full DSP-based 4-Axis Motion Control Universal PCI Card

Brand: Advantech
MPN: PCI-1245-AE
Part #: IPCAVH220959
UPC:

PB Tech price

$ 1,595 .81

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 07 Oct

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCI-1245-AE
Part #: IPCAVH220959
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
- Pulse output up to 5 Mpps
- Memory buffer (up to 10K points) for trajectory planning which is designed in DSP
- Supports E-Gear, and helical interpolation
- Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
- Hardware emergency input
- Watchdog timer
- Position latch
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
- Programmable interrupt
- Supports gantry mode by semi-closed loop pulse train control
- RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes

For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1245/file/PCI-1245_1285_DS(050924)20240509142628.pdf

Specifications

Pulse Type Motion Control

Motor Driver Support

Pulse-type servo/stepping

Number of Axes

PCI-1245: 4

Interpolation

Linear, 2/3-axis circular interpolation, 3-axis helical interpolation

Max. Output Speed

5 Mpps

Step Count Range

±2, 147, 483, 646

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Position Counters

Range of command and actual position

Velocity Profiles

T-Curve, S-Curve

Local I/O

Machine Interfaces
LMT+, LMT-, ORG
Servo Driver Interfaces
ALM, INP
Position Compare I/O
CMP
General Digital I/O
PCI-1245:16-ch DI, 16-ch DO (RDY/LTC pin can be switchable to general-purpose input and CAM-DO/ CMP/SVON/ ERC pin to general-purpose output)

Encoder Interface

Input Type

Quadrature (A/B phase) or up/down

Counts per Enc. Cycle

x1, x2, x4 (A/B phase only)

Input Range

0~10V

Isolation Protection

2,500 VDC

Max. Input Frequency

10 MHz under 4xAB mode

General

Bus Type

Universal PCI V2.2

Connectors

PCI-1245: 1 x 100-pin SCSI female connector

Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Power Consumption

PCI-1245:
Typical: 5 V @ 850 mA
Max.: 5 V @ 1 A

Humidity

5 ~ 95% RH, non-condensing (IEC 60068-2-3)

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Storage Temperature

-20 ~ 85°C (-4 ~ 185°F)

Manufacturer Part No:

PCI-1245-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220959

Product Model:

PCI-1245-AE

Warranty: 12 months *
