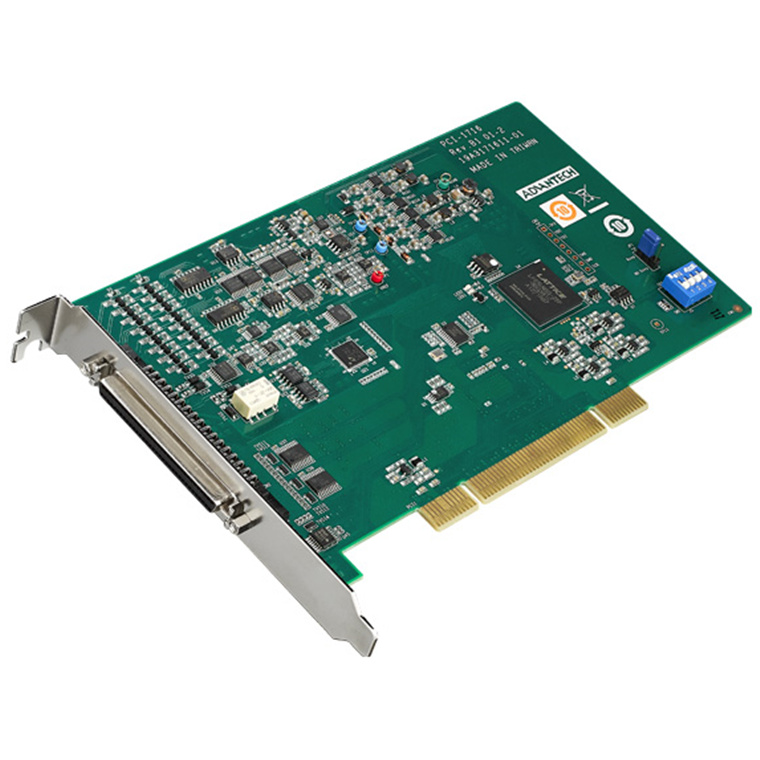

Advantech PCI-1716-BE 500 kS/s, 16-bit, 16-ch Multifunction PCI Card
Advantech PCI-1716-BE 500 kS/s, 16-bit, 16-ch Multifunction PCI Card
- Brand: Advantech
- MPN: PCI-1716-BE
- Part #: IPCAVH220993
- UPC:
View all shipping info
- Brand: Advantech
- MPN: PCI-1716-BE
- Part #: IPCAVH220993
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech PCI-1716-BE 500 kS/s, 16-bit, 16-ch Multifunction PCI Card
- Brand: Advantech
- MPN: PCI-1716-BE
- Part #: IPCAVH220993

Product URL: https://www.pbtech.com/au/product/IPCAVH220993/Advantech-PCI-1716-BE-500-kSs-16-bit-16-ch-Multifu
Features
Advantech PCI-1716-BE 500 kS/s, 16-bit, 16-ch Multifunction PCI Card
- 16 single-ended or 8 differential or a combination of analog inputs
- 16-bit A/D converter, with up to 500 kHz sampling rate
- FIFO memory (8,192 samples)
- 2analog output channels
- 16-ch digital input and 16-ch digital output
- Auto-calibration
- BoardID™ switch
For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1716/file/PCI-1716_L_H_DS(092922)20220930103254.pdf
Specifications
Analog Input
Channels
16
Input Range
±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Resolution(Bits)
16-bit
Sampling Rates(S/s)
500 KS/s (sum)
Analog Output
Channels
2
Output Ranges
0~5 V, 0~10 V, ±5 V, ±10 V
Resolution
16-bit
Update Rate(S/s)
1 MS/s
Counter/Encoder Input
Channels
1
Counting Range
16-bit
Digital Input
Channels
16 (TTL)
Digital Output
Channels
16 (TTL)
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
