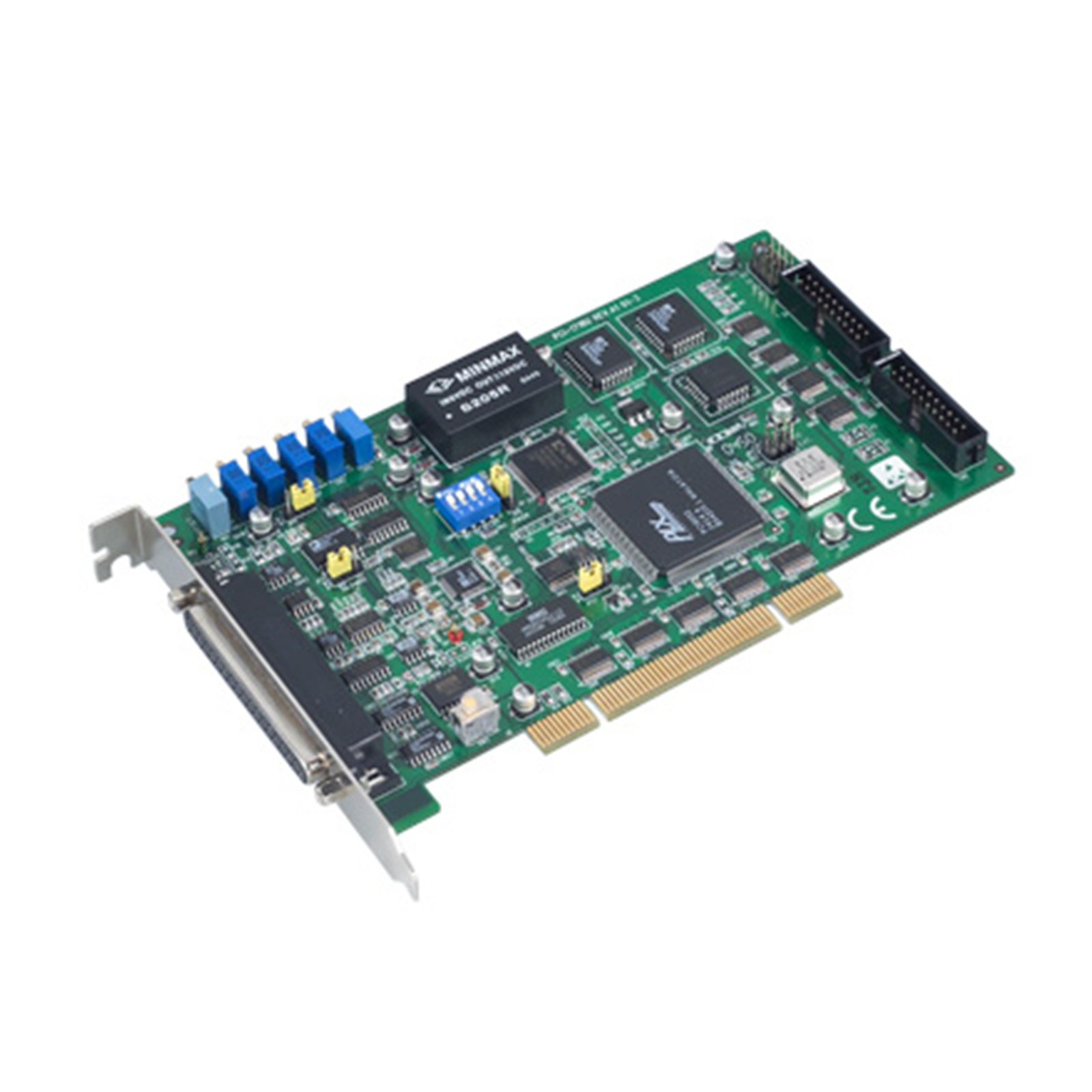

Advantech PCI-1718HDU-AE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

PB Tech price

$ 840 .35

+GST

$ 924 .38

inc GST

Advantech PCI-1718HDU-AE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

Brand: Advantech
MPN: PCI-1718HDU-AE
Part #: IPCAVH220996
UPC:

PB Tech price

$ 924 .38

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 29 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCI-1718HDU-AE
Part #: IPCAVH220996
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

- One 12-bit analog output channel
- 16-ch single-ended or 8-ch differential analog input
- 12-bit A/D converter, with up to 100 kHz sampling rate
- 16-ch digital input and 16-ch digital output
- Automatic channel/gain scanning
- Onboard FIFO memory (1,024 samples)
- ISA-Compatible with PCL-818HD
- Programmable gain
- Universal PCI bus (support 3.3 V or 5 V PCI bus signal)
- BoardID™ switch

Specifications

Analog Input

?Channels

16 single-ended/8 differential (software programmable)

?Resolution

12 bits

?Max. Sampling Rate

100 kS/s

?FIFO Size

1,024 samples

?Overvoltage Protection

30 Vp-p

Input Impedance

100 M?

?Sampling Modes

Software, onboard or external programmable pacer

Analog Output

?Channels

?Resolution

12 bits

?Output Rate

Static update

?Output Range

(V, software programmable)

Slew Rate

10 V/µs

Driving Capability

10 mA

?Output Impedance

0.1 W max.

Operation Mode

Software polling

Accuracy

INLE: ±1LSB

Digital Input

?Channels

?Compatibility

5 V/TTL

?Input Voltage

Logic 0: 0.8 V max., Logic 1: 2 V min.

Digital Output

?Channels

?Compatibility

5 V/TTL

?Output Voltage

Logic 0: 0.8 V max.
Logic 1: 2.0 V min.

?Output Capability

Sink: 8.0 mA @ 0.8 V
Source: -0.4 mA @ 2.0 V

Counter/Timer

?Channels

?Resolution

16 bits

?Compatibility

5 V/TTL

?Max. Input Frequency

10 MHz

?Reference Clock

Internal: 10 MHz
External Clock Frequency: 10 MHz

General

?Bus Type

Universal PCI V2.2

I/O Connector

1 x DB37 female connector
2 x 20-pin box header

?Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Power Consumption

Typical: 5 V @ 850 mA
Max.: 5 V @ 1 A

?Operating Temperature

0 ~ 60 °C (32 ~ 140 °F)

?Storage Temperature

-20 ~ 70 °C (-4 ~ 158 °F)

?Operating Humidity

5 ~ 85% RH non-condensing (refer to IEC 68-1, -2, -3)

?Storage Humidity

5 ~ 95% RH non-condensing (refer to IEC 68-1, -2, -3)

Manufacturer Part No:

PCI-1718HDU-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220996

Product Model:

PCI-1718HDU-AE

Warranty: 12 months *
