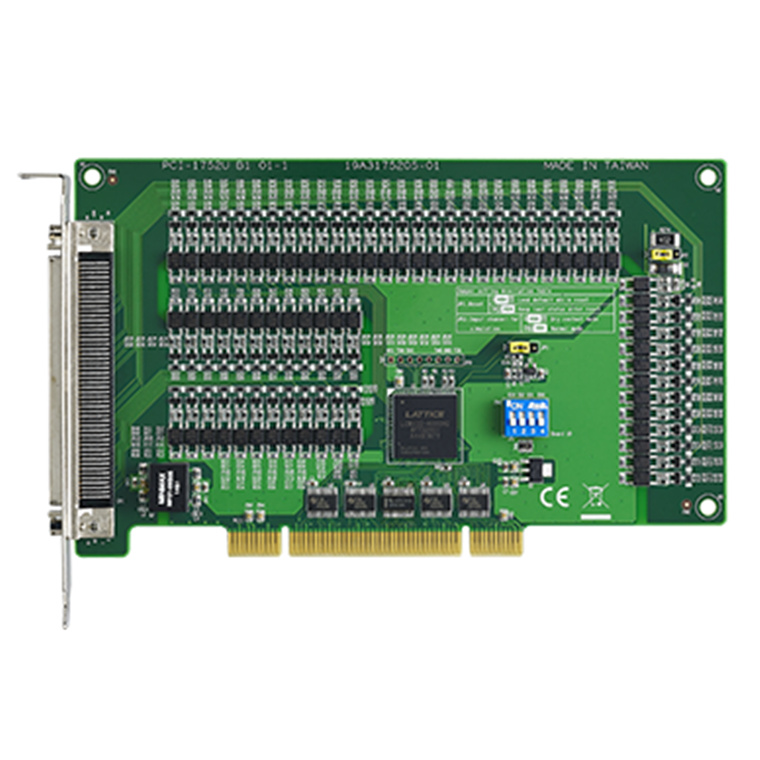

Advantech PCI-1752USO-BE 64-ch Isolated Source Type (PNP) Digital Output Universal PCI Card
- Brand: Advantech
- MPN: PCI-1752USO-BE
- Part #: IPCAVH221030

Product URL: https://www.pbtech.com/au/product/IPCAVH221030/Advantech-PCI-1752USO-BE-64-ch-Isolated-Source-Typ
Features
- 64-ch Sink Type (NPN) Isolated Digital Output Module (PCI-1752U Only)
- 64-ch Source Type (PNP) Isolated Digital Output Module (PCI-1752USO Only)
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High-sink/source current on isolated output channels (200 mA max./channel)
- Output status readback
- Keeps the output settings and values after system hot reset
- Channel-freeze function
- High-density 100-pin SCSI connector
For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1752U/file/PCI-1752U_USO_DS(102622)20221026155245.pdf
Specifications
MPN
PCI-1752USO-BE
64ch Source(PNP) Type Isolated Digital Output Card
Isolated Digital Output
Channels
64 (16-ch/group)
Output Type
Source (PNP)
Isolation Protection
2,500 VDC
Output Voltage
5 ~ 40 VDC
Sink/ Source Current
200 mA max./channel
Opto-isolator Response
100 µs
General
Bus Type Universal
PCI V2.2
I/O Connectors
1 x 100-pin SCSI female connector
Dimensions (L x H)
175 x 100mm (6.9" x 3.9")
Power Consumption
Typical: 5 V @ 230 mA
Max.: 5 V @ 500 mA
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Storage Humidity
5 ~ 95%, RH non-condensing
