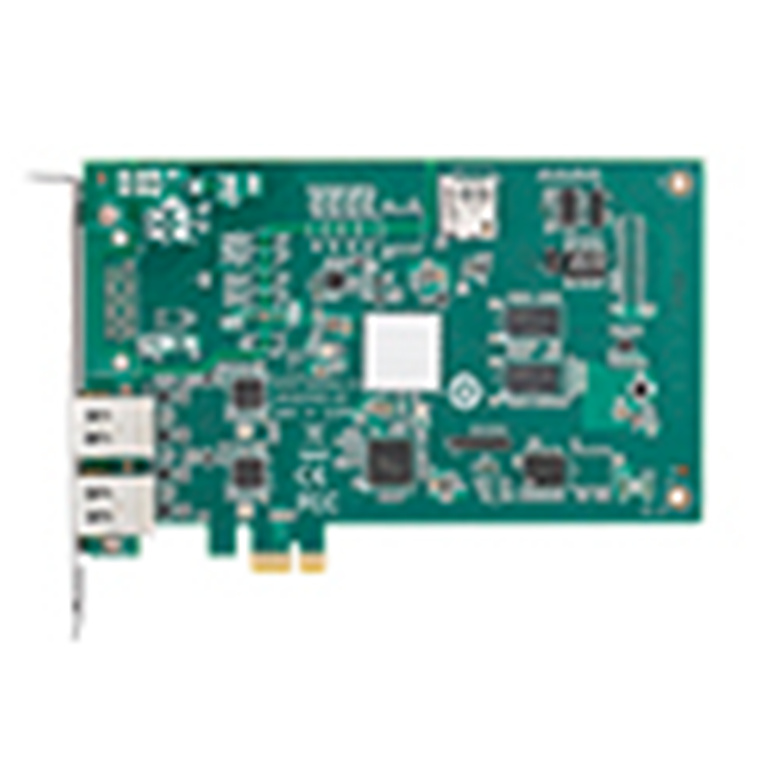

Advantech PCIE-1203L-64AE Light 64-Axis EtherCAT PCIE MDevice Card
Advantech PCIE-1203L-64AE Light 64-Axis EtherCAT PCIE MDevice Card
- Brand: Advantech
- MPN: PCIE-1203L-64AE
- Part #: IPCAVH221057
- UPC:
View all shipping info
- Brand: Advantech
- MPN: PCIE-1203L-64AE
- Part #: IPCAVH221057
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech PCIE-1203L-64AE Light 64-Axis EtherCAT PCIE MDevice Card
- Brand: Advantech
- MPN: PCIE-1203L-64AE
- Part #: IPCAVH221057

Product URL: https://www.pbtech.com/au/product/IPCAVH221057/Advantech-PCIE-1203L-64AE-Light-64-Axis-EtherCAT-P
Features
- 667MHz dual-core ARM processor
- 2 x EtherCAT ports for high-performance of Motion and I/O applications
- Supports common motion SDK for rapid application development
- Up to 64 axes support for motion control
- Supports point to point move
- Supports 2 axis Linear interpolation
- Supports programmable acceleration/deceleration rate
- Programmable interrupt
- RDY dedicated input channels & SVON/ERC dedicated output channels are switchable for general input and output purposes
- Diagnostics for fast error handling can trace command and error message
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1203L/file/PCIE-1203L_DS(2024041520240415150800.pdf
Specifications
MPN
PCIE-1203L-64AE
Basic 64-Axis EtherCAT PCIE MDevice Card
EtherCAT
Number of Rings
2 (Motion x 1, I/O x 1)
Cable Type
CAT5 UTP/STP Ethernet cable and above
Cycle Time
Motion: up to 500us
I/O: 200 us
Communication Motion Slave
64 Servo Drive Max.
Communication IO Slave
1024-CH DI and 1024-CH DO
128-CH AI and 128-CH AO
General
Bus Type
PCI Express
Certification
CE, FCC Class A
Connectors
2 x RJ45
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
5 VDC @ 0.5 A typical
Humidity
5 ~ 95% RH, non-condensing (IEC 60068-2-3)
Operating Temp.
0 ~ 60°C (32 ~ 140°F)
Storage Temp.
-20 ~ 85°C (-4 ~ 185°F)
