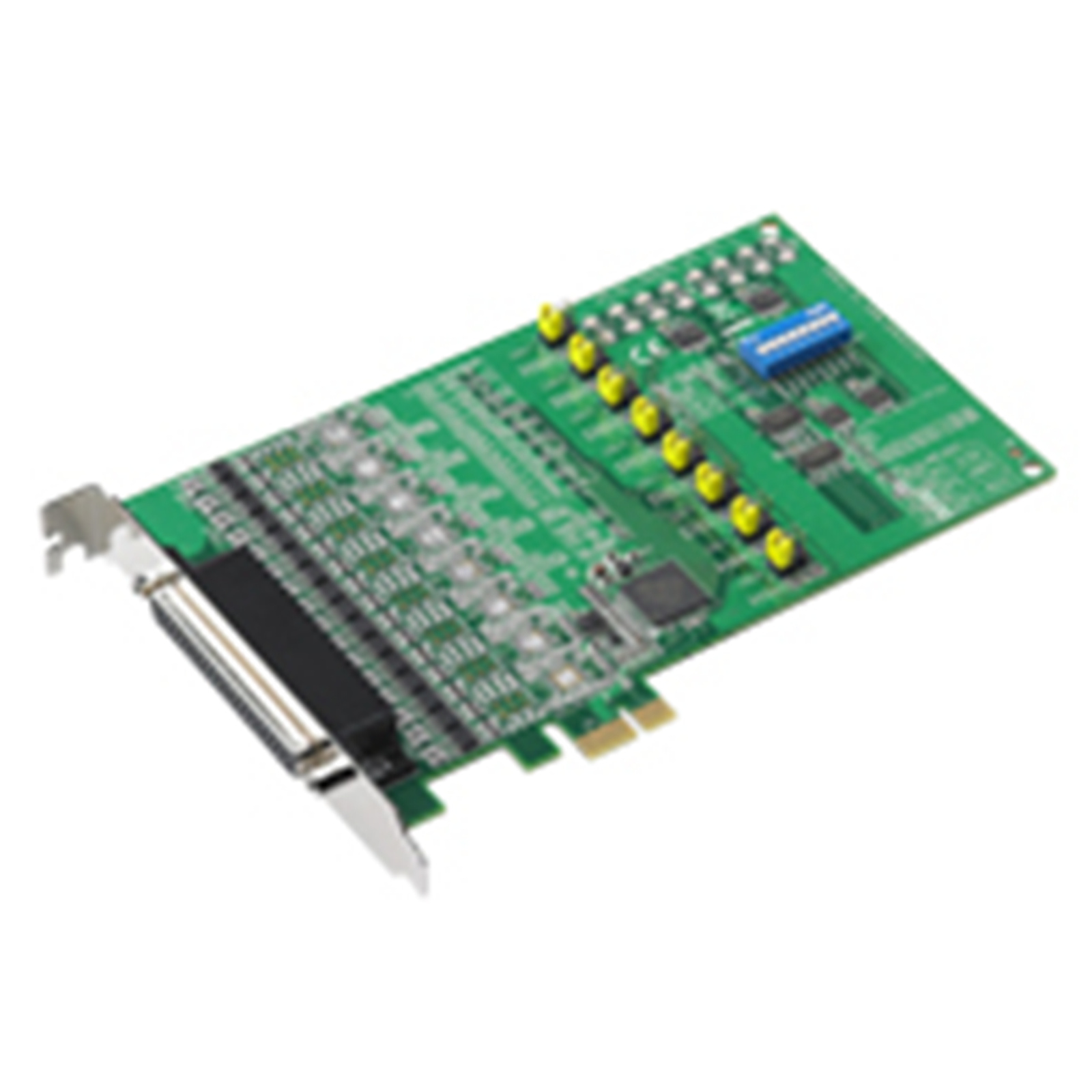

Advantech PCIE-1620A-BE 8-port RS-232 PCIe Communication Card
- Brand: Advantech
- MPN: PCIE-1620A-BE
- Part #: IPCAVH221066

Product URL: https://www.pbtech.com/au/product/IPCAVH221066/Advantech-PCIE-1620A-BE-8-port-RS-232-PCIe-Communi
Features
8-port RS-232 PCIe Communication Card
- PCI Express bus 2.0 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- 8x RS-232 ports
- XR17V358 UART with 256-byte FIFOs
Specifications
MPN
PCIE-1620A
ESD Protection
15KV (air),8KV (contact)
EFT Protection
1000 V
Surge Protection
-
Isolation Protection
-
Bus Type
PCI Express bus 2.0 compliant
Bus Interface
PCI Express x1
Certification
CE, FCC class A
Connectors
1 x DB62, female (PCIE-1620A/22A/22B)
Dimensions (L x H)
168 x 111 mm (6.6" x 4.4")
Power Consumption
260 mA @ +3.3 V (typ.)
Comm. Controller
XR17V358
Data Bits
5, 6, 7, 8
Data Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD (PCIE- 1620A/22B) TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI (PCIE-1622C) RS-422: Tx+, Tx-, Rx+, Rx- (PCIE-1620A/22A/22B) CTS+, CTS-, RTS+, RTS-, Tx+, Tx-, Rx+, Rx- (PCIE- 1622C) RS-485: Data+, Data- (PCIE-1622)
FIFO
256 bytes
Flow Control
DTR/DSR, RTS/CTS, Xon/Xoff
Parity
None, Odd, Even, Mark, or Space
Speed
50 bps ~ 921.6 kbps
Stop Bits
1, 1.5, 2
Bundled Software
ICOM tools
OS Support
Windows XP/7/8/10 and Linux (check the software release note for versions supported)
Operating Humidity
5 ~ 95% RH, non-condensing
Operating Temperature
-10 ~ 60 °C (14 ~ 140 °F)
Storage Temperature
-25 ~ 85 °C (-13 ~ 185 °F)
