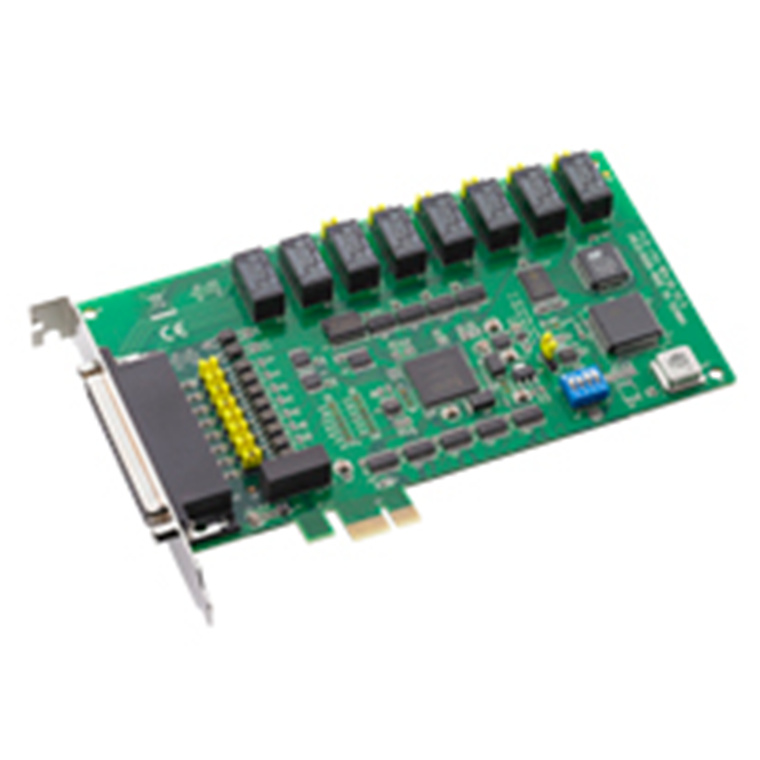

Advantech PCIE-1760-B 8-ch Relay & 8-ch IDI Universal PCIE Card

PB Tech price

$ 307 .11

+GST

$ 337 .82

inc GST

Advantech PCIE-1760-B 8-ch Relay & 8-ch IDI Universal PCIE Card

Brand: Advantech
MPN: PCIE-1760-B
Part #: IPCAVH221089
UPC:

PB Tech price

$ 337 .82

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCIE-1760-B
Part #: IPCAVH221089
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 8 opto-isolated digital input channels with counter/timer function
- 8 relay actuator output channels
- 2 opto-isolated Counter I/O (PWM, Event Counting, Frequency Measurement and Timer/Pulse)
- LED indicators to show activated relays
- Jumper-selectable dry/wet-contact input signals
- Up event counters for DI
- Programmable digital filter function for DI
- Pattern match interrupt function for DI
- Change-of-state interrupt function for DI
- Board ID switch

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1760/file/PCIE-1760_DS(090823)20230911143240.pdf

Specifications

MPN

PCIE-1760-B
8-ch relay/IDI PCIe card w/ counter/timer

Isolated Digital Input

Channels

Input Voltage

Logic 0: 3.0V max.
Logic 1: 10V min. (30V max.)

Interruptible Channels

Isolation Protection

2,500 VDC

Opto-Isolator Response

100 µs max.

Input Debounce Filter

1 µs ~ 255 µs, software configurable

Counter/Timer

Channels

Resolution

32 bits

Compatibility

Sink(NPN): 5-40VDC
Source: 5V/TTL

Input Frequency*

1KHz Max.
* Input for event counting, frequency measurement, refer to user manual for more details

Isolation Protection

2,500 VDC

Input Debounce Filter

1 µs ~ 255 µs, high/low period set independently, software configurable

Relay Output

Channels

Relay Type

Form C x 2, form A/B x 6, selected by jumpers

Contact Rating

125VAC @ 0.5A, 30VDC @ 1A
62.5VA, 30W

Operate/Release Time

5 / 3.5 ms max

Resistance

<100mO initially

Life Expectancy (Electrical)

30 VDC @ 1A, 125 VAC @ 1 A: 3 x 10⁵operations min.,
30 VDC @ 1 A, 125 VAC @ 0.5 A: 10⁶operations min.

General

Bus Type

PCI Express x1, V1.0

I/O Connectors

1 x DB37, female

Dimensions (L x W x H)

175 x 100 x 18 mm (6.9" x 3.9" x 0.7")

Power Consumption

+3.3 V: 150 mA typ., 750 mA max.
+12 V: 40 mA typ., 80 mA max.

Operating Temperature

0 ~ 60 °C (32 ~ 140 °F)

Storage Temperature

-20 ~ 70 °C (-4 ~ 158 °F)

Storage Humidity

5 ~ 95% RH, non-condensing

Manufacturer Part No:

PCIE-1760-B

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221089

Product Model:

PCIE-1760-B

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
