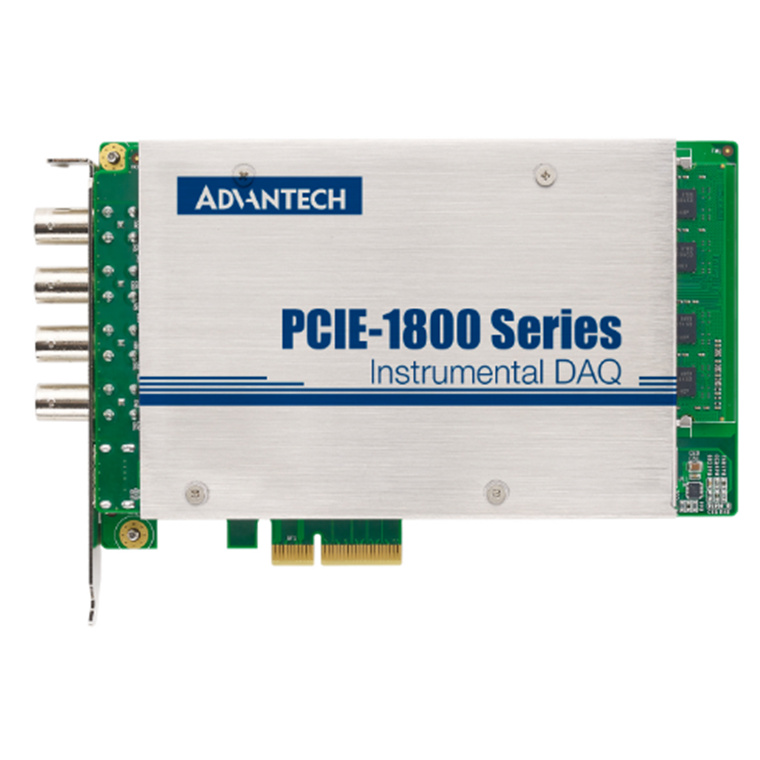

Advantech PCIE-1840L-AE 80 MS/S, 16-bit, 4-ch Simultaneous Digitizer
- Brand: Advantech
- MPN: PCIE-1840L-AE
- Part #: IPCAVH221106

Product URL: https://www.pbtech.com/au/product/IPCAVH221106/Advantech-PCIE-1840L-AE-80-MSS-16-bit-4-ch-Simulta
Features
- 4 simultaneous analog inputs, up to 125MHz, 16-bit resolution
- 500MHz Time Interleaved Sampling
- Non-stop data streaming capable
- 2 GB on-board memory
- 1M or 50 Ohm selectable input impedance
- On-Board tunable anti-aliasing filter
- AC/DC Coupling
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1840/Product%20-%20Datasheet/PCIE-184020180910101845.pdf
Specifications
MPN
PCIE-1840L-AE
4-ch, 16-bit, 80 MS/s digitizer
Analog Input
Channels
4
Input Range
±0.1 V, ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V, ±10 V
Resolution(Bits)
16-bit
Sampling Rates(S/s)
80 MS/s (per channel)
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
