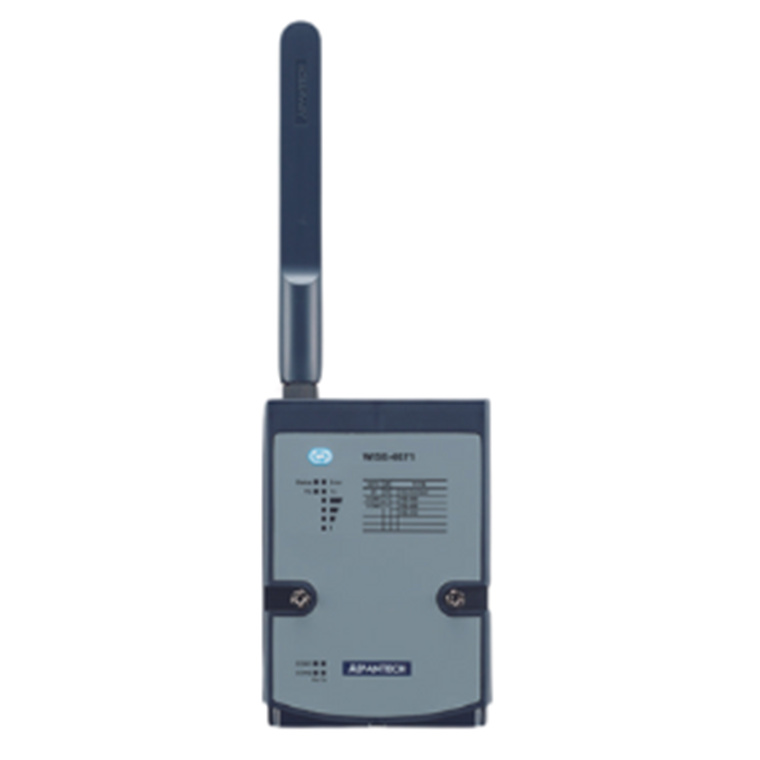

Advantech WISE-4671-UA Advanced NB-IoT/LTE-M IoT Wireless Modular I/O
Advantech WISE-4671-UA Advanced NB-IoT/LTE-M IoT Wireless Modular I/O
- Brand: Advantech
- MPN: WISE-4671-UA
- Part #: IPCAVH221226
- UPC:
View all shipping info
- Brand: Advantech
- MPN: WISE-4671-UA
- Part #: IPCAVH221226
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech WISE-4671-UA Advanced NB-IoT/LTE-M IoT Wireless Modular I/O
- Brand: Advantech
- MPN: WISE-4671-UA
- Part #: IPCAVH221226

Product URL: https://www.pbtech.com/au/product/IPCAVH221226/Advantech-WISE-4671-UA-Advanced-NB-IoTLTE-M-IoT-Wi
Features
NB-IoT and LTE Cat M1 are new wireless technologies included in the 5G evolution of cellular technology standards defined by the 3rd Generation Partnership Project (3GPP). NB-IoT and LTE Cat M1 feature low power consumption and utilize LTE networks based on licensed spectrum bands. These technologies are optimized for connectivity to machines, assets and sensors in order to enable IoT applications such as smart cities, smart agriculture and remote asset management.
WISE-4671 series is a cellular based IoT wireless sensor node compliant with LTE Cat. NB1 and Cat. M1 with external for flexible installation. In addition to offering various I/O types, WISE-4671 series provides a data logger and direct cloud connectivity so that data can be published to the cloud by messaging protocol such as MQTT, CoAP, LwM2M with secure socket supported.
- Global coverage of NB-IoT and LTE-M band w/ external detachable antenna
- 3GPP release 13 Cat. NB1/Cat. M1
- Application-ready I/O combination with optional M12 connectors, IP65
- Support MQTT, CoAP & LwM2M protocol with direct cloud service
- GNSS & solar panel rechargeable battery inside
For more information: https://advdownload.advantech.com/productfile/PIS/WISE-4671/file/WISE-4671_DS(053124)20240531172734.pdf
Specifications
Environment
Ingress Protection
IP65
Operating Temperature
-25~70 °C (-13~158 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Expansion Function
SIM card slot
Nano SIM card
General
Connectors
1 x M12 4-pin code-A male, 2 x M12 8-pin code-A female
Hardware
Certification
CE, FCC Class A, PTCRB, AT&T, Verizon
LED Indicators
Status, Error, Tx, Rx, Signal Level, Battery Level
Power Consumption
1.4 W @ 12 VDC
Power Input
10~50 VDC, 17~21 VDC Solar Panel
I/O Interface
USB Ports
1 x Micro-B USB
Mechanical
Dimension (W x H x D)
82 x 122 x 49 mm
Weight (Net)
0.5 kg
Power Requirements
Input Voltage
10~50 VDC, 17~21 VDC Solar Panel
Wireless Communication
Frequency Band
LTE Band 2, 3, 4, 5, 8, 12, 13, 20, 28
Standard (Technology)
NBIoT, LTE-M
