Advantech PPC-115W-PK92AB 15.6"FHD PPC w/RK3399,4GBDDR,32GBEMMC,An
- Brand: Advantech
- MPN: PPC-115W-PK92AB
- Part #: IPCAVH221253

Product URL: https://www.pbtech.com/au/product/IPCAVH221253/Advantech-PPC-115W-PK92AB-156FHD-PPC-wRK33994GBDDR
Features

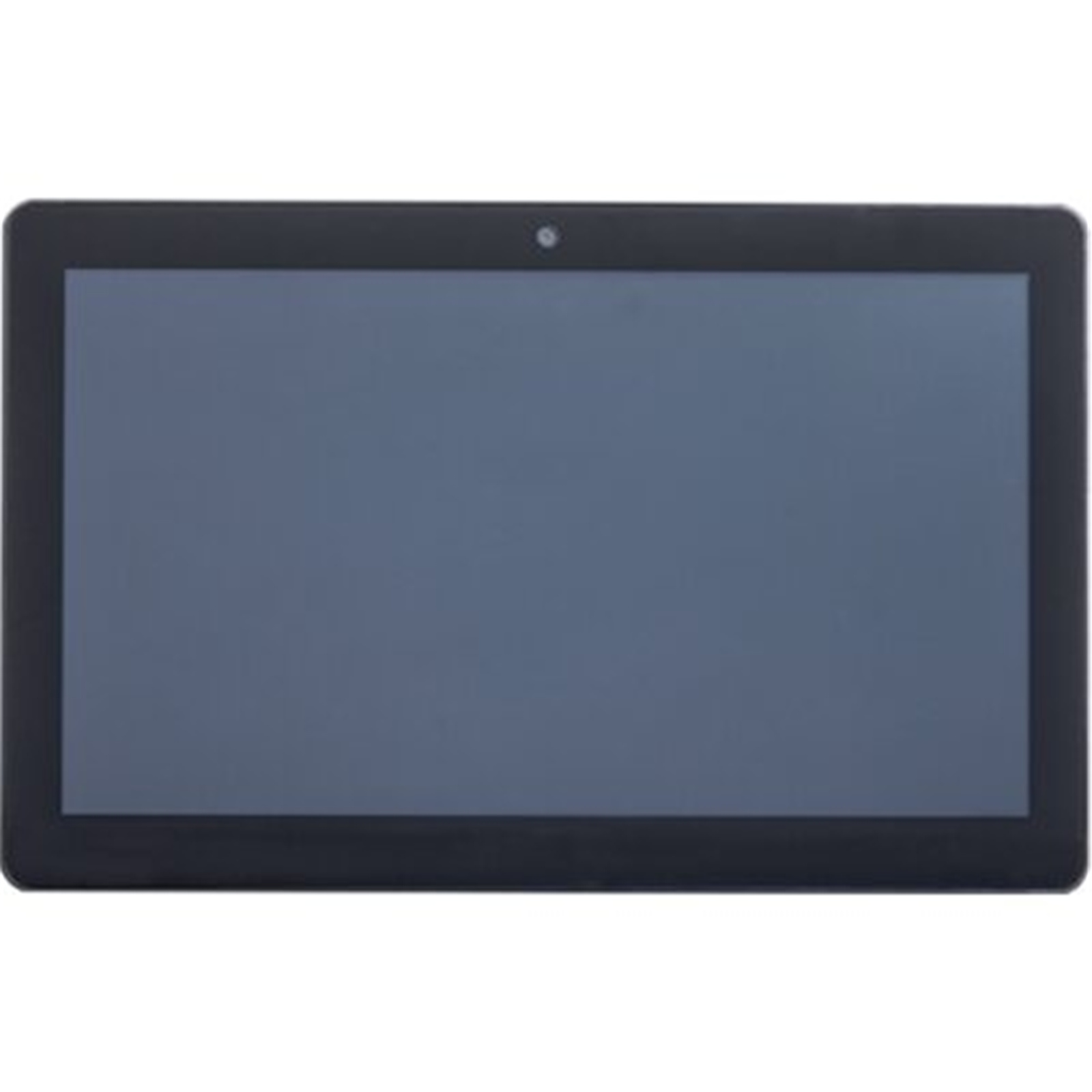

15.6" All-in-One Panel PC with Rockchip 3399 processor
- True flat wide display screen with Pcap multi-touch.
- Embedded Rockchip RK3399 processor, Dual-core Cortex-A72 up to 1.8GHz
- Onboard 4GB LPDDR4-1333 memory, 32GB eMMC NAND Flash
- IP65 rated front panel protection
- Supports VESA 100 and panel mounting(optional)
- Supports Android and Debian
Specifications
Environment
Ingress Protection
Front Panel IP65
Operating Temperature
0~50 °C (32~122 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
0.5 Grms, random
Hardware
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
CPU
Rockchip ARM® RK3399
Dual-core Cortex-A72 and Quad-core Cortex-A53
Expansion
1 x M.2 E Key 2230
I/O
1 x USB 2.0, 1 x USB 3.0, 1 x Mirco USB OTG, 1 x RS-232, 5 x GPIO
LAN
1 x 10/100/1000 Mbps
Memory
1 x LPDDR4 with 4 GB
OS Support
Android, Linux
Power Consumption
12 W @ 12 VDC
Power Input
12 VDC
I/O Interface
Power Connector
1 x DC Jack
Serial Ports
1 x RS-232
LCD Display
Backlight Life (hrs)
15,000
Display Size
15.6"
Luminance (cd/m2)
800
Max. Resolution
1920 x 1080
Viewing Angle (H/V°)
170/170
Mechanical
Dimension (W x H x D)
402 x 260 x 53 mm
Enclosure
PC+ABS, SECC
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
2.6 kg (5.3 lb)
Touchscreen
Touch Type
PCAP
USB Vision
Connector
1 x USB 2.0 Type A, 1 x USB 3.0 Type A
