Advantech PPC-3060S-PN80B 7" PPC w/Intel N2807, Pcap
- Brand: Advantech
- MPN: PPC-3060S-PN80B
- Part #: IPCAVH221256

Product URL: https://www.pbtech.com/au/product/IPCAVH221256/Advantech-PPC-3060S-PN80B-7-PPC-wIntel-N2807-Pcap
Features

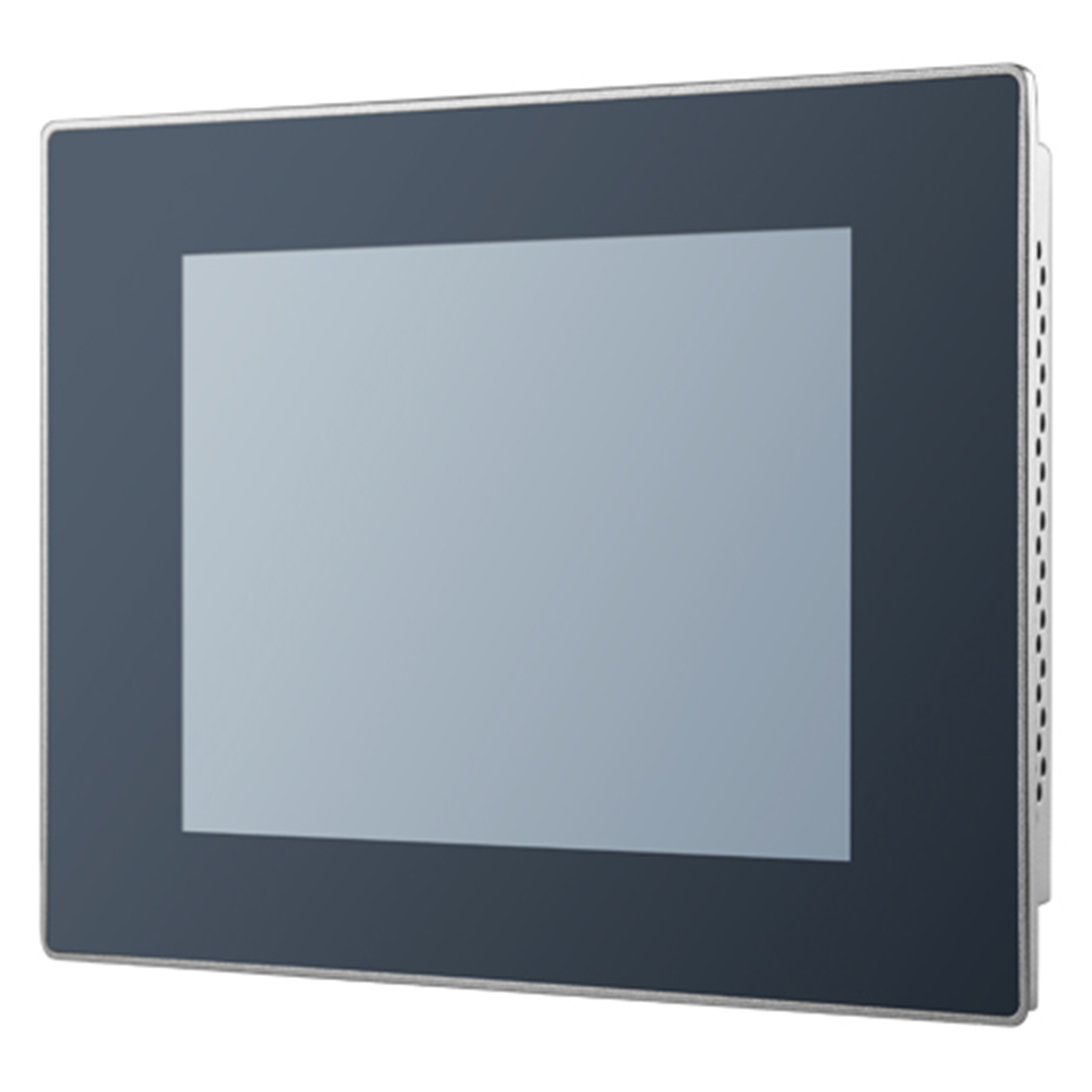

6.5"/7" Fanless Panel PC with Intel® Celeron® N2807 Processor
- Industrial 6.5"/7" TFT VGA LCD (LED Backlight)
- Durable 5-wire resistive/multi-touch projected
- Embedded Intel Celeron® processor, dual core N2807 1.58 GHz on board
- Up to 4 GB DDR3L SDRAM
- Compact Fanless Design
- True-flat with IP65 certified front panel protection
- Supports Full-size Mini PCIe Expansion

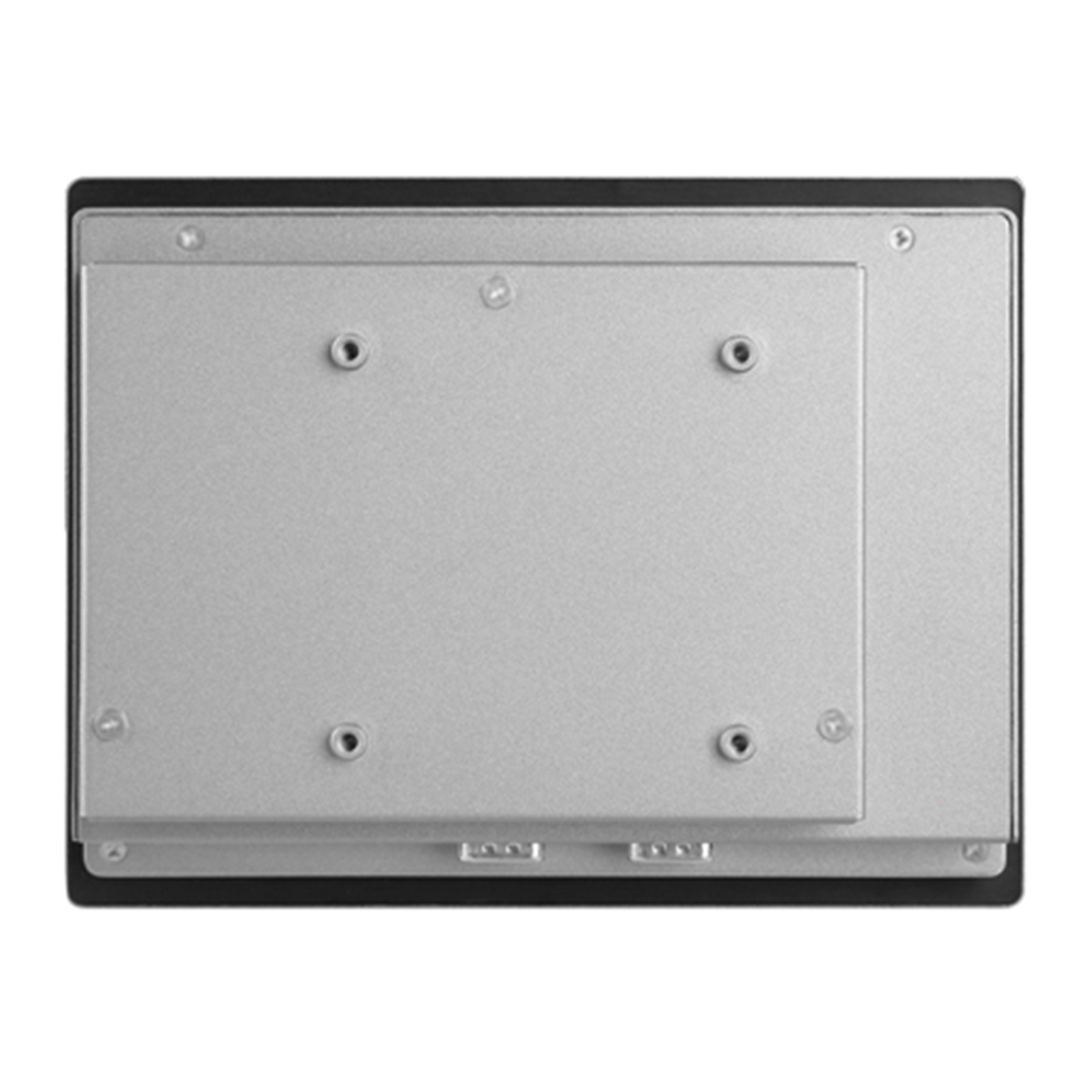

- Supports VESA 75 x 75 mounting holes
Specifications
Environment
Ingress Protection
Front Panel IP65
Operating Temperature
0~50 °C (32~122 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-30~60 °C (-22~140 °F)
Vibration Protection
2 Grms, random
Hardware
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
CPU
Intel® Celeron® N2807 1.58GHz Dual-Core
Ethernet
Realtek® 8119i GbE
Expansion
1 x Full-size mPCIe slot
I/O
1 x RS-232, 1 x RS-232/422/485, 1 x USB 2.0, 1 x USB 3.0
LAN
2 x 10/100/1000 Mbps
Memory
1 x DDR3L SO-DIMM Slot
OS Support
Microsoft® Windows 7, Microsoft® Windows 10 LTSC, Linux
Power Consumption
11 W @ 19 VDC
Power Input
12~24 VDC
I/O Interface
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
1 x RS-232, 1 x RS-232/422/485
LCD Display
Backlight Life (hrs)
50,000
Display Size
7"
Luminance (cd/m2)
425
Max. Resolution
1024 x 600
Viewing Angle (H/V°)
170/170
Mechanical
Dimension (W x H x D)
198 x 151 x 41 mm
Enclosure
Die-cast aluminum alloy
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
1.5 kg (3.30 lb)
Touchscreen
Touch Type
PCAP
USB Vision
Connector
1 x USB 2.0 Type A, 1 x USB 3.0 Type A
