Advantech PPC-3100S-PC 10.4" PPC w/Intel N2930, Pcap
- Brand: Advantech
- MPN: PPC-3100S-PC
- Part #: IPCAVH221259

Product URL: https://www.pbtech.com/au/product/IPCAVH221259/Advantech-PPC-3100S-PC-104-PPC-wIntel-N2930-Pcap
Features

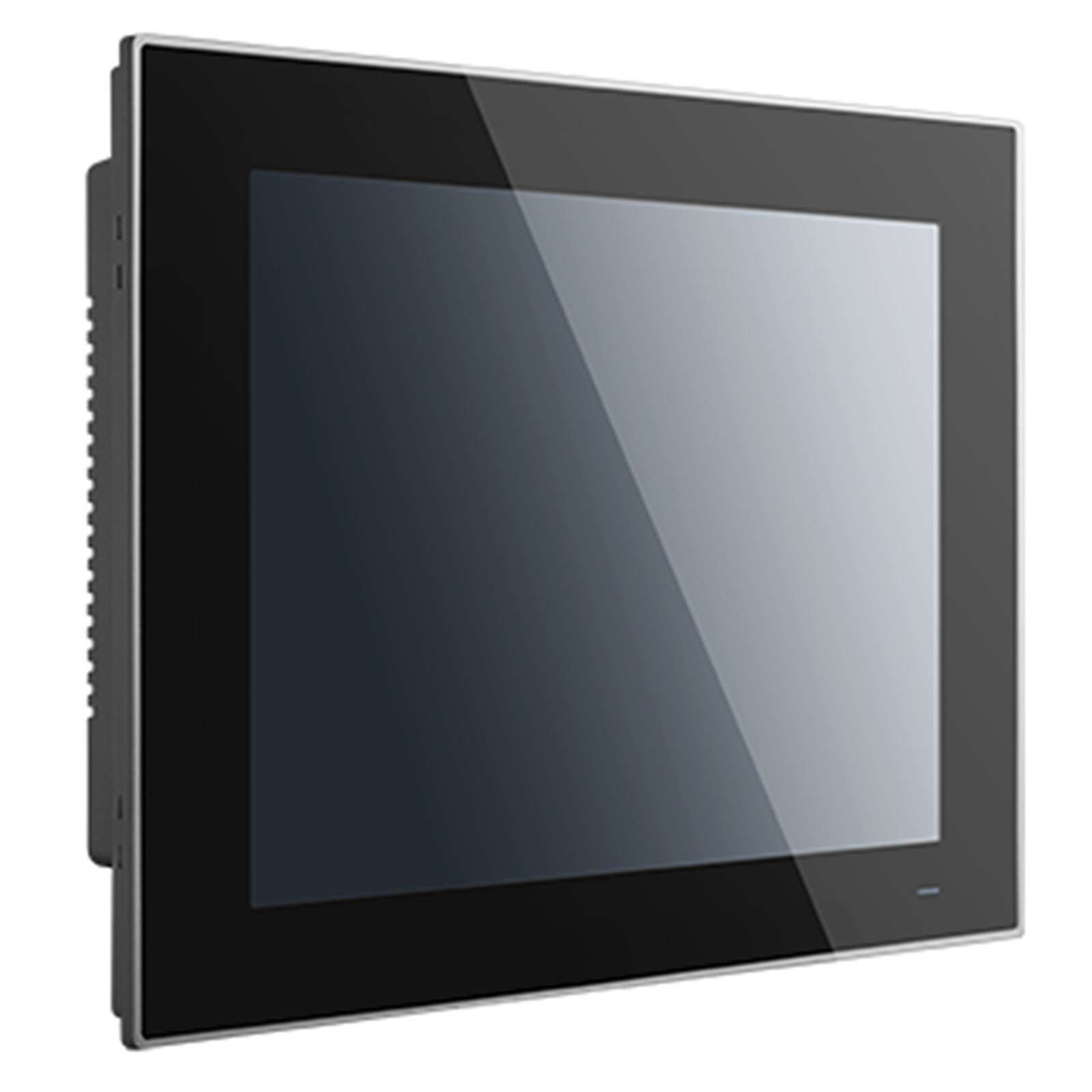

10.4" Fanless Panel PC with Intel® Celeron® N2930 Processor
- Industrial 10.4" TFT SVGA/XGA LED panel with 30k (min.) lifetime
- Durable 5-wire Resistive/Projected capacitive Touch Screen
- Up to 8 GB DDR3L SDRAM
- Embedded Intel processor, quad core Celeron® N2930 1.83GHz onboard
- Compact Fanless Design with solid AI Alloy enclosure
- True-flat with IP66 certified front panel protection
- E-Eye Monitoring and Protection
- Supports Full-size Mini PCIe Expansion & USB 3.0 & VESA 75
Specifications
Environment
Ingress Protection
Front Panel IP66
Operating Temperature
0~50 °C (32~122 °F)
Relative Humidity
10~95% RH (non-condensing)
Storage Temperature
-30~60 °C (-22~140 °F)
Vibration Protection
1 Grms, random
Hardware
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
CPU
Intel® Atom™ E3940 1.6GHz Qua-Core
Ethernet
Intel® i210-IT GbE
Expansion
1 x Full-size mPCIe slot
I/O
4 x RS-232, 1 x RS-422/485 , 4 x USB 3.0, 1 x Line Out, 1 x Mic In, 1 x VGA, 1 x HDMI, 1 x GPIO
LAN
2 x 10/100/1000 Mbps
Memory
1 x DDR3L SO-DIMM Slot
OS Support
Microsoft® Windows 10 , Microsoft® Windows 10 LTSC, Linux, Android
Power Consumption
30 W @ 19 VDC
Power Input
9~32 VDC
I/O Interface
Audio
Line-Out, Microphone
Displays
1 x VGA, 1 x HDMI
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
4 x RS-232, 1 x isolated RS-422/485
LCD Display
Backlight Life (hrs)
30,000
Display Size
10.4"
Luminance (cd/m2)
400
Max. Resolution
800 x 600
Viewing Angle (H/V°)
160/140
Mechanical
Dimension (W x H x D)
272 x 217 x 58 mm
Enclosure
Die-cast aluminum alloy, PC + ABS
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
2.8 kg (6.17 lb)
Touchscreen
Touch Type
5-wire resistive
USB Vision
Connector
4 x USB 3.0 Type A
