Advantech PPC-310-PJ60A 10.4" PPC w/Intel J6412, Pcap
- Brand: Advantech
- MPN: PPC-310-PJ60A
- Part #: IPCAVH221261

Product URL: https://www.pbtech.com/au/product/IPCAVH221261/Advantech-PPC-310-PJ60A-104-PPC-wIntel-J6412-Pcap
Features
Fanless Panel PC with Intel® Celeron® J6412 Processor
- Industrial-grade 10.4" XGA TFT LCD with 30K backlight lifetime
- Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
- Intel® Celeron® J6412 quad-core, 2.0 GHz, processor
- Up to 32 GB DDR4 SDRAM
- 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
- Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
- Supports E-key for wireless module
- Supports expansion via M.2 slot
- Supports Windows Embedded Linux and Android OS
Specifications
Environment
Ingress Protection
Front Panel IP66
Operating Temperature
-10~50 °C (14~122 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
2 Grms, random
Hardware
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
CPU
Intel® Celeron® J6412 2.00 GHz, Quad core
Ethernet
Intel® i225-LM
Expansion
1 x M.2 E Key 2230
Hardware Security
TPM 2.0
I/O
1 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x HDMI
LAN
2 x 10/100/1000/2500 Mbps
Memory
1 x DDR4 SO-DIMM Slot
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android
Power Consumption
35 W @ 19 VDC
Power Input
12~30 VDC

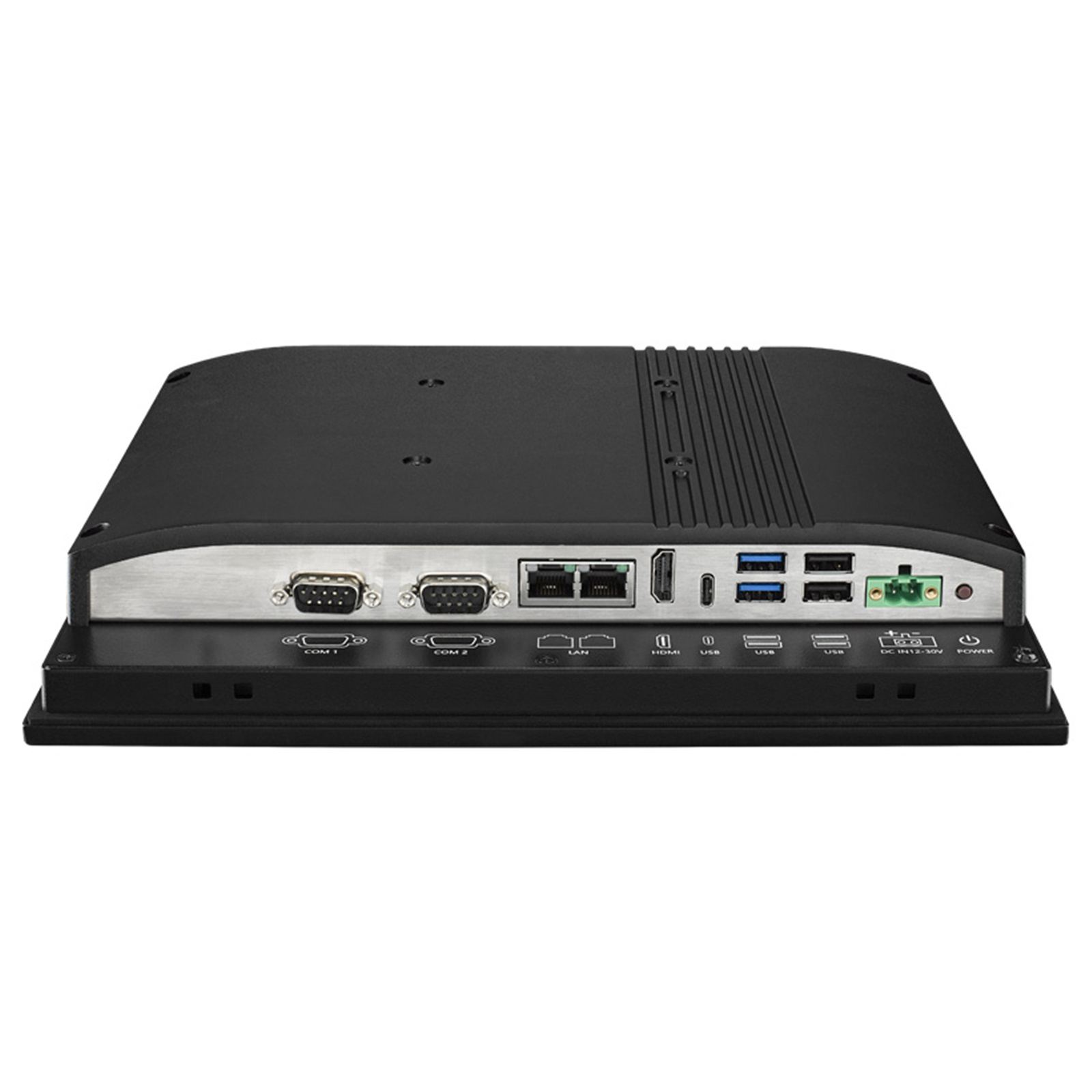

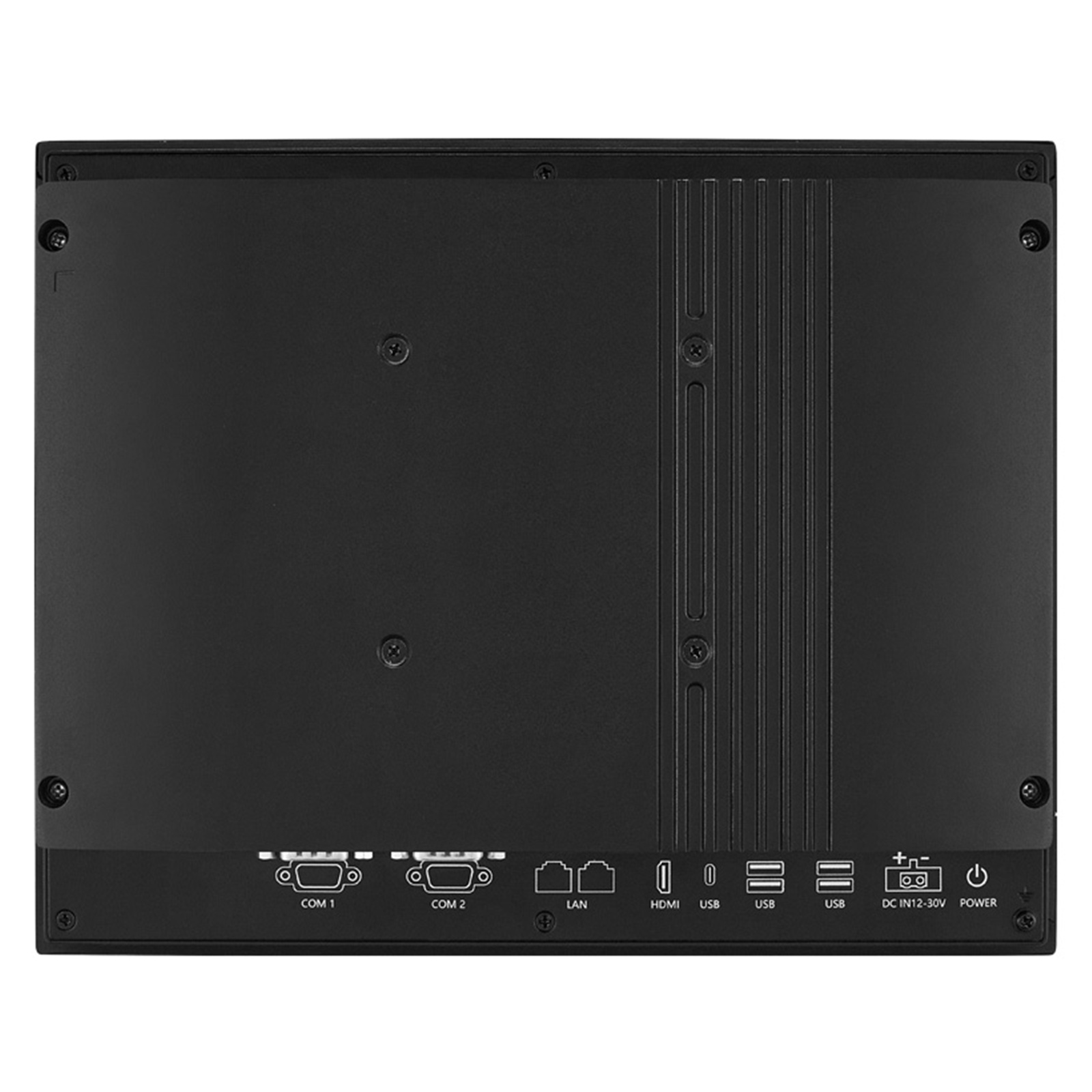

I/O Interface
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
1 x RS-232, 1 x RS-232/422/485
LCD Display
Backlight Life (hrs)
30,000
Display Size
10.4"
Luminance (cd/m2)
350
Max. Resolution
1024 x 768
Viewing Angle (H/V°)
160/176
Mechanical
Dimension (W x H x D)
272 x 217 x 46 mm
Enclosure
Die-cast aluminum alloy
Mounting
Stand, Wall, VESA, Panel
Weight
3 kg (6.61 lb)
Touchscreen
Touch Type
PCAP
USB Vision
Connector
2 x USB 2.0 Type A, 1 x USB 3.0 Type A
