Advantech PPC-3120-RE9A 12.1" PPC w/Intel E3940, Res.
- Brand: Advantech
- MPN: PPC-3120-RE9A
- Part #: IPCAVH221263

Product URL: https://www.pbtech.com/au/product/IPCAVH221263/Advantech-PPC-3120-RE9A-121-PPC-wIntel-E3940-Res
Features

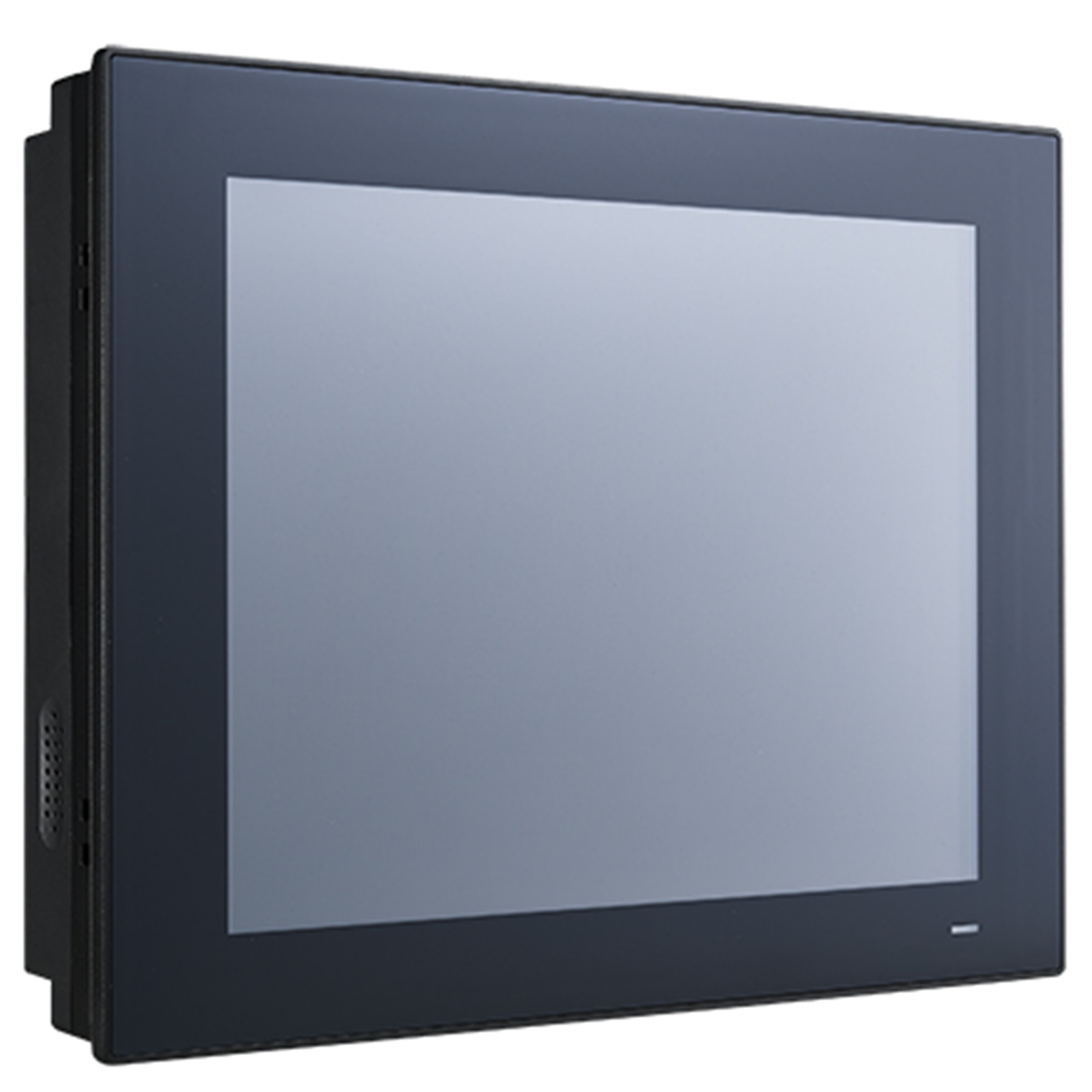

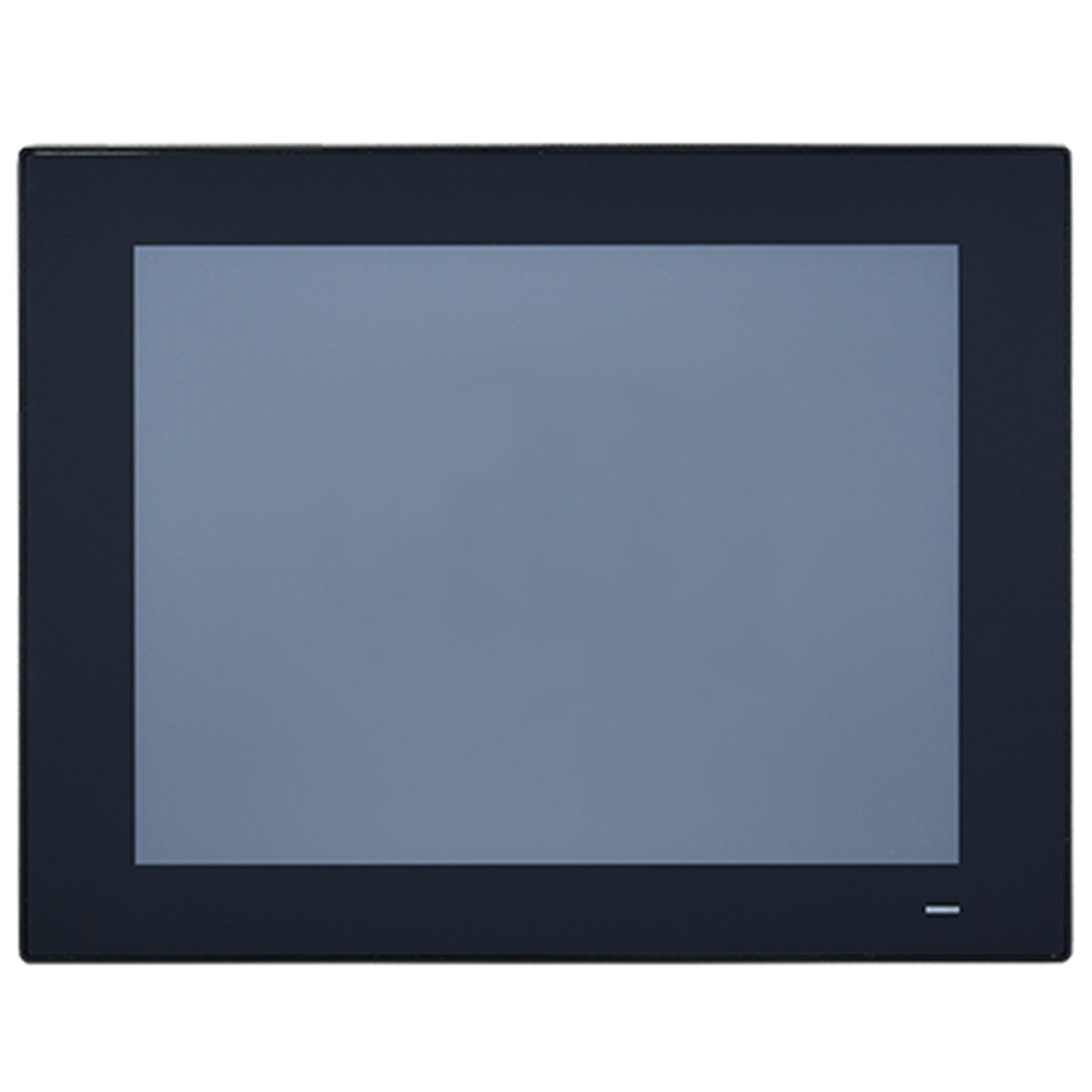

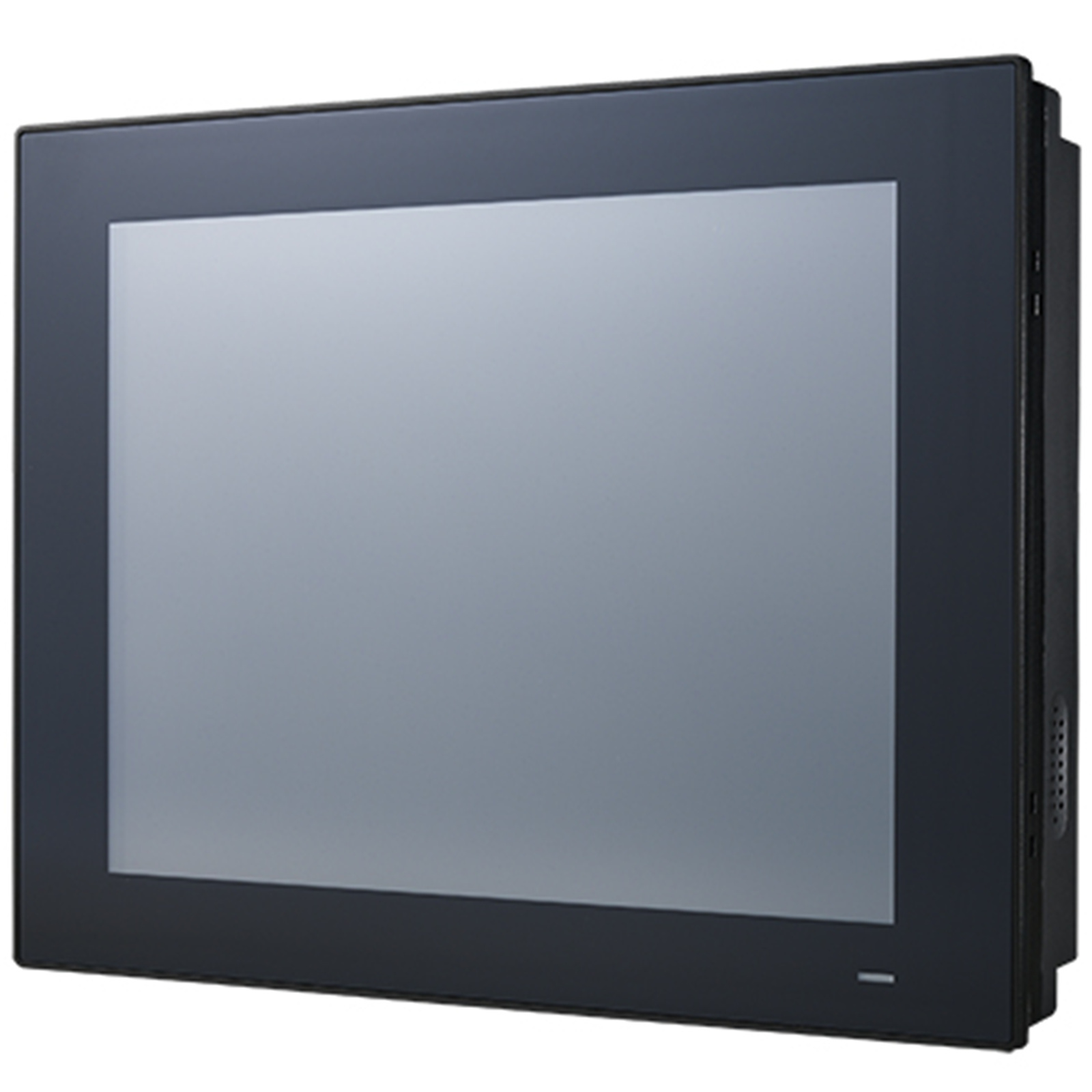

12.1" Fanless Panel PC with Intel® Atom™ E3940 Processor
- 12.1" XGA TFT LCD with resistive touchscreen
- Intel® Atom™ E3940, 1.6 GHz, processor
- Up to 8 GB DDR3L 1866 SDRAM
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Fanless design with low power consumption
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level) & PCI/PCIe x1 expansion kit
- No RED Certification
Specifications
Hardware
CPU
Intel® Atom™ E3940 1.6GHz Qua-Core
Memory
1 x DDR3L SO-DIMM Slot
Storage
1 x 2.5" SSD/HDD Bay, 1 x mSATA
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
LAN
2 x 10/100/1000 Mbps
Ethernet
Intel® i210-IT GbE
I/O
4 x RS-232, 1 x RS-422/485 , 4 x USB 3.0, 1 x Line Out, 1 x Mic In, 1 x VGA, 1 x HDMI, 1 x GPIO
Expansion
1 x Full-size mPCIe slot, 1 x PCI, 1 x PCIe x1
Watchdog Timer
1~255 s
OS Support
Microsoft® Windows 10 LTSC, Linux, Android
Power Input
9~32 VDC
Power Consumption
32 W @ 19 VDC
Environment
Operating Temperature
-20~60 °C (-4~140 °F)
Relative Humidity
95% RH (non-condensing)
Vibration Protection
2 Grms, random
Storage Temperature
-40~60°C (-40~140°F)
Shock Protection
10 G, half sine
Ingress Protection
Front Panel IP66
I/O Interface
Serial Ports
4 x RS-232, 1 x isolated RS-422/485
Audio
Line-Out, Mic-InLine-Out, Mic-In
Displays
1 x VGA, 1 x HDMI
Power Connector
1 x 2-Pin Terminal Block
USB Vision
Connector
4 x USB 3.0 Type A
Mechanical
Dimension (W x H x D)
317 x 246 x 61 mm
Weight (Net)
3.4 kg (7.5 lb)
Enclosure
Die-cast aluminum alloy, PC + ABS
Mounting
Stand, Wall, VESA, Panel
Touchscreen
Touch Type
5-wire resistive
LCD Display
Display Size
12.1"
Max. Resolution
1024 x 768
Viewing Angle (H/V°)
178/178
Luminance (cd/m2)
600
Backlight Life (hrs)
50,000
