Advantech PPC-3120S-RB 12.1" PPC w/Intel N2930, Res.
- Brand: Advantech
- MPN: PPC-3120S-RB
- Part #: IPCAVH221265

Product URL: https://www.pbtech.com/au/product/IPCAVH221265/Advantech-PPC-3120S-RB-121-PPC-wIntel-N2930-Res
Features

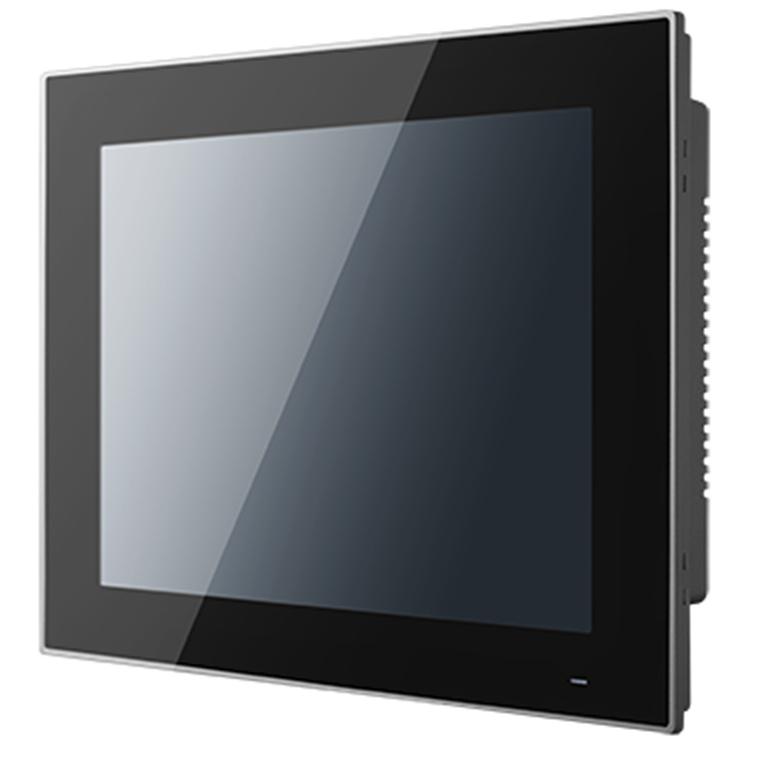

The PPC-3120S is a high-value, ultra-slim panel PC equipped with a 12.1" XGA TFT LCD, and low-power Intel® Celeron® N2930, 1.83 GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-3120S features an IP66-rated front panel, true-flat 5-wire resistive touchscreen, two serial ports, three USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications. To provide further system monitoring and protection capabilities, e-Eye technology is provided at the rear of the panel PC for indicating the system operating status to facilitate detection and analysis.
- Industrial-grade 12.1" XGA TFT LCD with 30K backlight lifetime
- Durable true-flat touchscreen with 5-wire resistive touch control
- Intel® Celeron® N2930 quad-core, 1.83 GHz, processor
- Up to 8 GB DDR3L SDRAM
- 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 1 x USB 3.0
- Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
- Supports E-Eye monitoring and protection
- Supports expansion via full-size mini PCIe
- Supports Windows Embedded and Android OS
- Supports VESA 75 x 75 mounting holes
For more information: https://advdownload.advantech.com/productfile/PIS/PPC-3120S/file/PPC-3120S_DS(081423)20230816161715.pdf
Specifications
MPN
PPC-3120S-RB
12.1" PPC w/Intel N2930, Resistive
System
CPU
Intel® Celeron® N2930 quad core
Frequency
1.83 GHz
L2 Cache
2 MB
Memory
1 x SODIMM DDR3L 1333 MHz (max. 8 GB)
Storage
1 x 2.5" SATA bay (optional; requires a bracket module for installation)
1 x mSATA bay (default)
Network (LAN)
2 x 10/100/1000 Mbps Ethernet (Realtek 8119i)
I/O
2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
2 x USB 2.0, 1 x USB 3.0
Expansion
1 x Full-size mini PCIe slot
Watchdog Timer
255 timer levels, set up by software
Physical Characteristics
Dimensions
317 x 246 x 49 mm (12.5 x 9.7 x 1.9 in)
Weight
2.1 kg (4.63 lb)
OS Support
OS Support
Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux
Power Consumption2
Input Voltage 12 ~ 24 VDC
Power Consumption
18W (Burn-in test 7.0 in Windows 7, 32-bit)
LCD
Display Type
12.1" TFT LCD (LED backlight)
Resolution
1024 x 768
Viewing Angle
80 (left), 80 (right), 70 (up), 70 (down)
Luminance (cd/m²)
500
Contrast Ratio
700
Backlight Lifetime
30,000 hr (min.)
Touchscreen
Touch Type
ELO 5-wire resistive touch
Light Transmission
80±5% at 550 nm wavelength
Controller
RS232 interface
Durability (Touches)
Greater than 35 million touches in one location without failure
Environment
Operating Temperature
0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature
-40 ~ 60 °C (-40 ~ 140 °F)
Relative Humidity
95% @ 40 °C (non-condensing)
Shock
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration
Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC
CE, FCC Class B, BSMI, UKCA
Safety
CB, UL, CCC, UKCA
Front Panel Protection
IP66 compliant
