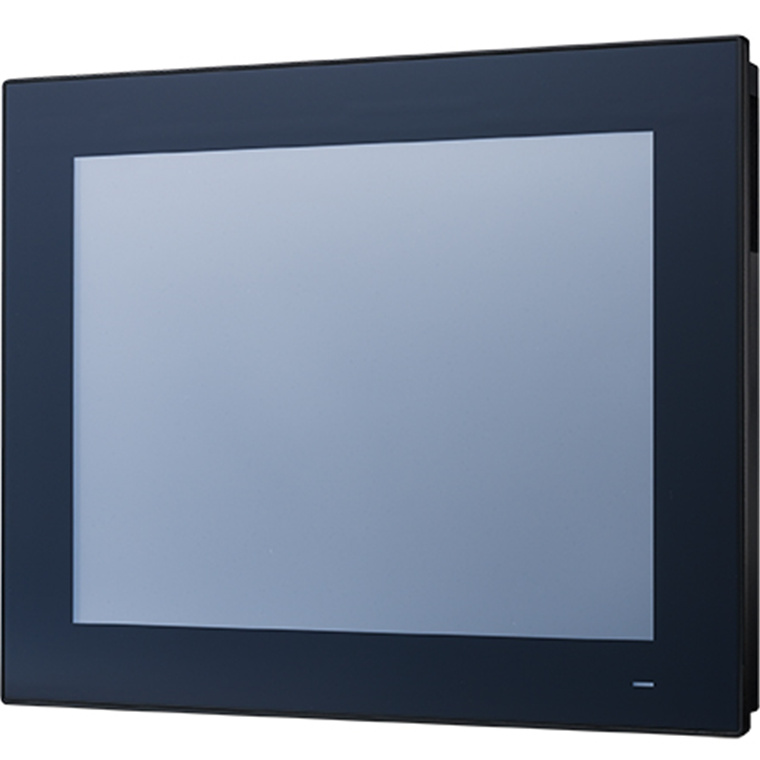

Advantech PPC-3150-RE4CE 15" PPC w/Intel E3845, Res.
- Brand: Advantech
- MPN: PPC-3150-RE4CE
- Part #: IPCAVH221269

Product URL: https://www.pbtech.com/au/product/IPCAVH221269/Advantech-PPC-3150-RE4CE-15-PPC-wIntel-E3845-Res
Features
The PPC-3150 is a 15" fanless panel PC equipped with a high-performance Intel® Atom™ E3845 quad-core, 1.91 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 1 x USB 3.0, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, PPC-3150 can be integrated with fieldbus protocols or proprietary cards for increased application potential.
- 15" XGA TFT LCD with resistive touchscreen
- Intel® Atom™ E3845 quad-core, 1.91 GHz, processor
- Fanless, slim design
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level)
For more information: https://advdownload.advantech.com/productfile/PIS/PPC-3150/file/PPC-3150_DS(081023)20230810140630.pdf
Specifications
MPN
PPC-3150-RE4CE
15" PPC w/Intel E3845, Res.
System
CPU
Intel® Atom™ E3845 quad core
Frequency
1.91 GHz
L3 Cache
2 MB
Memory
1 x SODIMM DDR3L 1333 MHz (max. 8 GB)
Storage
1 x 2.5" SATA bay
1 x mSATA bay
Network (LAN)
2 x 10/100/1000 Mbps Ethernet (Intel I210)
I/O
1 x isolated RS-422/485 (terminal block)
4 x RS-232, two external and two by internal pin header (need optional module)
1 x GPIO (8 channels, TTL level) by internal pin header (need optional module)
1 x USB 3.0, 3 x USB 2.0
1 x VGA
1 x DP1.1a
1 x Line-out, 1 x Mic-in
Expansion
1 x Mini PCIe
1 x PCI (default);1 x PCIe x1 (in the accessory box)
Optional: 1 x Cfast; 1 x CF card; 1 x Internal USB dongle; 2 x RS-232 or 1 x RS-232 + 1 x GPIO
Watchdog Timer
255 timer levels, set up by software
Speaker
2 x 1W
Physical Characteristics
Dimensions
392.2 x 313.5 x 55.1 (15.4 x 12.3 x 2.1 in)
Weight
5.3 kg (11.68 lb)
OS Support
OS Support
Microsoft® Windows 7(32/64-bit), WES7P, WEC7, Win 10 IOT LTSC(64-bit), Linux, Android 6.0
Power Consumption
Input Voltage
9 ~ 32 VDC
Power Consumption
30W (Burn-in test 7.0 in Windows 7 32 bit)
LCD
Display Type
15" TFT LED panel
Max. Resolution
1024 x 768
Viewing Angle
88 (left), 88 (right), 88 (up), 88 (down)
Luminance (cd/m²)
500
Contrast Ratio
2500
Backlight Lifetime
70,000 (typ.)
Touchscreen
Touch Type
5-wire analog resistive
Light Transmission
80+/-3%
Controller
USB interface
Environment
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-40 ~ 60 °C (-40 ~ 140 °F)
Relative Humidity
95% @ 40 °C (non-condensing)
Shock
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration
Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC
CE, FCC Class A, BSMI, VCCI, UKCA
Safety
CB, UL, CCC, UKCA
Front Panel Protection
IP66 compliant
