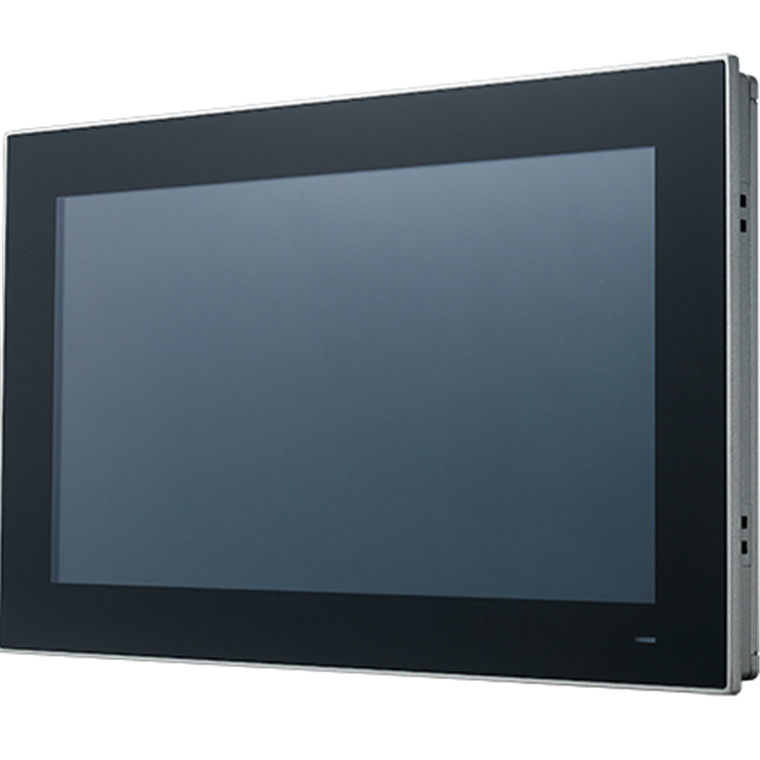

Advantech PPC-3151SW-P65B 15.6" FHD PPC w/Intel i5-6300U, P-Cap

PB Tech price

$ 3,412 .94

+GST

$ 3,754 .23

inc GST

Advantech PPC-3151SW-P65B 15.6" FHD PPC w/Intel i5-6300U, P-Cap

Brand: Advantech
MPN: PPC-3151SW-P65B
Part #: IPCAVH221274
UPC:

PB Tech price

$ 3,754 .23

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PPC-3151SW-P65B
Part #: IPCAVH221274
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The PPC-3151SW is an all-in-one light panel PC with a wide format 15.6" FHD industrial-grade LCD. Powered by 6th generation Intel® Core™ i processor, PPC-3151SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3151SW features a true-flat touchscreen with IP66-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications.

- Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 6th generation Intel® Core™ i processor
- Up to 16 GB DDR4 SDRAM
- Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external HDMI)
- Supports full-size mini PCIe expansion
- Supports USB 3.0
- Supports VESA 100
- Supports TPM 2.0 (optional)

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-3151SW/file/PPC-3151SW_DS(081423)20230816161915.pdf

Specifications

MPN

PPC-3151SW-P65B
15.6" PPC w/Intel i5-6300U, P-Cap

System

CPU

i5-6300U

Cores

Dual Core

Frequency

3.0 GHz with turbo boost 2.6 GHz

L3 Cache

3 MB

TDP

15W

Memory

1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)

Storage

1 x 2.5" SATA bay
1 x mSATA bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I219LM; Realtek 8119i)

I/O

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
1 x TPM 2.0 internal (optional)

Speaker

2 x 1W

Expansion

1 x Full-size mini PCIe slot

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

419.7 x 269.0 x 62.1 mm (16.5 x 10.6 x 2.4 in)

Weight

4.8 kg ( 10.67 lb)

OS Support

Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux

Power Consumption

Input Voltage

12 ~ 24 VDC

Power Consumption

60W (burn-in test in Win 7 64-bit)

LCD

Display Type

15.6" FHD LCD (LED backlight)

Resolution

1920 x 1080

Viewing Angle

85 (left), 85 (right), 85 (up), 85 (down)

Luminance (cd/m²)

450

Contrast Ratio

800

Backlight Lifetime

50,000 hr (min.)

Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

90 % ± 2 %

Controller

USB interface

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity

95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration Operating

Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE,FCC Class B,VCCI, BSMI, EN 60601-1-2, UKCA

Safety

CB, UL, CCC, UKCA

Front Panel Protection

IP66 compliant

Manufacturer Part No:

PPC-3151SW-P65B

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221274

Product Model:

PPC-3151SW-P65B

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
