Advantech PPC-315-RJ60A 15" PPC w/Intel J6412, Res.
- Brand: Advantech
- MPN: PPC-315-RJ60A
- Part #: IPCAVH221279

Product URL: https://www.pbtech.com/au/product/IPCAVH221279/Advantech-PPC-315-RJ60A-15-PPC-wIntel-J6412-Res
Features

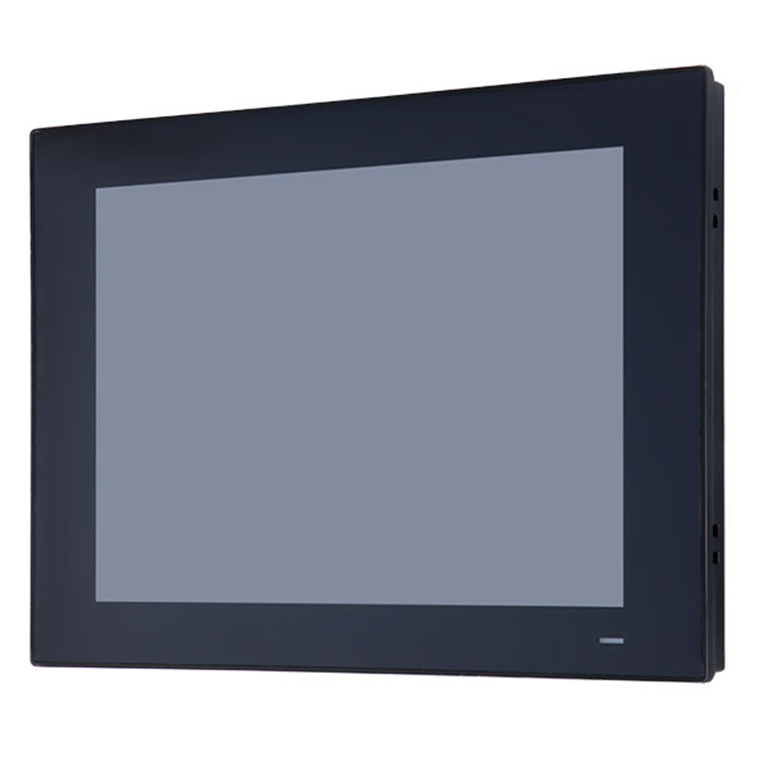

PPC-315 EHL is an industrial panel PC with 15" XGA LCD, powered by Intel Celeron quad core J6412 processor. With aesthetic aluminum alloy enclosure, PPC-315 EHL ensures fanless reliability and easy maintenance in diverse industrial applications. Moreover, it provides more faster and flexible connection via 2 x 2.5G Ethernet port, 2 x USB 3.1 and 1 x Type C (USB only). The PPC-315 EHL is ideal for MES, processing and general industrial equipment integration.
- Industrial-grade 15" XGA TFT LCD with 70K backlight lifetime
- Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
- Intel® Celeron® J6412 quad-core, 2.0 GHz, processor
- Up to 32 GB DDR4 SDRAM
- 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.1
- Compact, fanless design with solid aluminum alloy enclosure and IP66-rated front panel
- Supports E-key for wireless module
- Supports expansion via M.2 slot
- Supports Windows Embedded Linux and Android OS
- Supports VESA 75 x 75 mounting holes
- Dual 2.5GBASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
For more information: https://advdownload.advantech.com/productfile/PIS/PPC-315%20EHL/file/PPC-315-EHL_DS(062024)20240621103800.pdf
Specifications
MPN
PPC-315-RJ60A
15" PPC w/Intel J6412, Resistive
System
CPU
Intel® Celeron® J6412 quad core
Frequency
2.0 GHz
L2 Cache
1.5 MB
Memory
1 x SDRAM DDR4 3200 MHz (max. 32G)
Storage
1 x 2.5" SATA bay (optional; requires a bracket module for installation)
1 x M.2 slot: M key for storage (SATA only, 2242 & 2280)
Network (LAN)
2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM)
I/O
2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
2 x USB 2.0, 2 x USB 3.1
1 x Type C (USB only)
1 x HDMI1.4
1 x TPM2.0
Expansion
1 x M.2 2230 E-key for wireless card
Watchdog Timer
255 timer levels, set up by software
Physical Characteristics
Dimensions
392 x 314 x 55 mm (15.4 x 12.4 x 2.2 in)
Weight
5 kg (11.02 lb)
OS Support
OS Support
Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux, Android
Power Consumption
Input Voltage
12 ~ 30 VDC
Power Consumption
45W (Burn-in test 8.1 in Windows 10, 64-bit)
LCD
Display Type
15" TFT LCD (LED backlight)
Resolution
1024 x 768
Viewing Angle
80 (left), 80 (right), 88 (up), 88 (down)
Luminance (cd/m²)
300
Contrast Ratio
2000
Backlight Lifetime
70,000 hr (min.)
Touchscreen
Touch Type
5-wire resistive touch
Light Transmission
80±5% at 550 nm wavelength
Controller
USB interface
Durability (Touches)
Greater than 35 million touches in one location without failure
Environment
Operating Temperature
-10 ~ 50°C (14 ~ 122°F)
Storage Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity
95% @ 40 °C (non-condensing)
Shock
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration
Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC
CE, FCC Class B, BSMI, UKCA, VCCI
Safety
CB, CCC, UL, UKCA
Front Panel Protection
IP66 compliant
