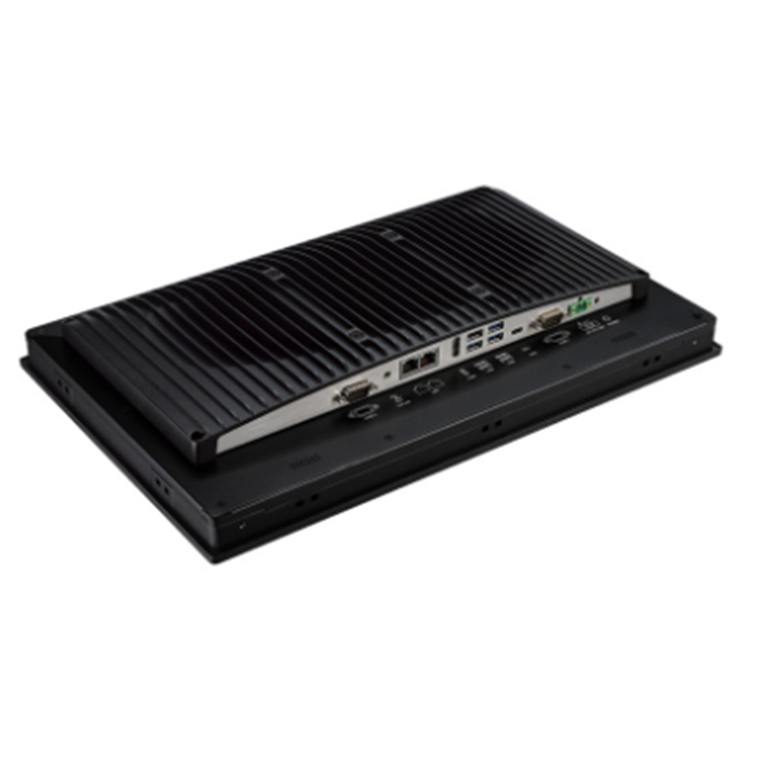

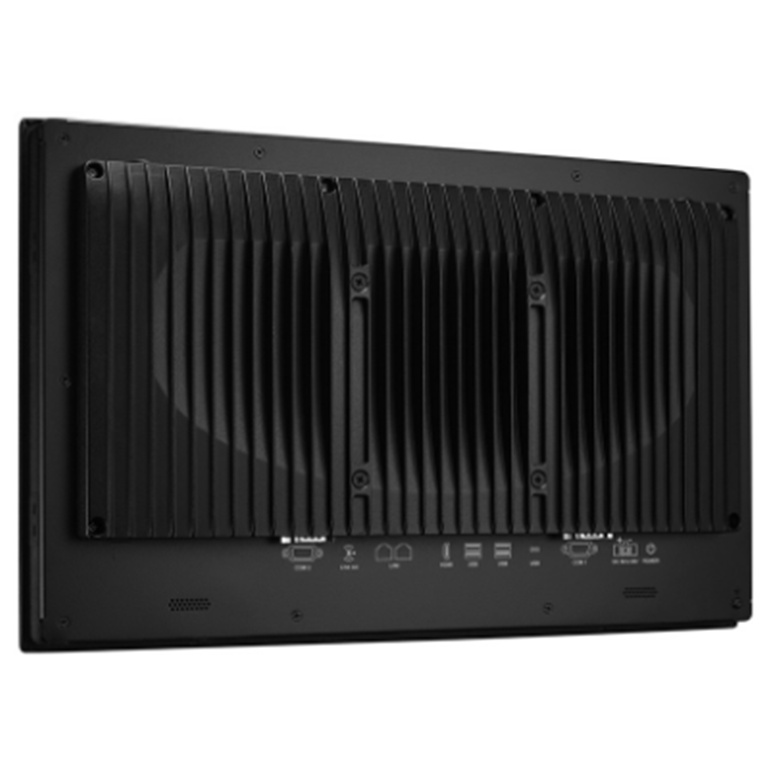

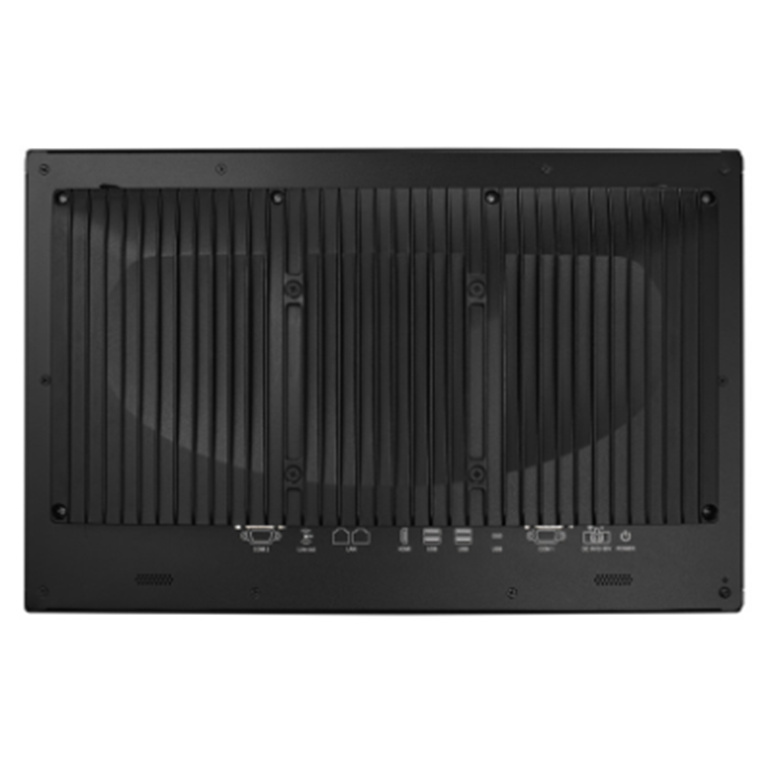

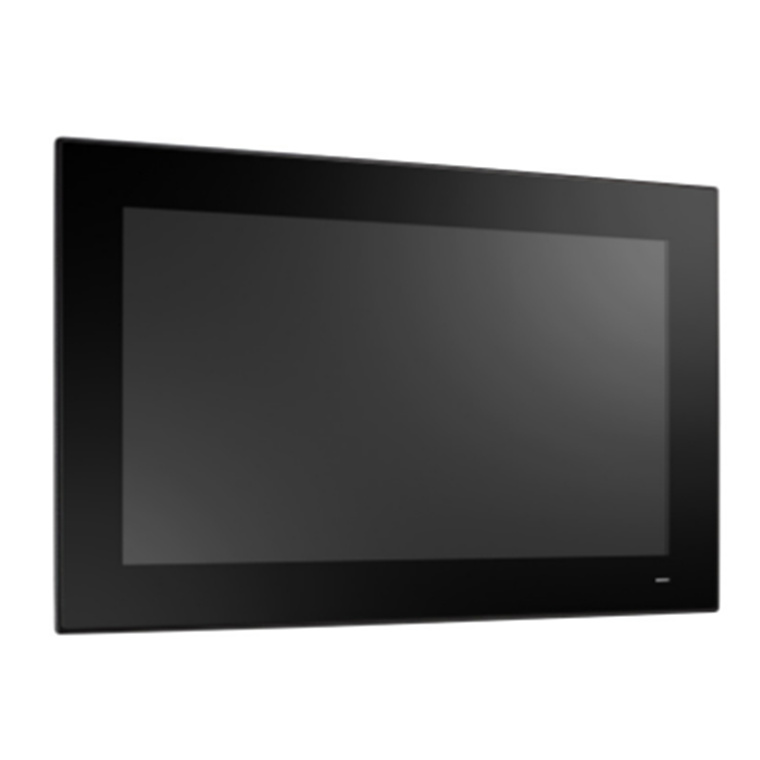

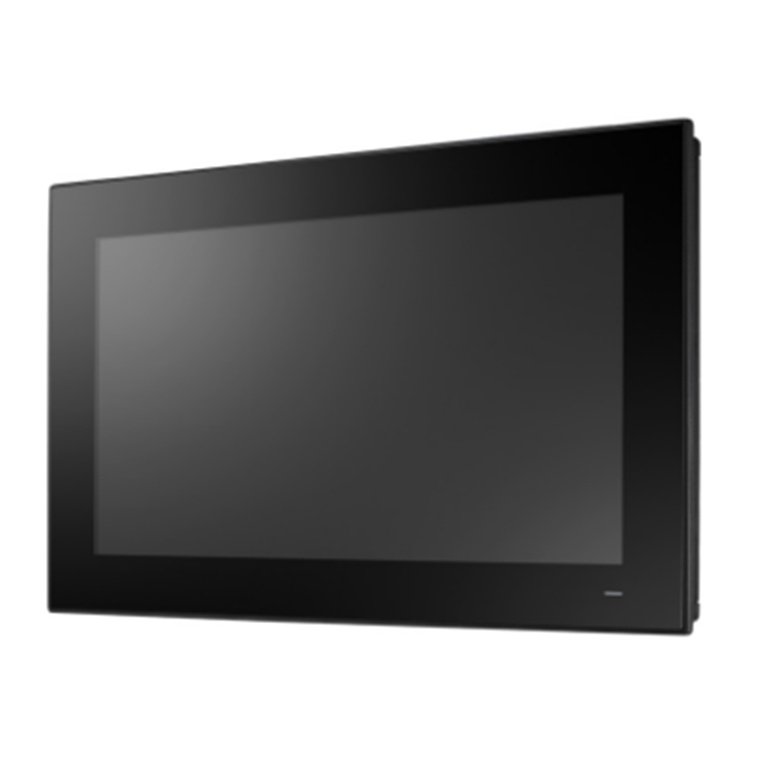

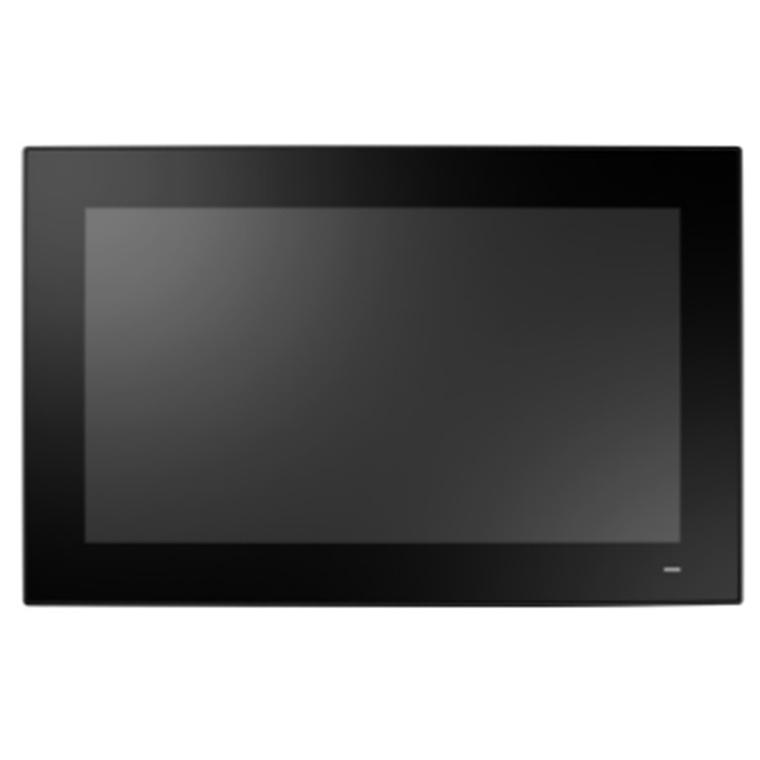

Advantech PPC-315W-PB30A 15.6" FHD PPC w/Intel i3-1115G4E, P-Cap
- Brand: Advantech
- MPN: PPC-315W-PB30A
- Part #: IPCAVH221280

Product URL: https://www.pbtech.com/au/product/IPCAVH221280/Advantech-PPC-315W-PB30A-156-FHD-PPC-wIntel-i3-111
Features
PPC-315w TGL is an 15.6" Fanless Panel PC equipped Intel 11th Gen Core i7/i5/i3, providing high computing performance with robust aluminum alloy enclosure. It also leverages M.2 M key NVMe PCIe to accommodate extremely high date rate and low latency advantage. PPC-315w TGL features 3 x USB 3.2, 2 x series ports and 1 x HDMI for flexible access and connection. The PPC-315w TGL is an excellent solution to enable quick date capture, processing and data digitalization in various industrial applications.
- Industrial-grade 15.6" FHD LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive contr
- High-performance, fanless 11th generation Intel® Core™ i processor
- Dual channel memory slots, max 64G
- Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external HDMI)
- 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
- Support TPM2.0 hardware security
For more information: https://advdownload.advantech.com/productfile/PIS/PPC-315W%20TGL/file/PPC-315W-TGL_DS(062024)20240621104340.pdf
Specifications
MPN
PPC-315W-PB30A
15.6" PPC w/Intel i3-1115G4E, P-Cap
System
CPU
i3-1115G4E
Cores
Dual Core
Frequency
2.2GHz; 3.90GHz with turbo boost
Cache
6 MB
TDP
15W
Memory
2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2)
Storage
1 x 2.5" SATA bay
1 x M.2 2280 M-Key bay (Co-lay SATA, for storage only)
Network (LAN)
1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
1 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2500M

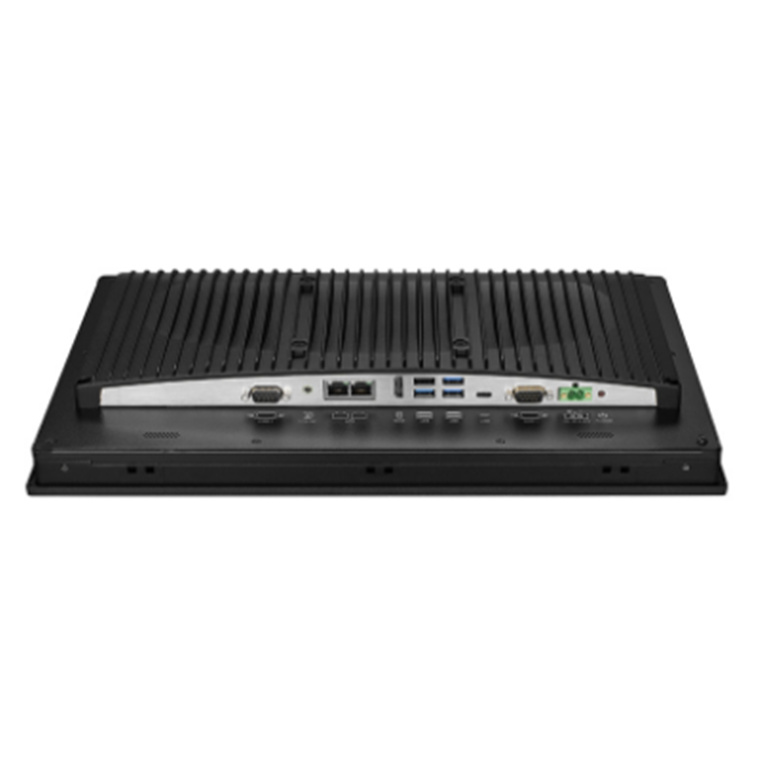

I/O
2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal), 1 x Type C (USB only)
1 x HDMI1.4
1 x TPM 2.0
1 x Line out
Speaker
2 x 1W
Expansion
1 x M.2 2230 E-key for wireless card
Watchdog Timer
255 timer levels, set up by software
Physical Characteristics
Dimensions
419.7 x 269.0 x 62.1 mm (16.5 x 10.6 x 2.4 in)
Weight
4.8 kg (10.67 lb)
OS Support
OS Support
Microsoft® Windows 10 IOT LTSC(64-bit), Win11, Linux
Power Consumption
Input Voltage
12 ~ 30 VDC
Power Consumption
70W (Burn-in test 8.1 in Windows 10 64-bit)
LCD
Display Type
15.6" FHD LCD (LED backlight)
Resolution
1920 x 1080
Viewing Angle
89(left), 89(right), 89(up), 89(down)
Luminance (cd/m²)
450
Contrast Ratio
800
Backlight Lifetime
50,000 hr (min.)
Touchscreen
Touch Type
10-point multi-touch projected capacitive
Light Transmission
>= 88%
Controller
USB interface
Environment
Operating Temperature
-10 ~ 50 °C (14~122 °F)
Storage Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity
95% @ 40 °C (non-condensing)
Shock
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration
Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC
CE, FCC Class B, BSMI, VCCI, UKCA
Safety
CB, UL, CCC, UKCA
Front Panel Protection
IP66 compliant
