Features

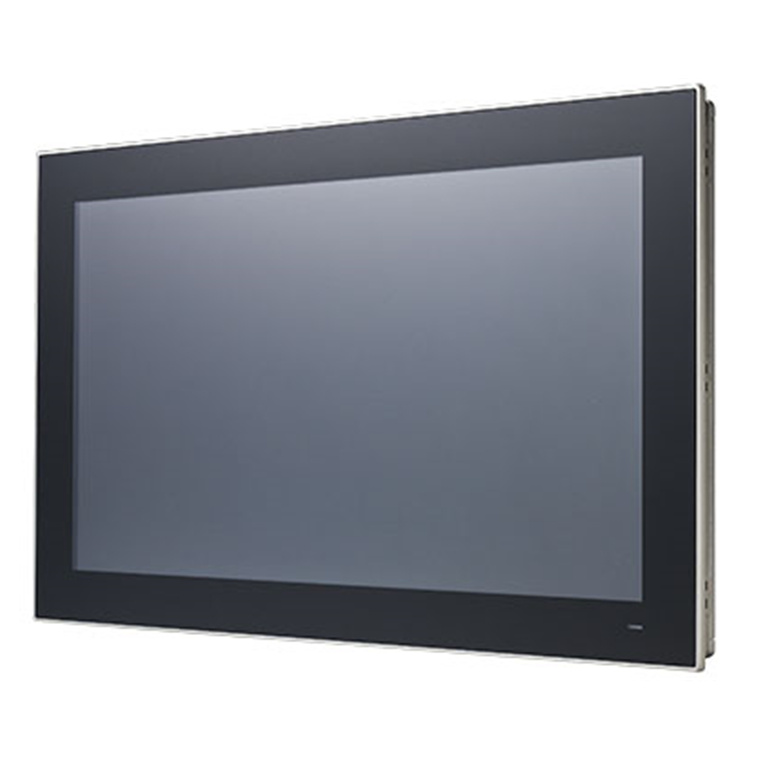

The PPC-3211SW is an all-in-one light panel PC with a wide format 21.5" industrial-grade LCD. Powered by 6th generation Intel® Core™ i processor, PPC-3211SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3211SW features a true-flat touchscreen with IP66-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications.

- Industrial-grade 21.5" LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 6th generation Intel® Core™ i processor
- Up to 16 GB DDR4 SDRAM
- Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external HDMI)
- Supports full-size mini PCIe expansion
- Supports USB 3.0
- Supports VESA 100
- Supports TPM 2.0 (optional)

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-3211SW/file/PPC-3211SW_DS(081423)20230816163311.pdf

Specifications

MPN

PPC-3211SW-P63B
21.5" PPC w/Intel i3-6100U, P-Cap

System

CPU

i3-6100U

Cores

Dual Core

Frequency

2.3 GHz 2.4 GHz

L3 Cache

3 MB

TDP

15W

Memory

1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)

Storage

1 x 2.5" SATA bay
1 x mSATA bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Realtek 8119i)

I/O

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
1 x TPM 2.0 internal (optional)

Speaker

2 x 1W

Expansion

1 x Full-size mini PCIe slot

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

558.4 x 349.8 x 62.2 mm (21.9 x 13.7 x 2.4 in)

Weight

6.8 kg (14.9 lb)

OS Support

Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux

Power Consumption

Input Voltage

12 ~ 24 VDC

Power Consumption

75W

LCD

Display Type

21.5" TFT LCD (LED backlight)

Resolution

1920 x 1080

Viewing Angle

89 (left), 89 (right), 89 (up), 89 (down)

Luminance (cd/m²)

300

Contrast Ratio

5000

Backlight Lifetime

50,000 hr

Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

90 % ± 3 %

Controller

USB interface

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity

95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE,FCC Class B, BSMI, UKCA

Safety

CB, UL, CCC, UKCA

Front Panel Protection

IP66 compliant
