Advantech PPC-324W-PN40B 23.8" FHD PPC w/Intel N4200, P-Cap

Brand: Advantech
MPN: PPC-324W-PN40B
Part #: IPCAVH221307
UPC:

PB Tech price

$ 2,820 .18

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

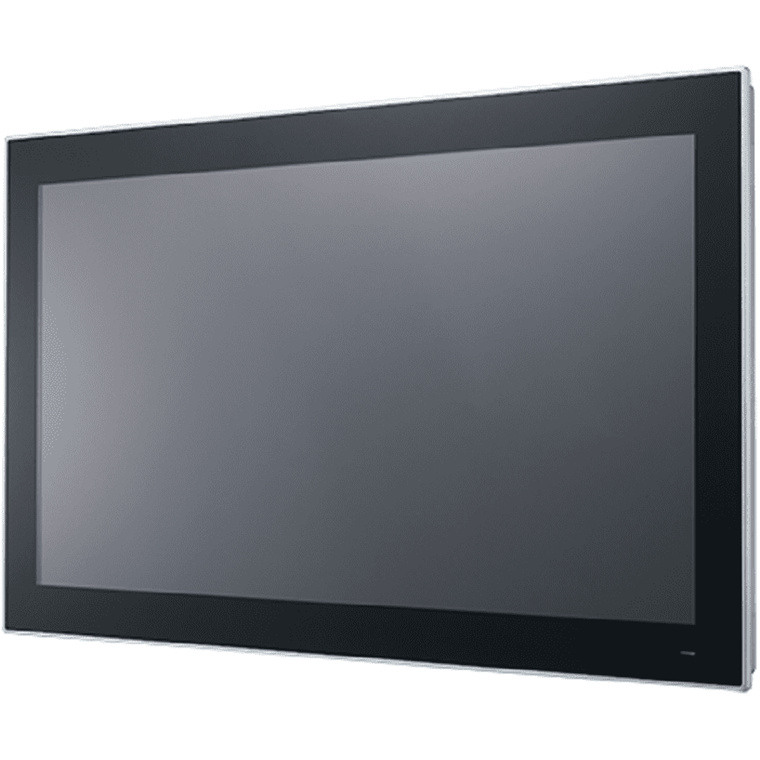

Click or hover over image to enlarge

Brand: Advantech
MPN: PPC-324W-PN40B
Part #: IPCAVH221307
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The PPC-324W-PN4 is a high-value, ultra-slim panel PC equipped with a 23.8" industrial-grade LCD, and low-power Intel® Pentium® N4200 quad-core, 1.1 GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-324W-PN4 features an IP66-rated front panel, multi-touch projected capacitive touchscreen, die cast aluminum alloy enclosure, two serial ports, four USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications.

- 23.8" true-flat TFT LCD with projected capacitive touch control
- Fanless design with low power consumption
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Configurable RS-232/422/485 ports via BIOS
- Automatic data flow control over RS-485
- Wide range DC support (12 ~ 24 VDC)
- Supports dual displays
- IP66-rated front panel

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-324W-PN4/file/PPC-324W-PN4_DS(081423)20230816161535.pdf

Specifications

MPN

PPC-324W-PN40B
23.8" PPC w/Intel N4200, P-Cap

System

CPU

Intel Pentium® N4200 quad Core

Frequency

1.1GHz, turbo boot to 2.5GHz

L2 Cache

3 MB

Memory

1 x SODIMM, DDR3L 1600/1866, max. 8 GB

Storage

1 x 2.5" SATA bay (optional; requires a bracket module for installation)
1 x mSATA bay

Network (LAN)

2 x 10/100/1000/2500Mbps Ethernet (Intel i225LM)

I/O

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485
2 x USB 3.0, 2 x USB 2.0
1 x Line-out
1 x HDMI

Expansion

1 x Mini PCIe

Watchdog Timer

255 timer levels, set up by software

Speaker

2 x 1W

Physical Characteristics

Dimensions

595.9 x 374.1 x 58.4 mm (23.5" x 14.7" x 2.3")

Weight

8.4 kg (18.5 lb)

OS Support

Microsoft® Windows 10 IOT LTSC(64-bit), Linux

Power Comsumption

Input Voltage

12 ~ 24 VDC

Power Consumption

70W

LCD

Display Type

23.8" TFT LCD (LED backlight)

Max. Resolution

1920 x 1080

Viewing Angle

89 (Left), 89 (Right), 89 (Up), 89 (Down)

Luminance (cd/m²)

350

Contrast Ratio

1000

Backlight Lifetime

30,000 hr

Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

>= 85%

Controller

USB Interface

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity

95% @ 40 °C (Non-Condensing)

Shock

Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-2-64

EMC

CE, FCC Class B, BSMI, EN60601-1-2, UKCA

Safety

CB, UL, CCC, UKCA

Front Panel Protection

IP66 compliant

Manufacturer Part No:

PPC-324W-PN40B

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221307

Product Model:

PPC-324W-PN40B

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
