Advantech PPC-415-PB70A 15" PPC w/Intel i7-1185G7E, Pcap

PB Tech price

$ 3,760 .02

+GST

$ 4,136 .02

inc GST

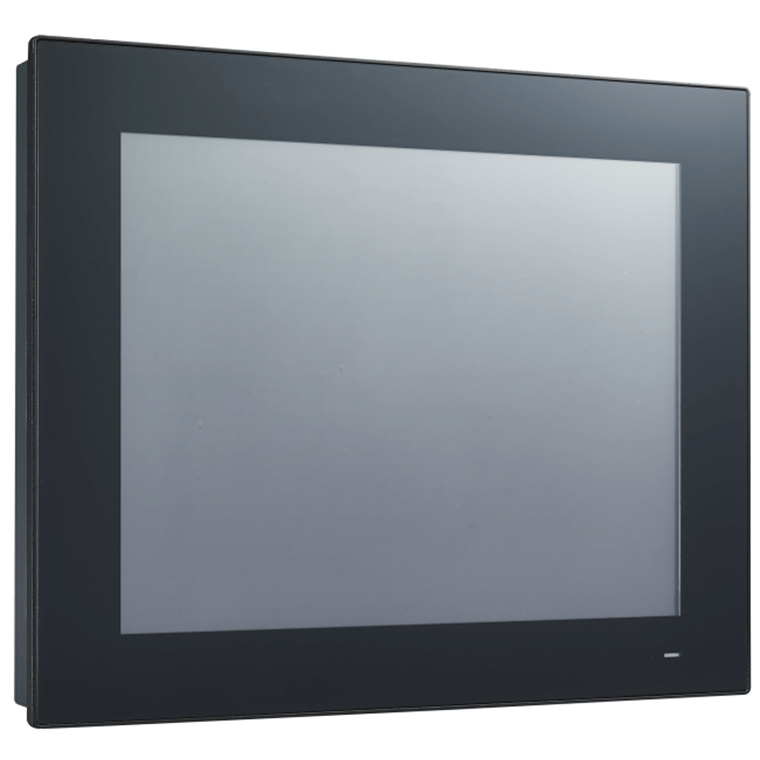

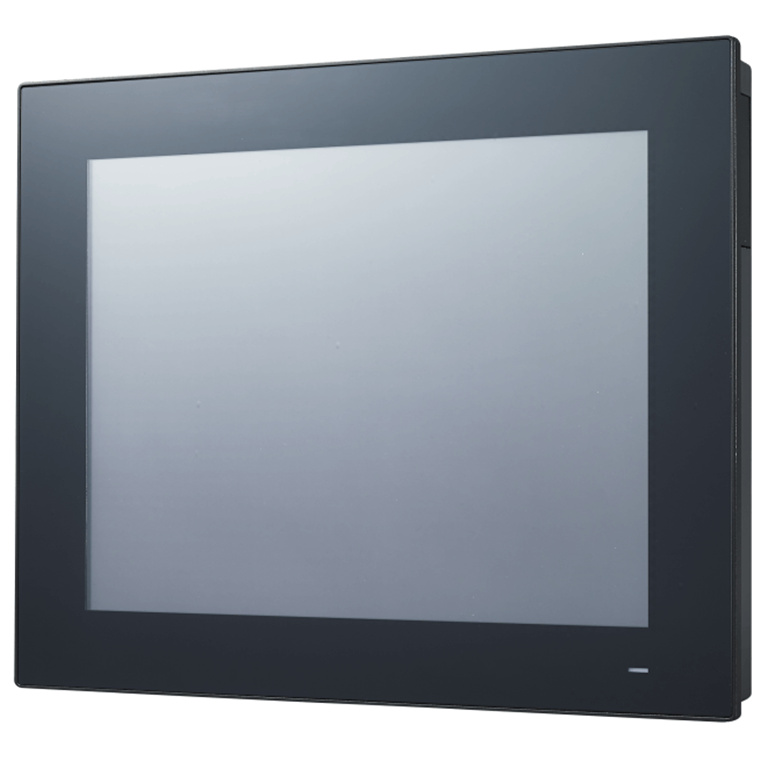

Advantech PPC-415-PB70A 15" PPC w/Intel i7-1185G7E, Pcap

Brand: Advantech
MPN: PPC-415-PB70A
Part #: IPCAVH221311
UPC:

PB Tech price

$ 4,136 .02

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PPC-415-PB70A
Part #: IPCAVH221311
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Designed for high-performance computing 11th gen applications, PPC-415 provides a superior human-machine interface and reliability, with multi-touch screen, rich I/O and aluminum alloy front bezel. The inclusion of PCIe/PCI slot for fieldbus or proprietary card expansion increases the system's compatibility for diverse applications. In addition, Time Sensitive Network(TSN)configuration integrated allows more possibilities for optimized industrial applications.

- 15" XGA TFT LCD flat panel with projected capacitive (default) or resistive (by reuqest) touchscreen
- Intel® Core™ i7-1185G7E processor with fanless system design
- Dual channel memory slots, max 64G
- Supports either 1 x PCIe x4 or 1 x PCI
- 1x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID
- 1x isolated RS-422/485 with auto flow
- Wide power input range (9 ~ 32 VDC)
- Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- 3x Independent displays

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-415%20TGL/file/PPC-415-TGL_DS(020224)20240202165259.pdf

Specifications

General

MPN

PPC-415-PB50A

Description

15" PPC w/Intel Core i5-1145G7E, P-CAP

Hardware

CPU

Intel® Core™ i7-1185G7E 1.8GHz Quad core

Memory

2 x DDR4 SO-DIMM Slot

Storage

1 x SATA M.2 SSD slot (2280/2242 M-Key), 1 x 2.5" SSD/HDD Bay

LAN

2 x 10/100/1000/2500 Mbps

Ethernet

Intel® i225-LM

I/O

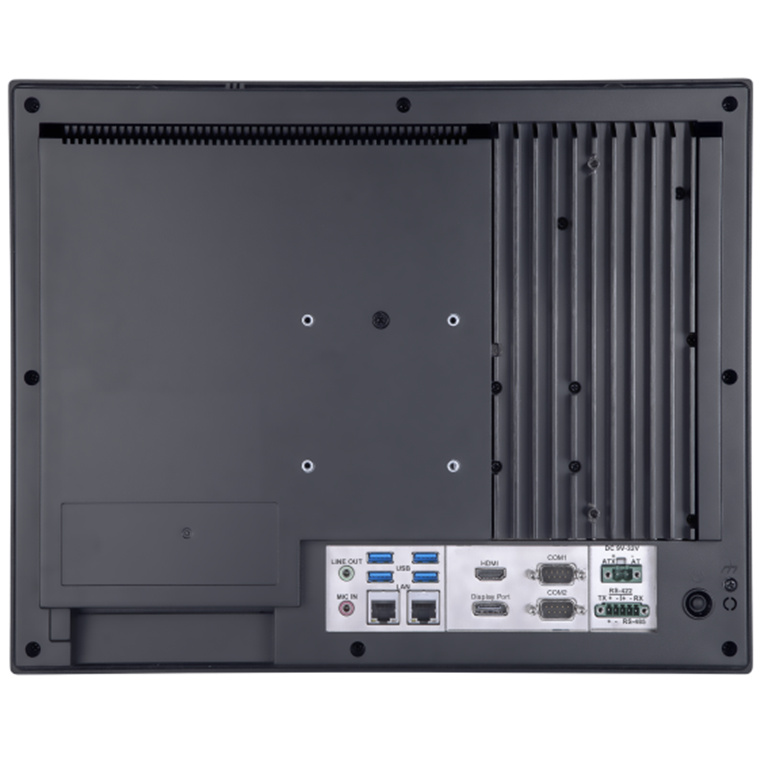

2 x RS-232, 1 x RS-422/485, 4 x USB 3.0, 1 x Line Out, 1 x Mic In, 1 x VGA, 1 x DP

Expansion

1 x M.2 E key 2230,1 x M.2 B key 3052/3042, 1 x PCIe x4 or 1 x PCI

Watchdog Timer

1~255 s

Certification

CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux

Power Input

9~32 VDC

Power Consumption

60 W @ 19 VDC

I/O Interface

Serial Ports

2 x RS-232, 1 x RS-422/485

Audio

Line-Out, Mic-In

Displays

1 x HDMI, 1 x DP

Power Connector

1 x 2-Pin Terminal Block

USB Vision

Connector

4 x USB 3.2 Type A

Mechanical

Dimension (W x H x D)

392 x 314 x 55 mm

Enclosure

Die-cast aluminum alloy, PC + ABS

Mounting

Stand, Wall, VESA, Panel

Weight (Net)

5.4 kg (11.90 lb)

Environment

Relative Humidity

95% RH (non-condensing)

Vibration Protection

2 Grms, random

Operating Temperature

-10~50 °C (14~122 °F)

Storage Temperature

-40~60°C (-40~140°F)

Shock Protection

10 G, half sine

Ingress Protection

Front Panel IP66

Touchscreen

Touch Type

PCAP

LCD Display

Display Size

15"

Max. Resolution

1024 x 768

Viewing Angle (H/V°)

176/176

Luminance (cd/m2)

500

Backlight Life (hrs)

70,000

Manufacturer Part No:

PPC-415-PB70A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221311

Product Model:

PPC-415-PB70A

Warranty: 12 months *
