Advantech PPC-415-RX6A 15" PPC w/Intel x6425E, Res.T/S
- Brand: Advantech
- MPN: PPC-415-RX6A
- Part #: IPCAVH221312

Product URL: https://www.pbtech.com/au/product/IPCAVH221312/Advantech-PPC-415-RX6A-15-PPC-wIntel-x6425E-ResTS
Features

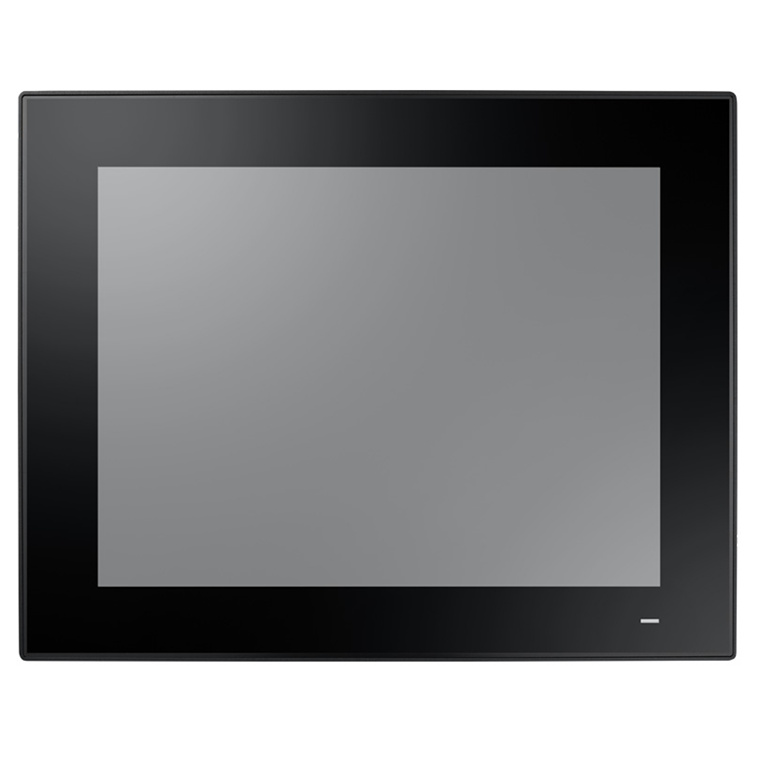

The PPC-415 EHL is a 15" fanless panel PC equipped with a high-performance Intel® Atom™ x6425E quad-core, 2.0 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 2 x USB 3.2, 1 x isolated RS-422/485, and dual Intel® Gigabit
Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, PPC-415 EHL can be integrated with fieldbus protocols or proprietary cards for increased application potential.
- 15" XGA TFT LCD with resistive (default) or projected capacitive (by request) touchscreen
- Intel® Atom™ x6425E quad-core, 2.0 GHz processor
- Fanless, slim design
- Supports 1 x 2.5" SATA and 1 x M.2 B key slot for expansion
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control
- Dual 2.5GBASE-T Ethernet supports Time-Sensitive Network (TSN) technology
- Optional GPIO (8 channels, TTL level)
For more information: https://advdownload.advantech.com/productfile/PIS/PPC-415%20EHL/file/PPC-415-EHL_DS(082223)20230822104542.pdf
Specifications
MPN
PPC-415-RX6A
15" PPC w/Intel x6425E, Res. T/S
System
CPU
Intel® Atom™ x6425E quad core
Frequency
2.0 GHz
L2 Cache
1.5 MB
Memory
1 x SODIMM DDR4 3200 MHz (max. 32 GB)
Storage
1 x 2.5" SATA bay
1 x M.2 B key bay (size: 2242/2280 or 3042/3052 mm; Singal: SATA, PCIe X1, USB 3.0)
Network (LAN)
2 x 10/100/1000/2500 Mbps Ethernet (Intel I226)
I/O
5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K VDC isolation,2 x RS-232 (on right side optional)
2 x USB 3.2, 3 x USB2.0 (2pcs default, 1pcs by request)
1 x Line-Out, 1 x Mic-In
1 x HDMI 1.4
1 x DisplayPort (1.4)
1 x 8bit GPIO (Optional)
1 x TPM2.0
Expansion
1 x M.2 2230 E Key slot for wireless card
1 x PCIe x1 (default), 1 x PCI (optional);
1 x Cfast card (optional)
Watchdog Timer
255 timer levels, set up by software
Speaker
2 x 1W
Physical Characteristics
Dimensions
392.2 x 313.5 x 55.1 (15.4 x 12.3 x 2.1 in)
Enclosure
Front bezel: Die cast aluminum alloy Rear: ABS
Mounting
Panel Mount (Default); VESA Mount/ Desktop/ Wall (optional)
Weight
5.3 kg (11.68 lb)
OS Support
OS Support
Microsoft® Win10 IOT LTSC (64-bit),Win11, Linux
Power Consumption
Input Voltage
9 ~ 32 VDC
Power Consumption
50W (Burn-in test 8.1 in Windows 10, 64 bit)
LCD
Display Type
15" TFT LED panel
Max. Resolution
1024 x 768
Viewing Angle
88 (left), 88 (right), 88 (up), 88 (down)
Luminance (cd/m²)
500
Contrast Ratio
2500
Backlight Lifetime
70,000 (typ.)
Touchscreen
Touch Type
5-wire analog resistive
Light Transmission
80+/-3%
Controller
USB interface
Environment
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-40 ~ 60 °C (-40 ~ 140 °F)
Relative Humidity
95% @ 40 °C (non-condensing)
Shock
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration
Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC
CE, FCC Class B, EN 61000-6-2, BSMI, VCCI, UKCA
Safety
CB, UL, CCC, UKCA
Front Panel Protection
IP66 compliant
