Advantech PPC-415W-PD5A 15.6" PPC w/Intel i5-1345URE, P-CAP
- Brand: Advantech
- MPN: PPC-415W-PD5A
- Part #: IPCAVH221314

Product URL: https://www.pbtech.com/au/product/IPCAVH221314/Advantech-PPC-415W-PD5A-156-PPC-wIntel-i5-1345URE
Features

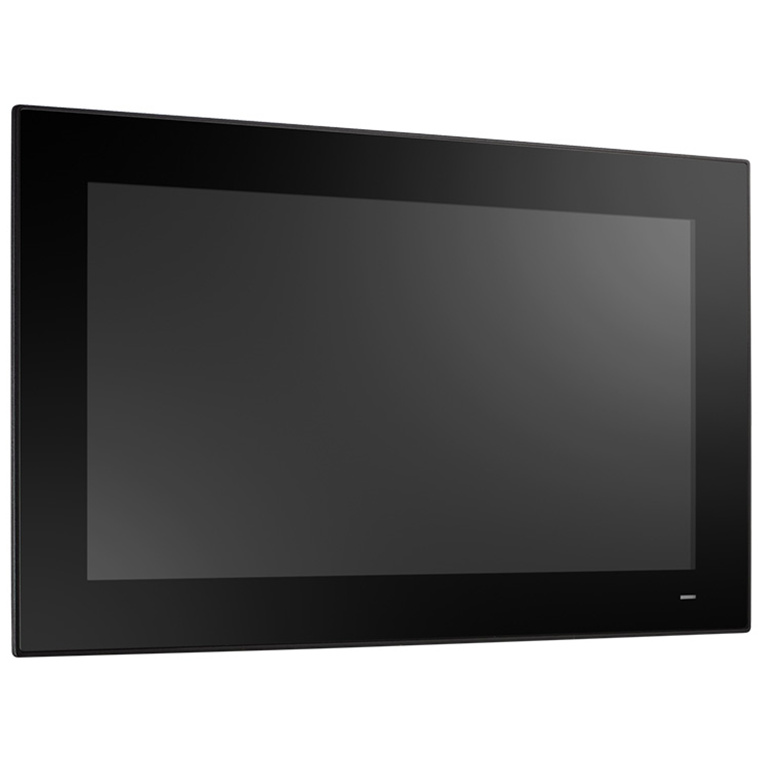

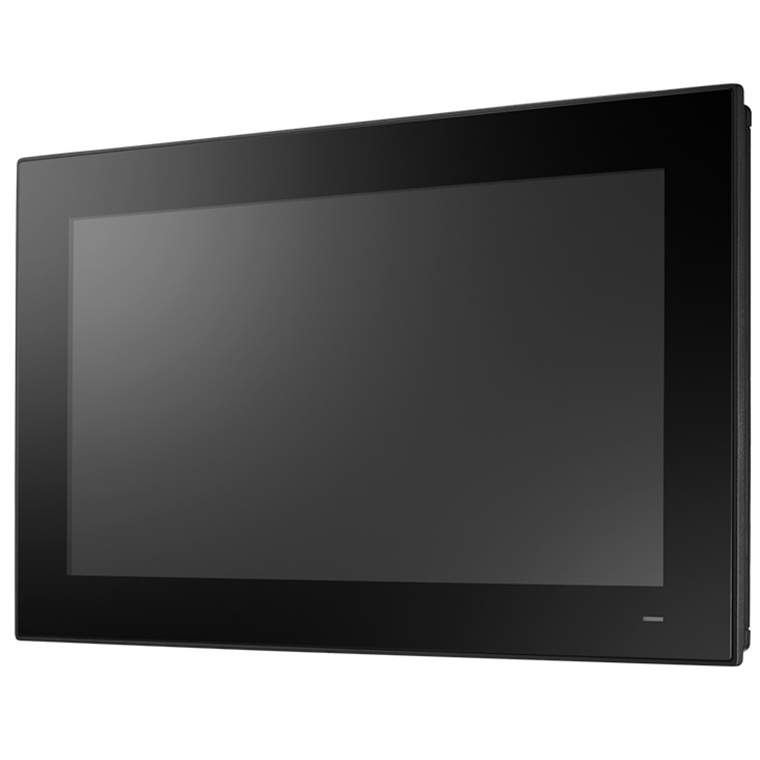

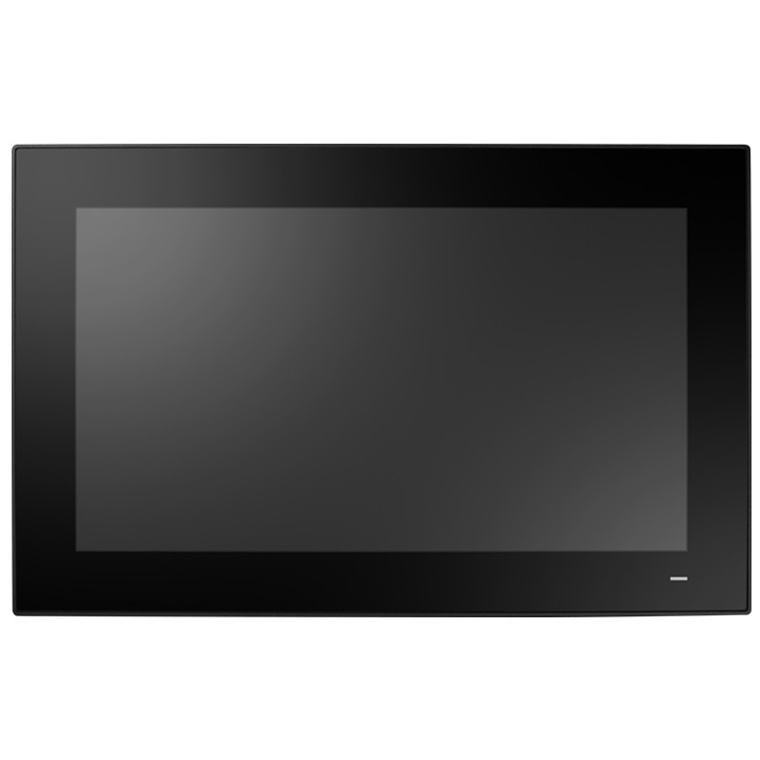

Designed for high-performance computing 13th gen applications, PPC-415W with a 15.6" FHD provides a superior human-machine interface and reliability, with multi-touch screen, rich I/O and aluminum alloy front bezel. The inclusion of PCIe/PCI slot for fieldbus or proprietary card expansion increases the system's compatibility for diverse applications. In addition, Time Sensitive Network(TSN)configuration integrated allows more possibilities for optimized industrial applications
- 15.6" true-flat Full HD LCD panel with projected capacitive touchscreen, anti-glare coating
- Intel® Core™ i5-1345URE processor with fanless system design
- Supports PCIe x4 or PCI expansion
- 1x isolated RS-422/485 with auto flow
- Wide input power range (9 ~ 32 VDC)
- Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- 3x Independent displays
- 1x M.2 bay (2242/2280) for storage only
- Support TPM2.0 hardware security
Specifications
General
MPN
PPC-415W-PD5A
Description
15.6" PPC w/Intel i5-1345URE, P-CAP
Hardware
Memory
2 x SO-DIMM Slot with DDR5 4800MHz
CPU
13th Gen. Intel® Core™ i5-1345URE 1.40GHz Deca-Core
Storage
1 x 2.5" SSD/HDD Bay, 1 x NVMe PCIe x 4/SATA M.2 slot (2242/2280 M-key)
LAN
2 x 10/100/1000/2500 Mbps
Ethernet
Intel® i226-LM
I/O
2 x RS-232, 1 x RS-422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP
Expansion
1 x M.2 E key 2230, 1 x PCIe x4 or 1 x PCI
Watchdog Timer
1~255 s
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Input
9~32 VDC
Power Consumption
105 W @ 19 VDC

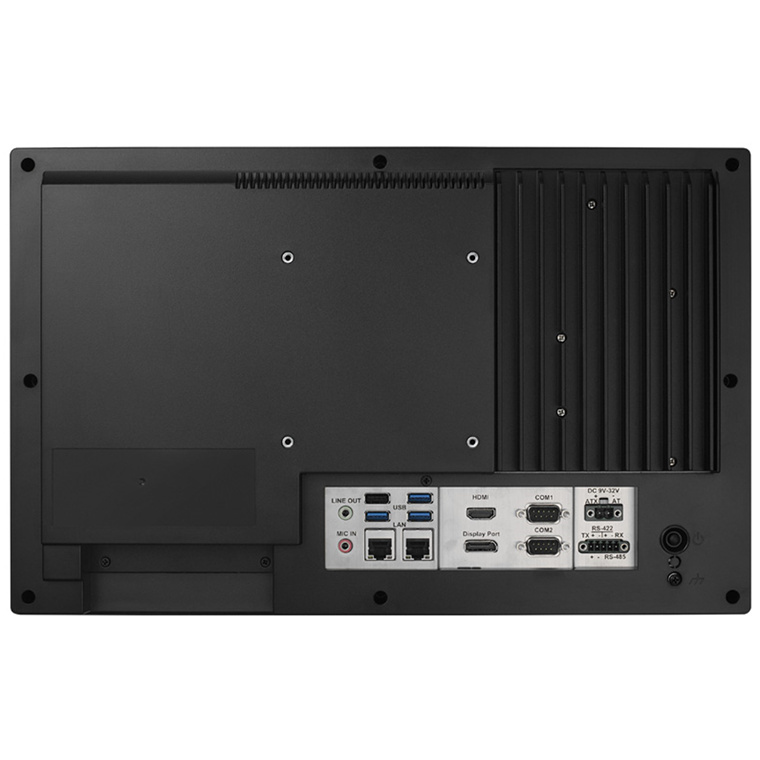

I/O Interface
Serial Ports
2 x RS-232, 1 x RS-422/485
Audio
Line-Out, Mic-In
Displays
1 x HDMI, 1 x DP
Power Connector
1 x 2-Pin Terminal Block
USB Vision
Connector
3 x USB 3.2 Type A,1 x USB 2.0 Type A
Mechanical
Dimension (W x H x D)
420 x 269 x 59 mm
Enclosure
Die-cast aluminum alloy, PC + ABS
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
5.4 kg (11.90 lb)
Environment
Relative Humidity
95% RH (non-condensing)
Vibration Protection
2 Grms, random
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-40~60°C (-40~140°F)
Shock Protection
10 G, half sine
Ingress Protection
Front Panel IP66
Touchscreen
Touch Type
PCAP
LCD Display
Display Size
15.6"
Max. Resolution
1920 x 1080
Viewing Angle (H/V°)
170/170
Luminance (cd/m2)
450
Backlight Life (hrs)
50,000
