Advantech PPC-417-RX6A 17" PPC w/Intel x6425E, Res.
- Brand: Advantech
- MPN: PPC-417-RX6A
- Part #: IPCAVH221316

Product URL: https://www.pbtech.com/au/product/IPCAVH221316/Advantech-PPC-417-RX6A-17-PPC-wIntel-x6425E-Res
Features

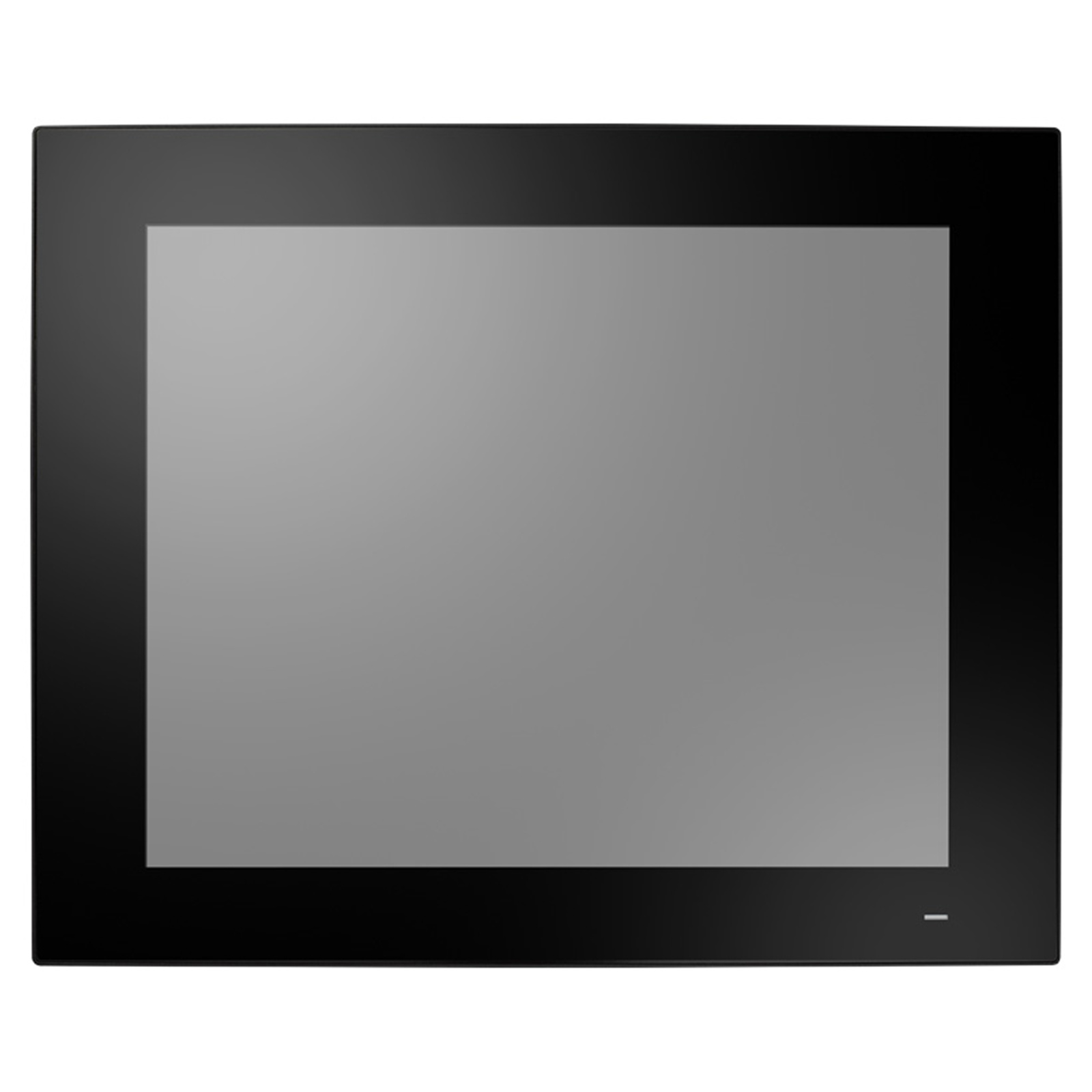

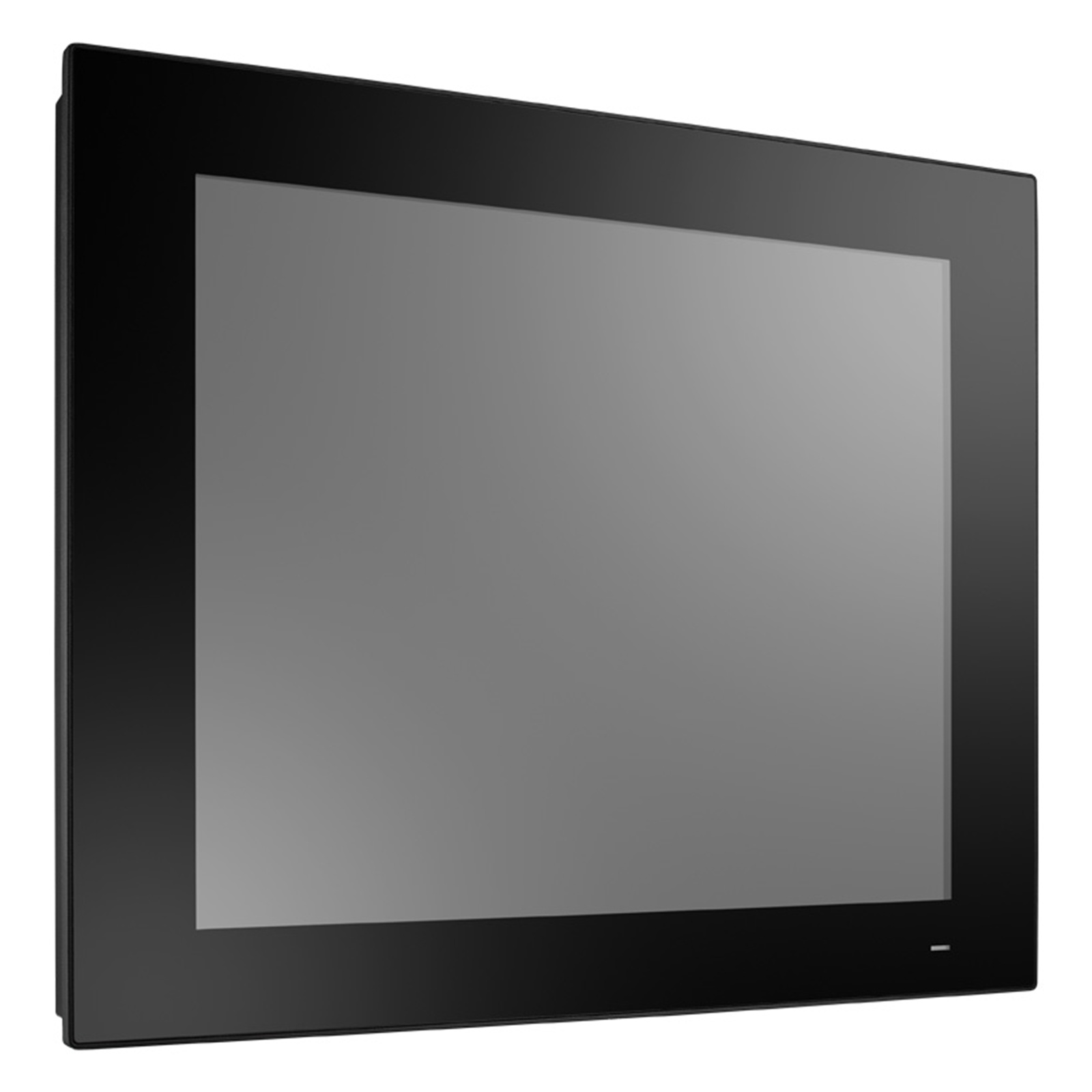

17" Fanless Panel PC with Intel® Atom™ x6425E Processor
- 17" SXGA TFT LCD with resistive (default)or projected capacitive(by request) touchscreen
- Intel® Atom™ x6425E quad-core, 2.0 GHz processor
- Fanless, slim design
- Supports 1 x 2.5" SATA and 1 x M.2 B key slot for expansion
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control
- Dual 2.5GBASE-T Ethernet supports Time-Sensitive Network(TSN) technology
Specifications
Hardware
CPU
Intel® Atom™ x6425E 2.0GHz Quad-Core
Memory
1 x DDR4 3200 MHz SDRAM Slot
Storage
1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5" SSD/HDD bay
LAN
2 x 10/100/1000/2500 Mbps
Ethernet
Intel® i226-LM
I/O
2 x RS-232, 1 x RS-422/485, 2 x USB 3.2, 2 x USB 2.0, 1 x Line Out, 1 x Mic In, 1 x HDMI, 1 x DP
Expansion
1 x M.2 E key 2230,1 x M.2 B key 2242/2280/3042/3052, 1 x PCIe x1 or 1 x PCI
Watchdog Timer
1~255 s
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Input
9~32 VDC
Power Consumption
65 W @ 19 VDC
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA

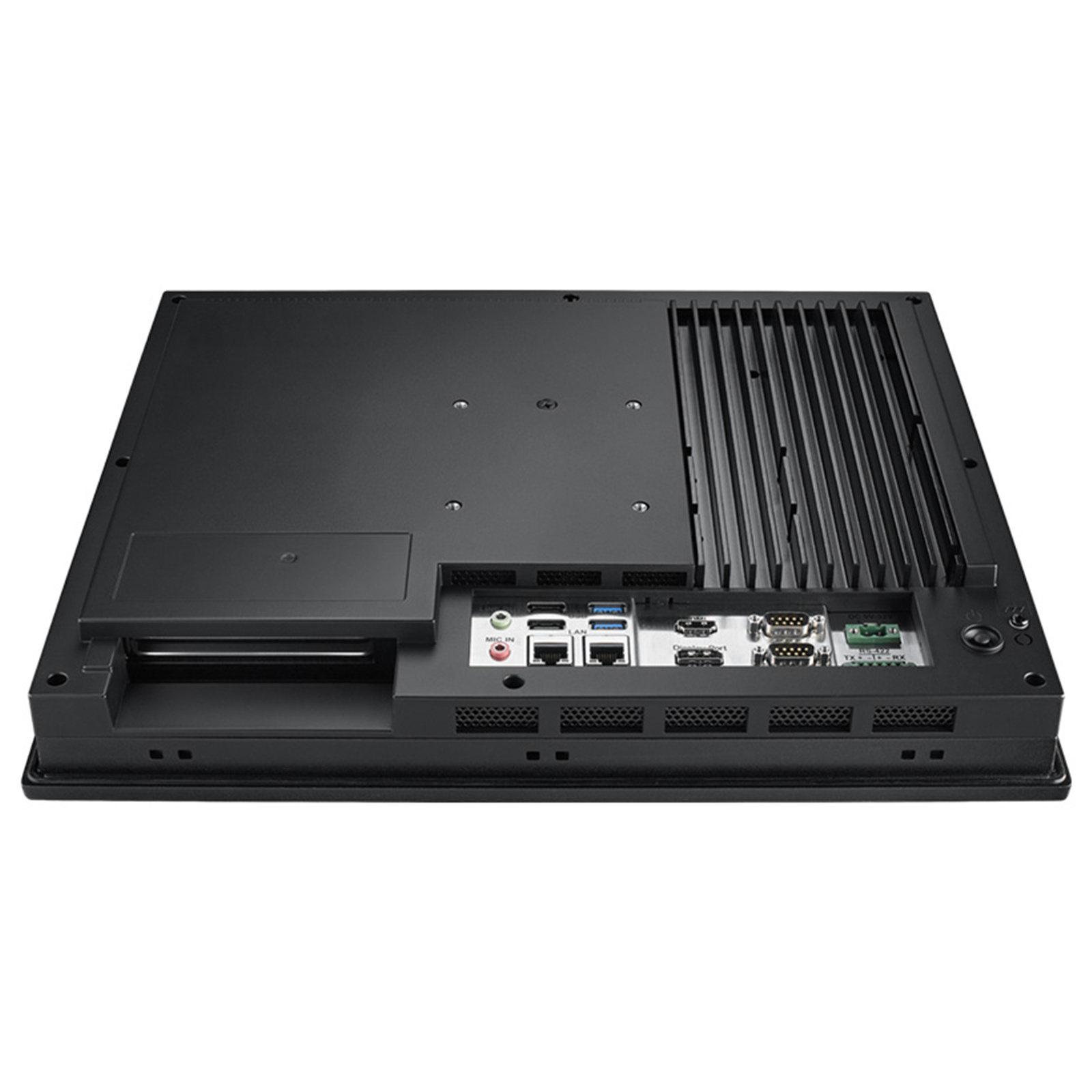

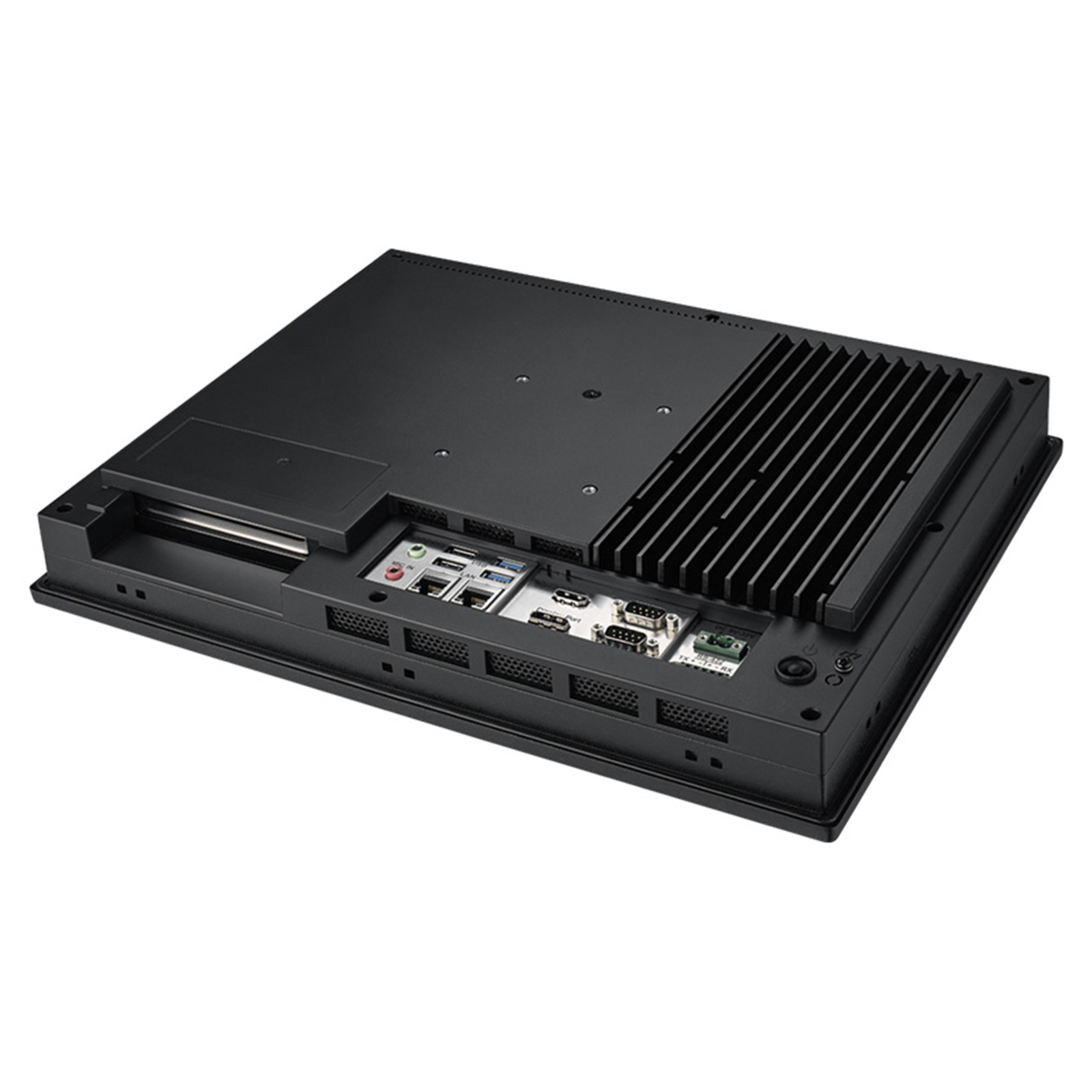

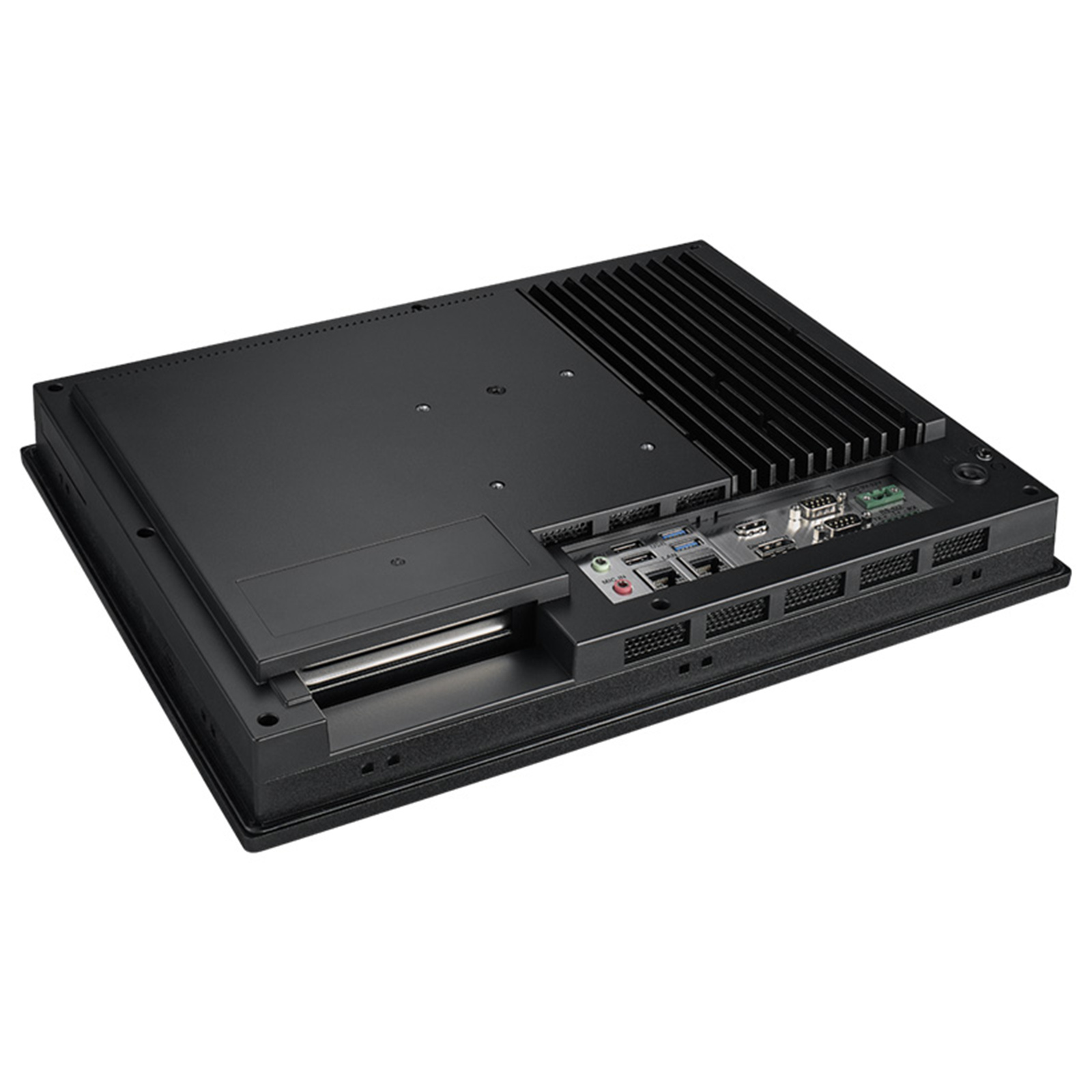

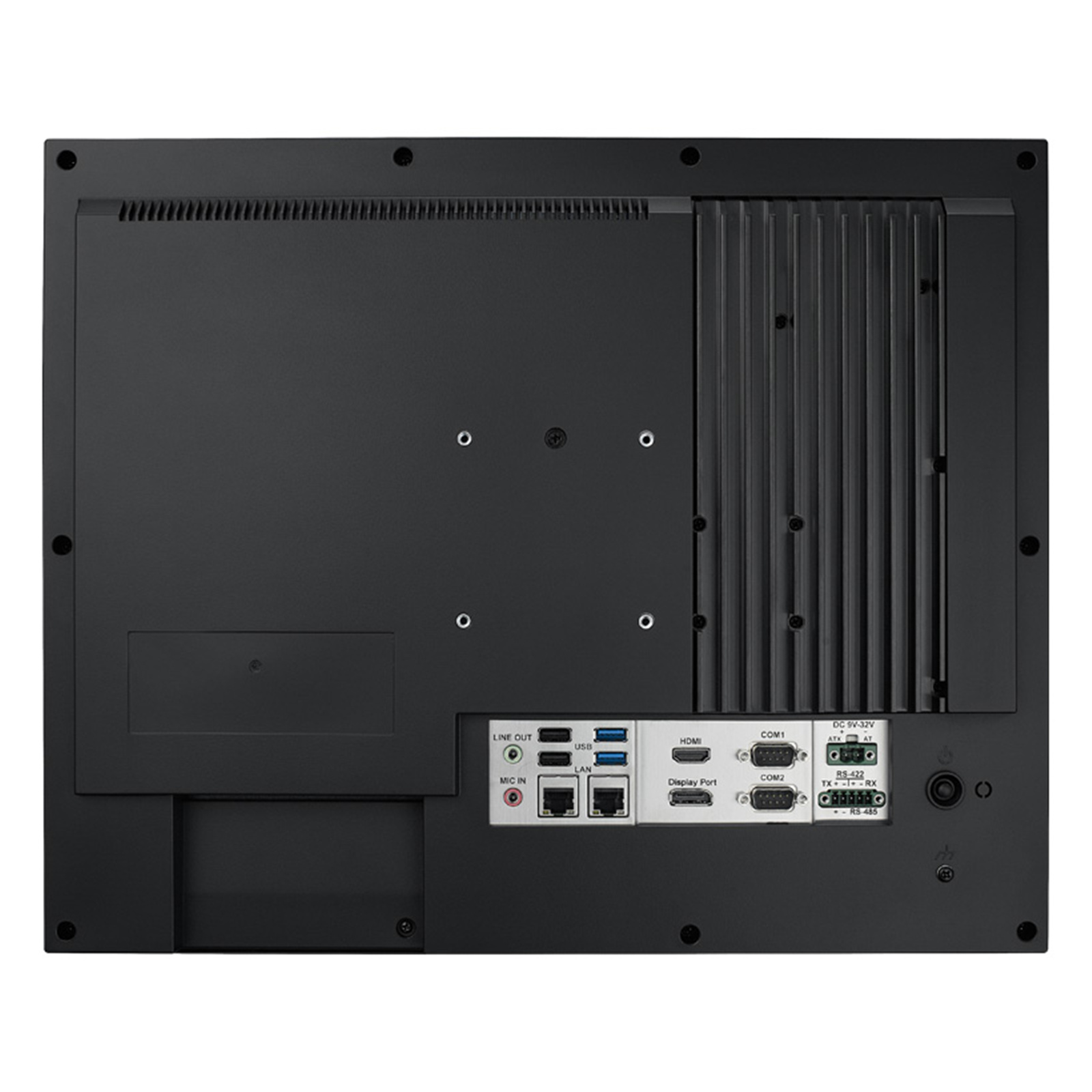

I/O Interface
Serial Ports
2 x RS-232, 1 x RS-232/422/485, 2 x RS-232 (Pin Header)
Audio
Line-Out, Mic-In
Displays
1 x HDMI, 1 x DP
Power Connector
1 x 2-Pin Terminal Block
USB Vision
Connector
2 x USB 3.2 Type A, 2 x USB 2.0 Type A
Mechanical
Dimension (W x H x D)
437 x 357 x 57 mm
Enclosure
Die-cast aluminum alloy, ABS
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
6.3 kg (13.89 lb)
Touchscreen
Touch Type
5-wire resistive
LCD Display
Display Size
17"
Max. Resolution
1280 x 1024
Viewing Angle (H/V°)
160/140
Luminance (cd/m2)
350
Backlight Life (hrs)
50,000
Environment
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-40~60°C (-40~140°F)
Relative Humidity
95% RH (non-condensing)
Shock Protection
10 G, half sine
Vibration Protection
2 Grms, random
Ingress Protection
Front Panel IP66
