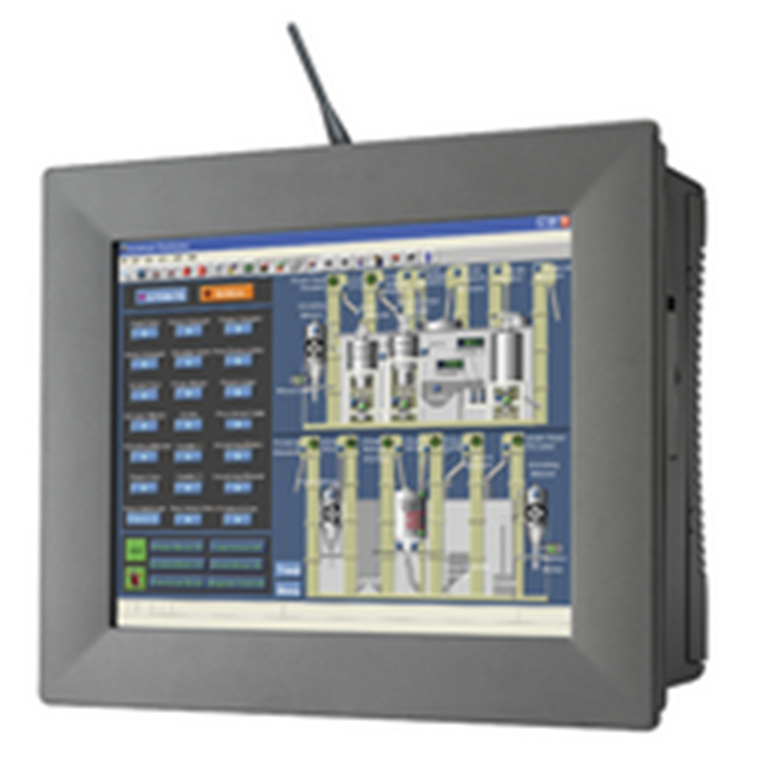

Advantech TPC-1071H-D3AE 10.4" SVGA, ATOM D525 1.8GHz/1M, 4GB

PB Tech price
PB Tech price
$ 2,619 .82
 +GST
$ 2,881 .80
 inc GST
$2,619.82  +GST
$2,881.80

Advantech TPC-1071H-D3AE 10.4" SVGA, ATOM D525 1.8GHz/1M, 4GB

  • Brand: Advantech
  • MPN: TPC-1071H-D3AE
  • Part #: IPCAVH221336
  • UPC:
PB Tech price
$ 2,619 .82 $ 2,881 .80
 +GST  inc GST


Delivery: Order now and it ships on 30 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$2,619.82  +GST
$2,881.80

Features

With a high quality TFT LCD display, TPC-1271H are designed with the Intel® Atom™ D525 processor as its core. The Intel® Atom™ has low power consumption and 1.8 GHz operating frequency. This system is fanless although the kernel is powerful. In addition, spindle-free storage makes the TPC-1271H are durable and reliable platforms. For applications where spindle-free storage is not critical, a fast-access HDD module can be used. The rich I/O portfolio meets diverse requests.

- Intel® Atom™ processor up to 1.8 GHz
- 12.1" SVGA TFT LCD
- Compact design with die-cast Al front bezel
- Fanless cooling system
- NEMA4/IP65 compliant front panel
- PCIe and Mini PCIe expansion support
- 8 DI/O and backup SRAM support
- Supports DDR3 SDRAM
- Serial port isolation protection
- Automatic data flow control RS-485
- Gigabit Ethernet supported
- Supports Microsoft® WES7/XP/WES/WinCE

Specifications

MPN

TPC-1071H-D3AE
10.4" SVGA Touch Panel PC, D525 1.8 GHz, 4 GB

General

BIOS

AMI

Certifications

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

286 x 227 x 70.3 mm
(11.26" x 8.94" x 2.76")

Enclosure

Front bezel: Die-cast Aluminum alloy
Back housing: ABS + PC

Mounting

Desktop, Wall or Panel Mount

OS Support

Microsoft® WES7/XP/WES/ WinCE5.0/6.0

Power Consumption

17W

Power Input

10~29 VDC

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

3.5 kg (7.72 lbs)

System Hardware

CPU

Intel® Atom™ D525 1.8 GHz with 1MB cache

Chipset

ICH8M

Memory

4GB SO-DIMM DDR3 SDRAM

LAN

10/100/1000Base-T x 2

Expansion Slots

Full-size PCI-E or Mini PCI-E

Storage

CompactFlash® slot x 1
2.5" SATA HDD x 1 (Optional)

I/O

RS-232 x 2 (COM1, 2) with isolation
RS-422/485 x 1 (COM3) with isolation and auto data flow control
USB 2.0/1.1 x 2 (Host)
PS/2 x 1

DI/DO & backup SRAM

8 x DI/DO with isolation and backup 1MB SRAM

LCD Display

Display Type

SVGA TFT LCD

Display Size

10.4"

Max. Resolution

800 x 600

Max. Colors

262 K

Luminance (cd/m²)

400

Viewing Angle (H/V°)

120/100

Backlight Life

50,000 hrs

Contrast Ratio

400:1

Touchscreen

Lifespan

10 million touches at single point

Light Transmission

Above 75%

Resolution

Linearity

Type

5-wire, analog resistive

Environment

Humidity

10 ~ 95% RH @ 40°C, non-condensing

Ingress Protection

Front panel: NEMA4, IP65

Operating Temperature

0 ~ 50°C (32 ~ 122°F)

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Vibration Protection

With HDD: 1 Grms (5 ~ 500 Hz)
(Operating, random vibration)

Manufacturer Part No:
TPC-1071H-D3AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221336
Product Model:
TPC-1071H-D3AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
