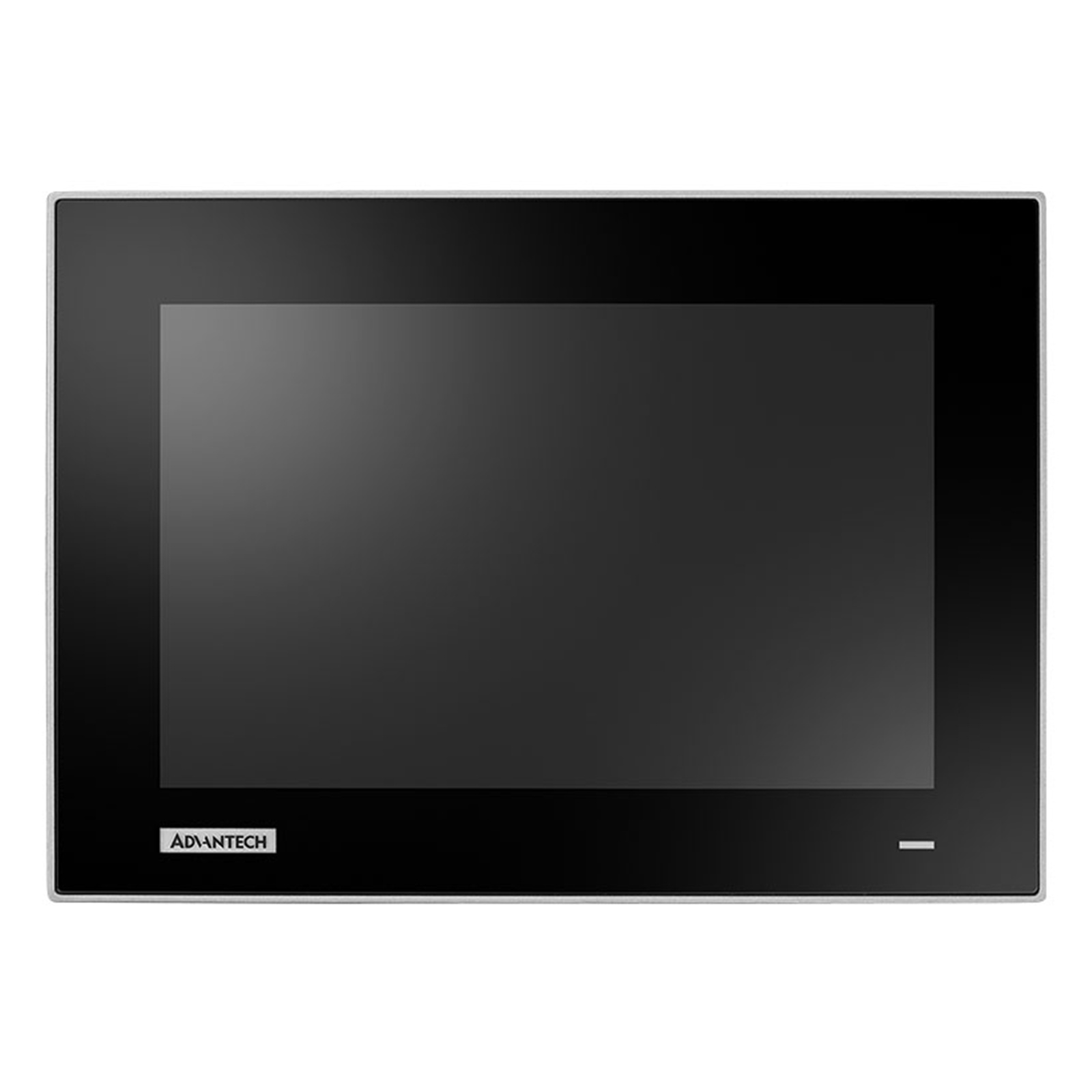

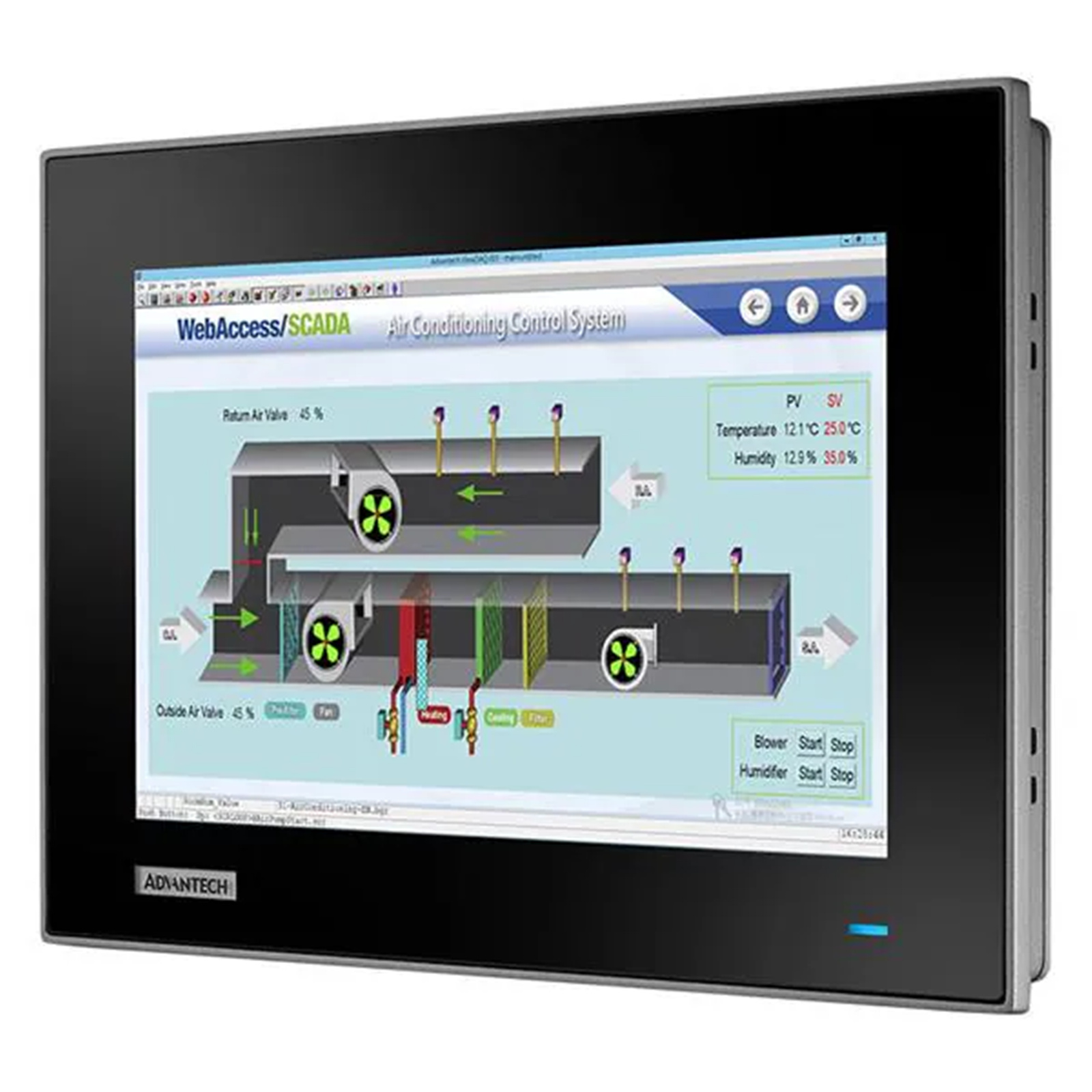

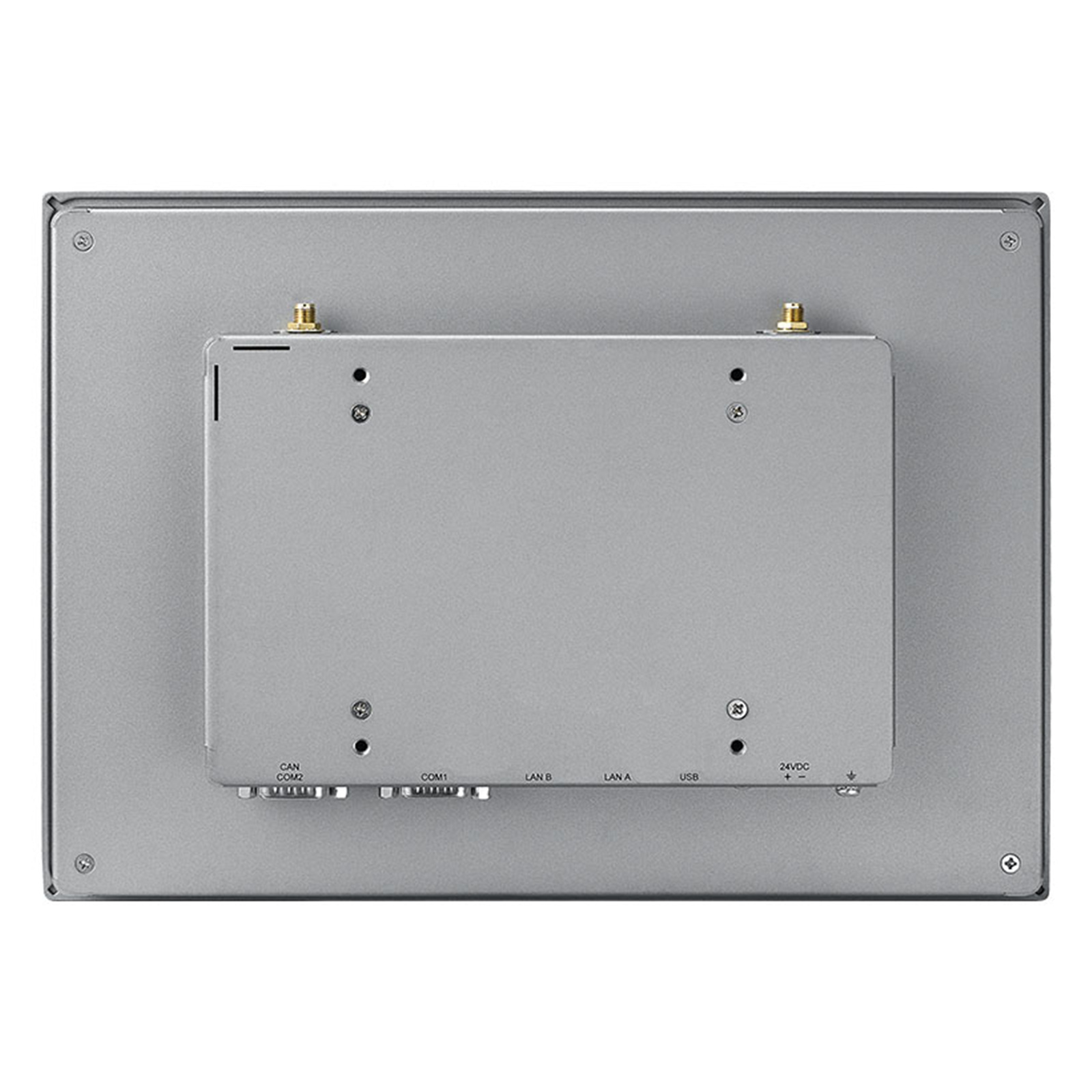

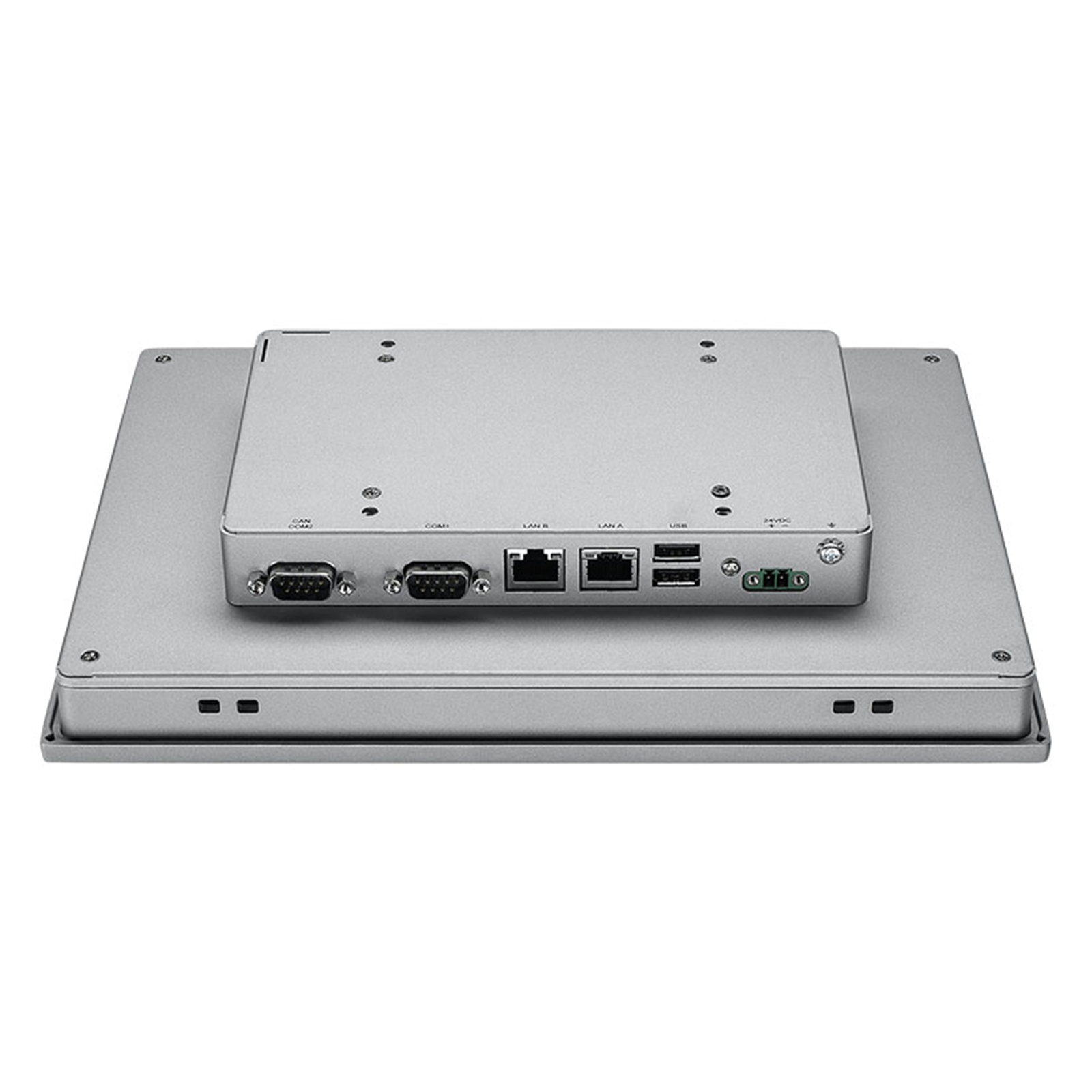

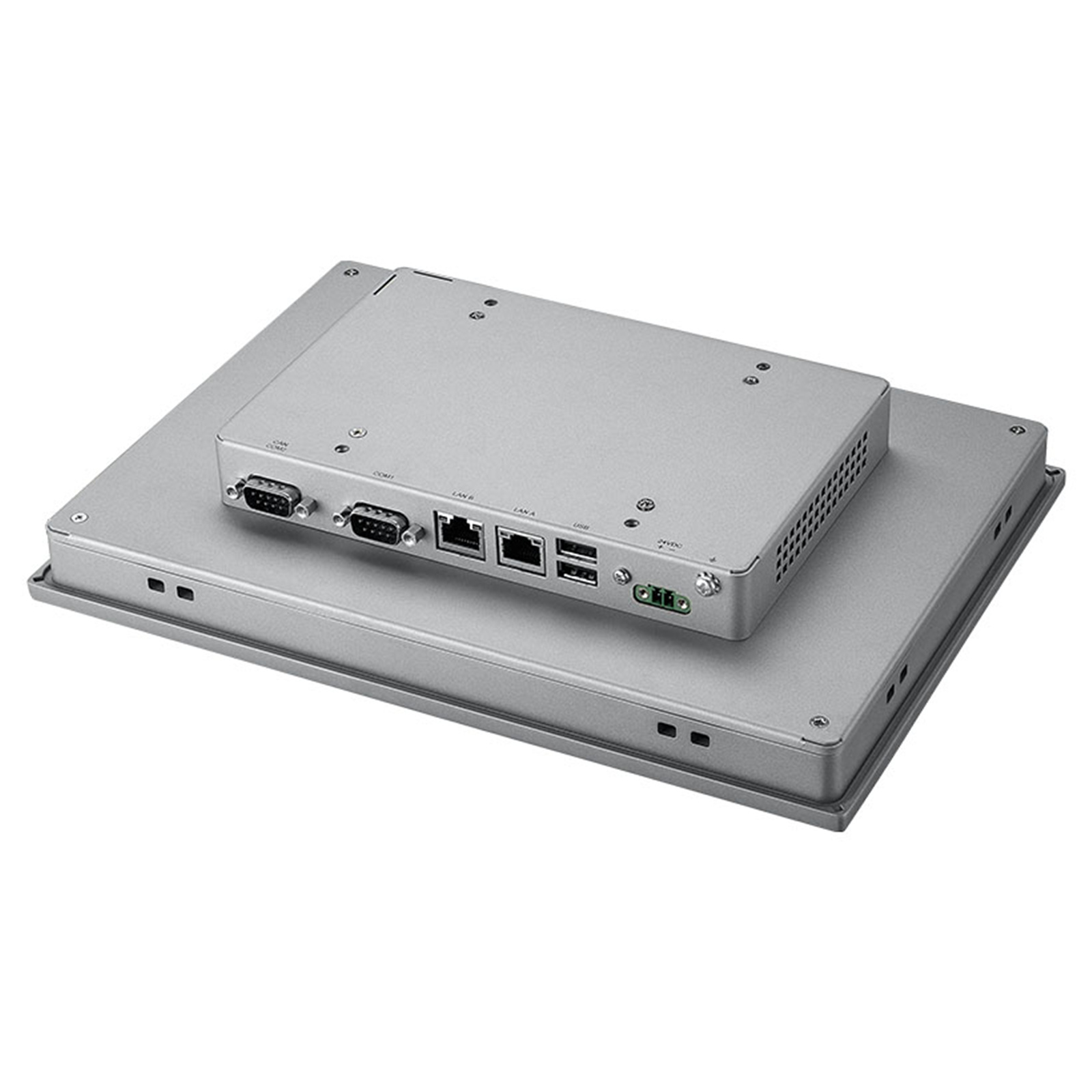

Advantech TPC-110W-N31AB 10.1" WXGA Touch Panel Computer with ARM Cortex -A53 Processor,Android 10
- Brand: Advantech
- MPN: TPC-110W-N31AB
- Part #: IPCAVH221339

Product URL: https://www.pbtech.com/au/product/IPCAVH221339/Advantech-TPC-110W-N31AB-101-WXGA-Touch-Panel-Comp
Features
[Android] 10.1" Touch Panel Computer with ARM Cortex™-A53 Processor
- arm SystemReady IR certified
- NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor
- 10.1" 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel
- Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard
- 2 x 10/100/1000 Mbps LANs with optional IEEE 802.3at/af PoE-PD module support
- 1 mb FRAM backup memory for unexpected power interruptions
- 2 x Serial port with 120O termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
- Embedded browser and for rapid Web App development
- Supports Android
Specifications
Touchscreen
Touch Type
PCAP
LCD Display
Luminance (cd/m2)
500
Max. Resolution
1280 x 800
Display Size
10.1"
Backlight Life (hrs)
50,000
Mechanical
Mounting
VESA, Panel
Enclosure
Die cast magnesium alloy, Die-casting aluminum
Weight (Net)
4 kg
Environment
Relative Humidity
95% RH (non-condensing)
Hardware
CPU
NXP® ARM® Cortex™ A53 i.MX8M 1.6 GHz Quad-Core
Memory
1 x LPDDR4 with 4 GB
Storage
16 GB eMMC
LAN
10/100/1000Base-T Ethernet x 2
I/O
1 x RS-232, 1 x RS-232/422/485
Hardware Security
TPM 2.0
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
OS Support
Android
Power Input
24 VDC ±20%
Wireless Communication
Standard (Technology)
WIFI
I/O Interface
USB Ports
2 x USB 2.0
