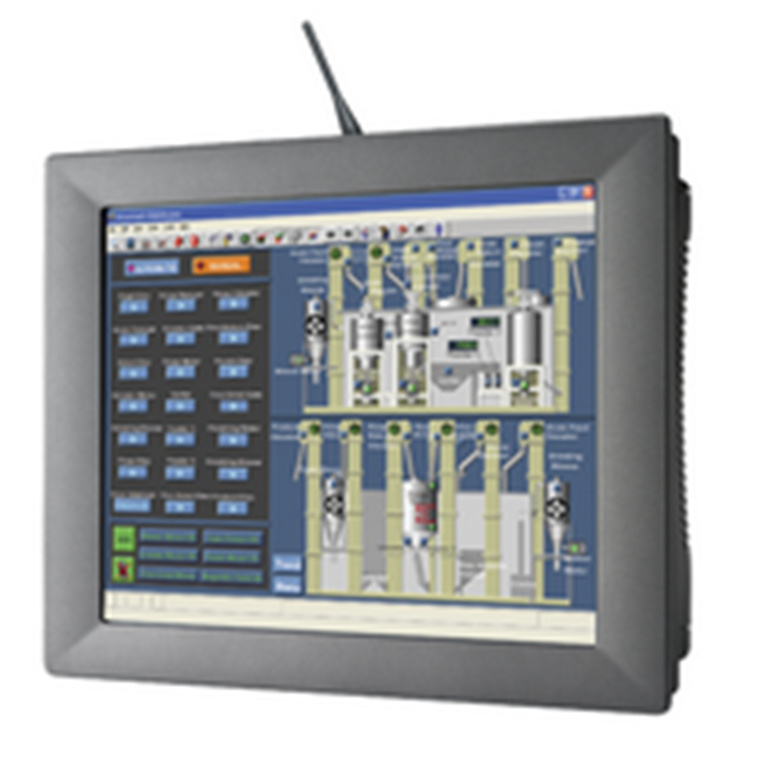

Advantech TPC-1271H-D3AE 12.1" SVGA, ATOM D525 1.8GHz/1M, 4GB
- Brand: Advantech
- MPN: TPC-1271H-D3AE
- Part #: IPCAVH221346

Product URL: https://www.pbtech.com/au/product/IPCAVH221346/Advantech-TPC-1271H-D3AE-121-SVGA-ATOM-D525-18GHz1
Features
The TPC-1271H features a fanless low power consuming Intel® Atom™ Dual Core 1.8GHz processor 4GB DDR3 SDRAM and Resistive touch screen, and multiple I/O ports 2 x RS-232 with isolation, 1 x RS-422/485 with isolation. For data storage the fanless TPC devices also include: 1 x Compact Flash Slot and 1 x 2.5" SATA HDD. To expand function, this model provides PCIe and mini-PCIe expansion slots, an integrated 16-channel Digital I/O with isolation and 1MB Battery-backed SRAM.
- Intel® Atom™ D525 1.8 GHz processor
- 12.1" SVGA TFT LED LCD
- Compact design with die-cast Al alloy front bezel
- Fanless cooling system
- IP65 approved front panel
- PCIe and Mini PCIe expansion support
- Supports 4 GB DDR3 SDRAM
- Integrated 16-channel Digital I/O with isolation
- 1 MB Battery-backed SRAM
- Serial port isolation protection
- Automatic data flow control RS-485
- Supports external antenna for wireless communication
- Supports field-bus communication for PLC connectivity
Specifications
MPN
TPC-1271H-D3AE
12.1" SVGA Touch Panel PC, D525 1.8 GHz, 4GB
Back housing
ABS + PC
Backlight Life
50,000 hrs
BIOS
AMI
Chipset
ICH8M
Contrast Ratio
700:1
Cooling System
Fanless design
CPU
Intel Atom D525 1.8 GHz with 1MB cache
DI/DO & backup SRAM
8 x DI/DO with isolation and backup 1MB SRAM
Dimensions (W x H x D)
311 x 237 x 73.1 mm (12.24" x 9.33" x 2.88")
Display Size
12.1"
Display Type
SVGA TFT LED LCD
Enclosure
Front bezel: Die-cast Aluminum alloy
Humidity
10 ~ 95% RH @ 40°C, non-condensing
I/O
RS-232 x 2 (COM1, 2) with isolation
RS-422/485 x 1 (COM3) with isolation and auto data flow control
USB 2.0/1.1 x 2 (Host)
PS/2 x 1
Ingress Protection
Front panel: IP65
LAN
10/100/1000Base-T x 2
Lifespan
10 million touches at single point
Light Transmission
Above 75%
Luminance cd/m²
450
Max. Colors
262 K
Max. Resolution
800 x 600
Mounting
Desktop, Wall or Panel Mount
Operating Temperature
0 ~ 55°C (32 ~ 131°F)
OS Support
Microsoft® Windows 7/WES7/WES 2009/XPE/CE 6.0/Linux / Android
Power Consumption
20W (typical)
Power input
10~29 VDC
Resolution
Linearity
Storage
CompactFlash® slot x 1
2.5" SATA HDD x 1 (Optional)
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Type
5-wire, analog resistive
Vibration Protection
With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
Viewing Angle (H/V°)
160/140
Watchdog Timer
1 ~ 255 sec (system)
Weight (Net)
4.57 kg (10.07 lbs)
