Features

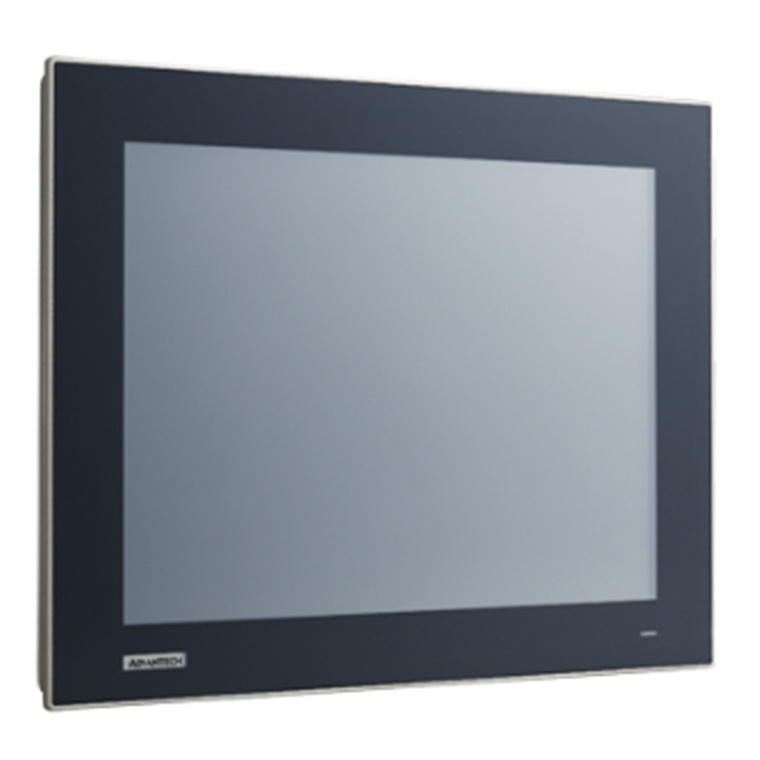

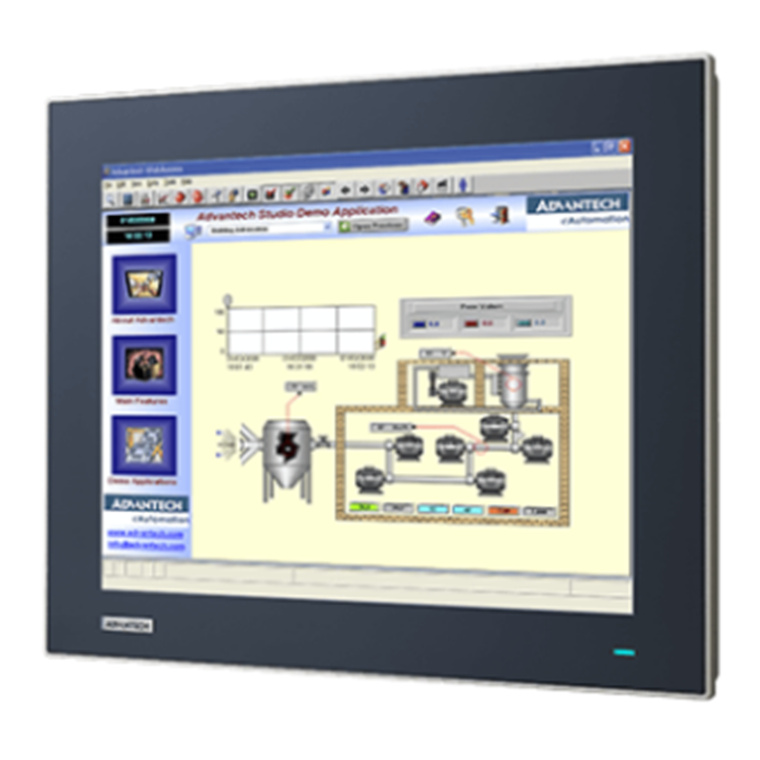

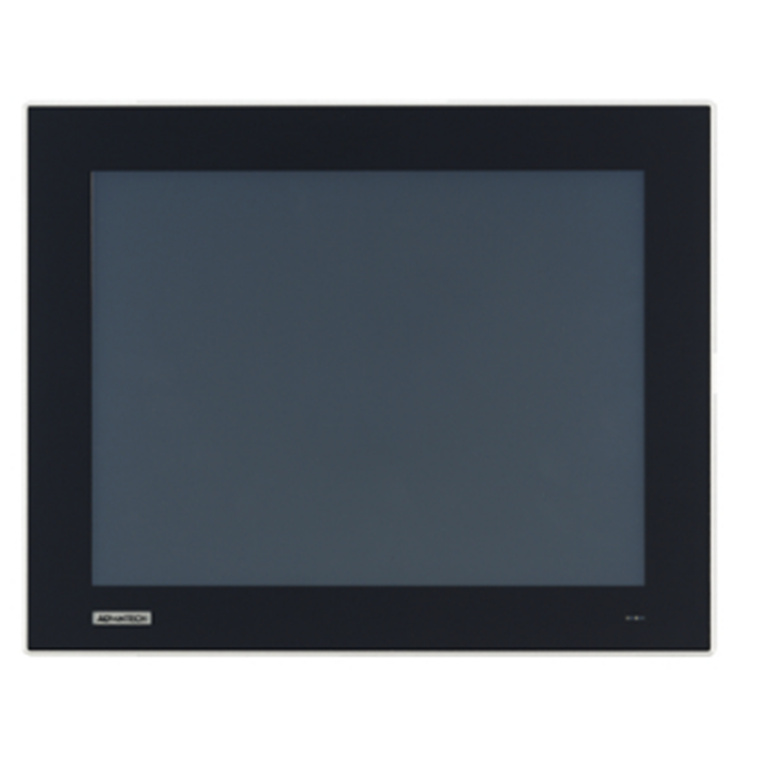

The TPC-155H thin-client terminal is equipped with a 15" XGA TFT LED LCD, low-power Intel® Atom™ E3845, 1.91GHz, quad-core processor, 4 GB DDR3L SDRAM and 64 GB SSD, TPC-155H delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, TPC-155H supports
a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wire resistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and 100 x 100 VESA mount kit. TPC-155H has been C1D2 certified for the applications in hazardous environments. Moreover, with the provision of a full-size mini PCIe slot that supports mSATA signals and Advantech's iDoor technology, TPC-155H can be easily expanded to provide additional I/O ports, isolated digital I/O, fieldbus protocols, MRAM, and 3G/GPS/GPRS/Wi-Fi communication capabilities.

- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- Intel® Atom™ E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM and 64G SSD
- In-cabinet Design with True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- UL C1D2 certified HMI for Hazardous environments
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Advantech iDoor technology and SSD/HDD bay
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports VESA mount (100 x 100 mm)
- Supports Advantech's SNMP Subagent software
- Supports Advantech's WISE-PaaS/RMM remote management software

For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-155H/file/TPC-155H_DS(092624)20240926135607.pdf

Specifications

MPN

TPC-155H-E3BE

General

BIOS

AMI UEFI

Certification

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

383.2 x 307.3 x 55.9 mm (15.09 x 12.10 x 2.2 in)

Enclosure

Front bezel: Die-cast aluminum alloy
Back housing: SECC

Mount Options

Desktop/wall/panel

OS Support

Microsoft® WES7 (32/64-bit), Windows 7 (32/64-bit), Windows 10 Enterprise LTSB

Power Consumption

50.8W (typical)

Power Input

24 VDC +/- 20%

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

4.4 kg (9.7 lb)

System Hardware

CPU

Intel® Atom™ E3845, 1.91 GHz, quad core

Memory

1 x SODIMM with 4 GB DDR3L SDRAM (up to 8 GB)

LAN

2 x Intel® I210; 10/100/1000 BASE-T

Expansion Slots

1 x Full-size mini PCIe with mSATA support

Storage

1 x 2.5" SATA SSD, default 64 GB SSD

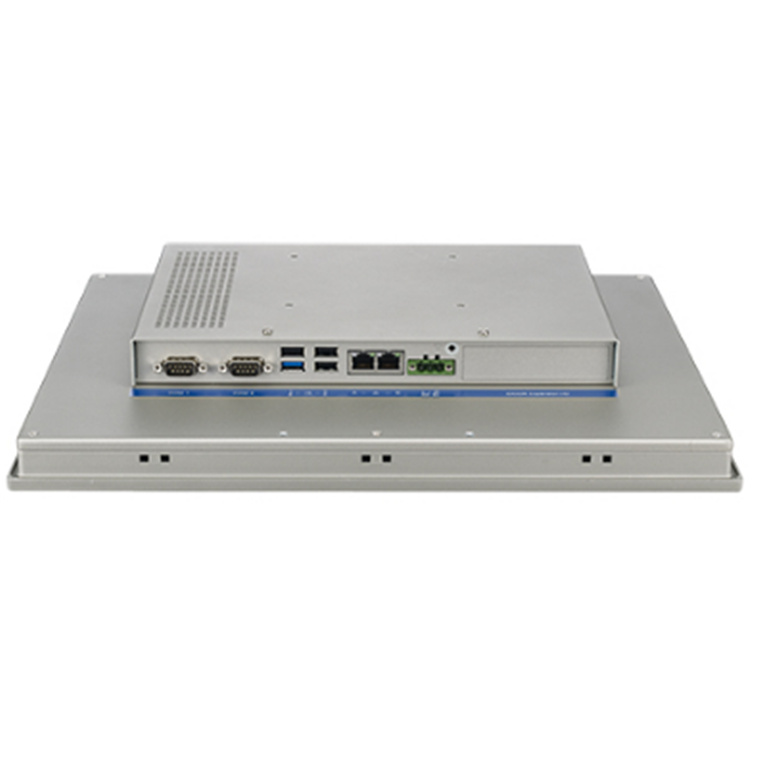

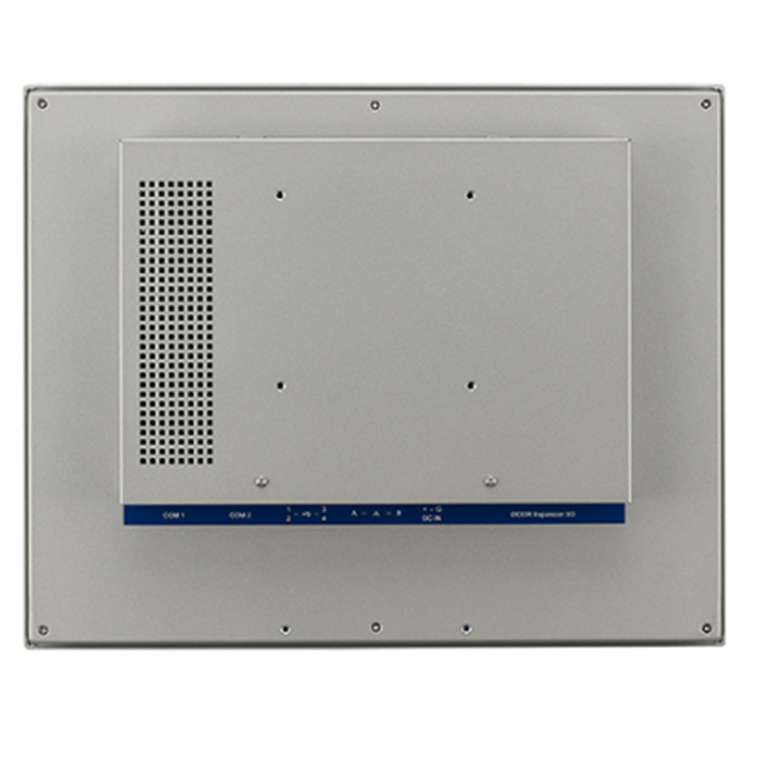

I/O

1 x RS-232
1 x RS-232/422/485
1 x USB 3.0
3 x USB 2.0
1 x iDoor slot

LCD

Display Type

XGA TFT LED LCD

Display Size

15"

Max. Resolution

1024 x 768

Max. Colors

16.2M

Luminance

300 cd/m²

Viewing Angle (H/V°)

176/176

Backlight Life

70,000 hr

Contrast Ratio

2000:1

Touchscreen

Lifespan

36 million touches at a single point

Light Transmission

Above 75%

Resolution

Linearity

Type

5-wire analog resistive

Environment

Humidity

95% RH @ 40 °C, non-condensing

Ingress Protection

IP66-rated front panel

Operating Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Storage Temperature

-30 ~ 70 °C (-22 ~ 158 °F)

Vibration Protection

With SSD: 1 Grms (5 ~ 500 Hz)
(operating, random vibration)

Manufacturer Part No:

TPC-155H-E3BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

5.7 kg

PB Part No:

IPCAVH221351

Product Model:

TPC-155H-E3BE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
