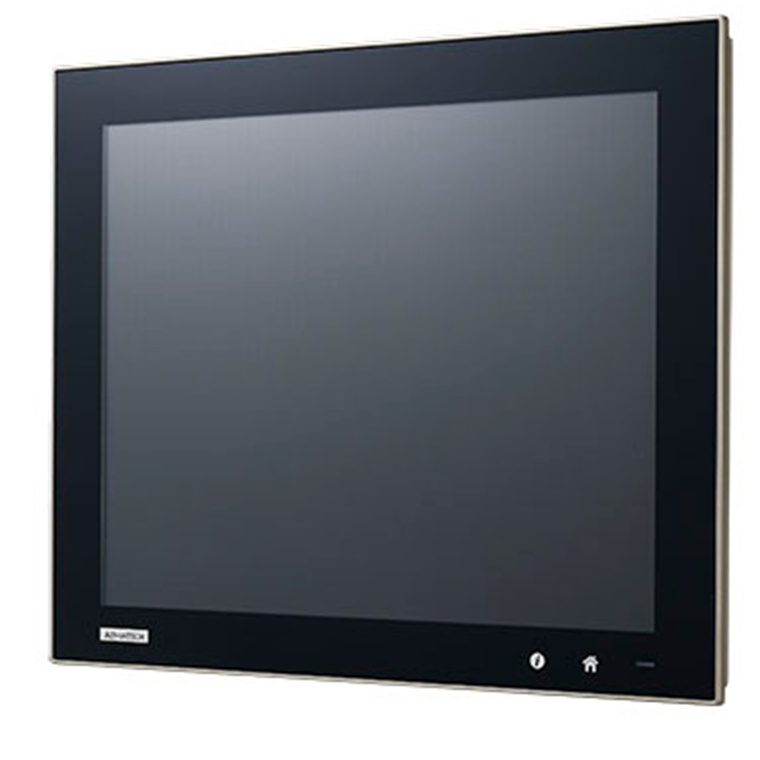

Advantech TPC-2151T-J12BE Modular TPC New 15" XGA PCT Celeron J3345 4GB

PB Tech price

$ 2,420 .65

+GST

$ 2,662 .72

inc GST

Advantech TPC-2151T-J12BE Modular TPC New 15" XGA PCT Celeron J3345 4GB

Brand: Advantech
MPN: TPC-2151T-J12BE
Part #: IPCAVH221362
UPC:

PB Tech price

$ 2,662 .72

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-2151T-J12BE
Part #: IPCAVH221362
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The TPC-2000 series is the first modular range of Advantech's industrial thin-client offerings. TPC-2000 series comprise a computing box module and a display module, featuring a low-power Intel® Atom® E3940/Celeron® J3455 with 4GB of DDR3L SODIMM and an industrial-grade LCD with 6H surface hardness and P-CAP or 5-wire resistive touch control, TPC-2000 series systems offer a sufficient display area and excellent computing performance in a compact, fanless form factor. The modular design ensures flexible configuration according to usage requirements and easy maintenance/upgrades. The system's robust enclosure is equipped with a die-cast aluminum alloy front bezel and IP66 rating for protection from dust and water ingress, making the TPC-2000 series suitable for harsh environments. TPC-2000 systems also feature a mini-PCIe slot that can be used to integrate Advantech's iDoor technology to support additional I/O, isolated digital I/O, fieldbus protocols, 3G/GPS/GPRS communication, and MRAM in order to satisfy the requirements of various industrial automation applications. Moreover, optional Wi-Fi/NFC can be built into the front panel for enhanced connectivity and signal reception.

- Intel Atom E3940 quad-core, 1.60 GHz/Celeron J3455 quad-core, 1.50 GHz, processor with 4GB DDR3L SODIMM
- Modular design enables flexible configuration and easy maintenance and upgrades
- Front panel module with P-CAP multi-touch sensor available in various sizes (the 12.1" module is equipped with 5-wire resistive touch control)
- Industrial-grade LED LCD with a lifetime of 50,000 hours (18.5" 30,000 hours)
- Built-in intelligent home key and i-key (only for models with P-CAP touch control)
- System status LED indicators in front panel
- Supports 1 x full-size mini PCIe, 1 x iDoor module, and 1 x HDD bay
- IP66-rated front panel and panel mount
- Optional Wi-Fi antenna and NFC reader on front panel
- Integrated power isolation to minimize field interference
- Supports Advantech's WISE-PaaS/RMM remote device management software
- Up to 3 levels of logo customization (optional)

For more infomation: https://advdownload.advantech.com/productfile/PIS/TPC-2121T/file/TPC-2000-Series_DS(010521)20210105172304.pdf

Specifications

MPN

TPC-2151T-J12BE
Modular TPC with 15" XGA LCD, Intel® Celeron® J3455 quadcore (1.50 GHz) processor, 4 GB RAM, and P-CAP touch control

General

BIOS

AMI UEFI

Certification

BSMI, CCC, CE, FCC Class A, UL, EAC

Cooling System

Fanless design

Enclosure

Front bezel: Die cast aluminum alloy
Back housing: SECC

Mount Options

Panel mount kit; VESA mount kit (optional)

OS Support

Windows 10 IoT Enterprise LTSB Entry

Power Input

24 VDC ± 20%

Power Consumption

Typ. 24W; Max. 55W

Watchdog Timer

~ 255 sec (system)

System Hardware

CPU

Intel Atom E3940, 1.60 GHz/Celeron J3455, 1.50GHz

Memory

4 GB of DDR3L 1600 MHz SODIMM SDRAM
(up to 8 GB)

LAN

2 x Intel® I210 10/100/1000BASE-T

Expansion Slots

1 x full-size mini PCIe with support for a GSM 11.11 SIM card

Storage

1 x M.2 (2242)
1 x 2.5" SATA SSD

I/O

2 x RS-232/422/485
2 x USB 3.0
2 x USB 2.0
1 x Audio line out
1 x DisplayPort 1.2 out

Environment

Humidity

10 ~ 95% RH @ 40 °C, non-condensing

Ingress Protection

IP66 rating for the front panel

Vibration Protection

With SSD: 1 Grms (5 ~ 500 Hz) (operating, random vibration)

Operating Temperature

-0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-40 ~ 60 °C (-40 ~ 140 °F)

Manufacturer Part No:

TPC-2151T-J12BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221362

Product Model:

TPC-2151T-J12BE

Warranty: 12 months *
