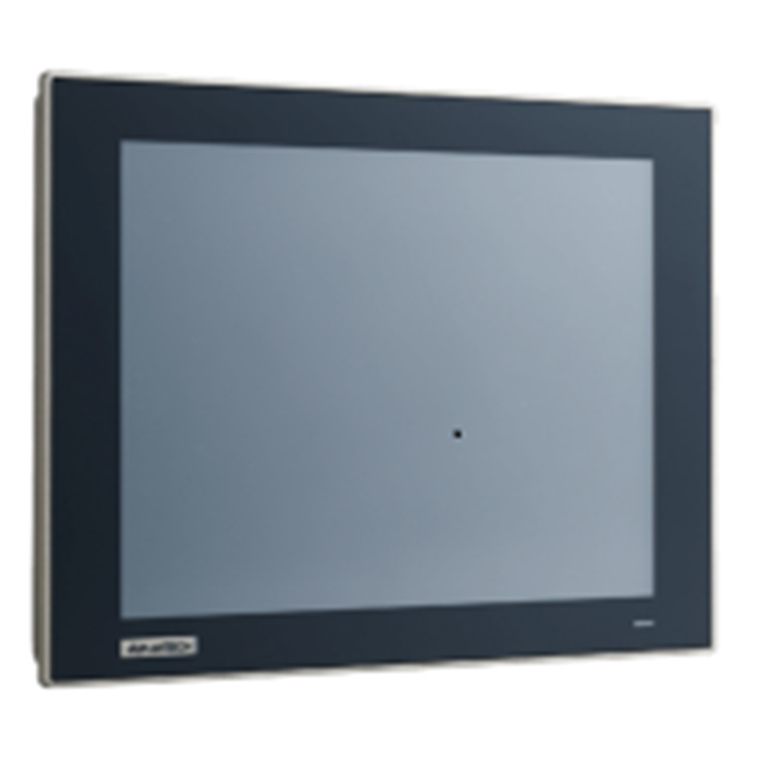

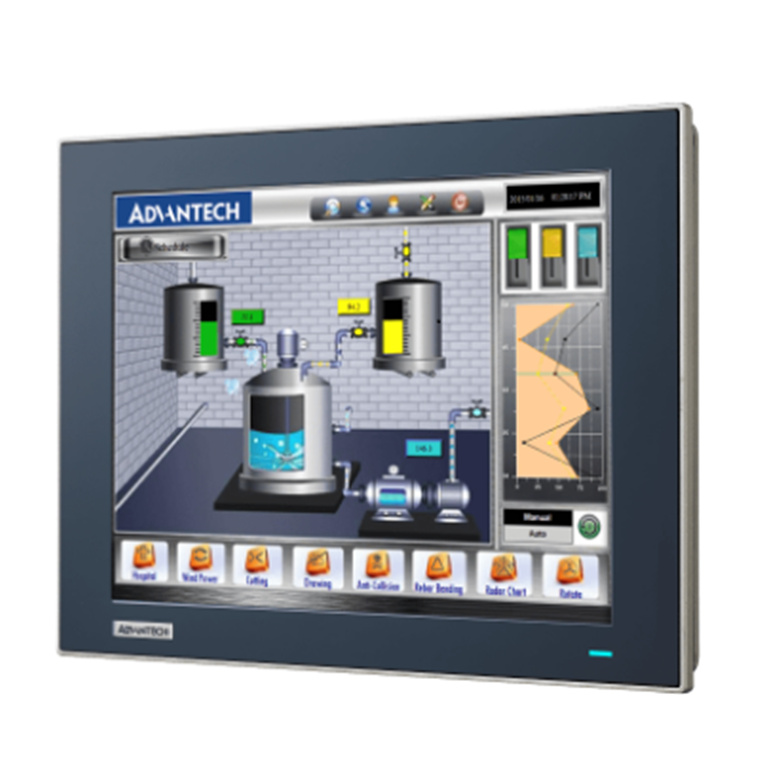

Advantech TPC-312-RE22A 12.1" XGA Thin Client Terminal Elkhart Lake Atom X6425E , 2.0GHz, DDR4 4G

PB Tech price

$ 1,865 .21

+GST

$ 2,051 .73

inc GST

Advantech TPC-312-RE22A 12.1" XGA Thin Client Terminal Elkhart Lake Atom X6425E , 2.0GHz, DDR4 4G

Brand: Advantech
MPN: TPC-312-RE22A
Part #: IPCAVH221367
UPC:

PB Tech price

$ 2,051 .73

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-312-RE22A
Part #: IPCAVH221367
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

TPC-3xx EHL thin-client terminal is a industrial panel PC model equipped with TFT LCD, low-power Intel® Atom™ x6425E 2.00 GHz quad-core / Celeron® J6412 2.00 GHz quad-core processor. TPC-3xx EHL delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, TPC-3xx EHL supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wire resistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and bult-in 100 x 100 VESA mount. Moreover, with the provision of one full-size mini PCIe slot, which supports USB/PCIe interface for Advantech's iDoor technology, TPC-3xx EHL can be easily expanded to provide additional I/O ports, isolated digital I/O, fieldbus protocols, MRAM, and 5G/GPS/GPRS/Wi-Fi communication capabilities.

- Industrial-grade 12.1" XGA TFT LCD with 50K lifetime and LED backlight
- Intel® Elkhart Lake (EHL) Atom™ 6425E 2.00 GHz quad-core / Celeron® J6412 2.00 GHz quad-core processor with 4 GB DDR4 SDRAM
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Built-in Advantech iDoor technology, SSD/HDD bay and VESA mount
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports Advantech's SNMP Subagent software
- Supports Advantech's WISE-PaaS/RMM remote management software

For more information: https://advdownload.advantech.com/productfile/PIS/TPC-312%20EHL/file/TPC-300-EHL_DS(082624)20240826134857.pdf

Specifications

MPN

TPC-312-RE22A

Hardware

BIOS

AMI UEFI

Certification

CB, UL, CE, FCC Class A, CCC, BSMI

CPU

Intel® Atom™ x6425E 2.0GHz Quad-Core

Memory

1 x SO-DIMM with 4 GB DDR4 2666 MHz

Storage

1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5" SSD/HDD bay

I/O

1 x USB 2.0, 3 x USB 3.2, 1 x iDoor slot

LAN

2 x 10/100/1000 Mbps

OS Support

Microsoft® Windows 10 LTSC, Linux, Android

Watchdog Timer

15~255 s

Power Consumption

39 W @ 24 VDC

LCD Display

Display Size

12"

Max. Resolution

1024 x 768

Luminance (cd/m²)

600

Viewing Angle (H/V°)

178/178

Backlight Life (hrs)

50,000

Touchscreen

Touch Type

5-wire resistive

Mechanical

Dimension (W x H x D)

311.8 x 238 x 67 mm

Enclosure

Die-cast aluminum alloy

Mounting

Stand, Wall, VESA, Panel

Weight (Net)

4.1 kg (9.04 lb)

Environment

Ingress Protection

Front Panel IP66

Storage Temperature

-30~70 °C (-22~158 °F)

Operating Temperature

-20~60 °C (-4~140 °F)

Vibration Protection

1 Grms, random

I/O Interface

Expansion

1 x Full-size mPCIe Slot

Audio

Line-Out, Microphone

Displays

1 x DP

Serial Ports

1 x RS-232, 1 x RS-232/422/485

General

Humidity (Operating)

10~95% RH (non-condensing)

Manufacturer Part No:

TPC-312-RE22A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221367

Product Model:

TPC-312-RE22A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
