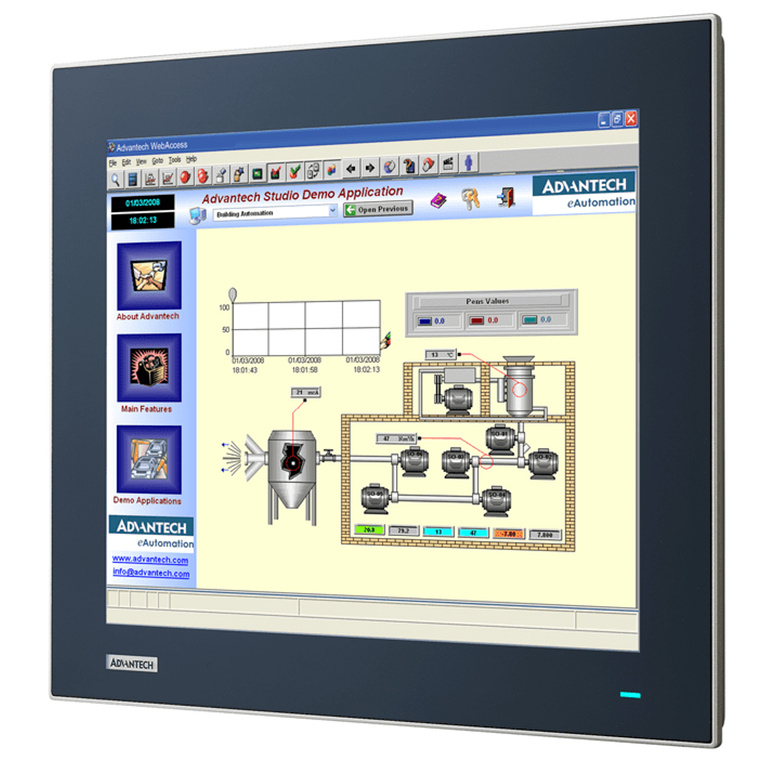

Advantech TPC-315-R873B 15" XGA Touch Panel PC with Core i7 CPU, 8G RAM
Advantech TPC-315-R873B 15" XGA Touch Panel PC with Core i7 CPU, 8G RAM
- Brand: Advantech
- MPN: TPC-315-R873B
- Part #: IPCAVH221371
- UPC:
View all shipping info
- Brand: Advantech
- MPN: TPC-315-R873B
- Part #: IPCAVH221371
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech TPC-315-R873B 15" XGA Touch Panel PC with Core i7 CPU, 8G RAM
- Brand: Advantech
- MPN: TPC-315-R873B
- Part #: IPCAVH221371

Product URL: https://www.pbtech.com/au/product/IPCAVH221371/Advantech-TPC-315-R873B-15-XGA-Touch-Panel-PC-with
Features
Advantech TPC-315-R873B 15" XGA Touch Panel PC with Core i7 CPU, 8G RAM
- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- 8th Gen. Intel® Core™ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Supports expansion via Full-size Mini PCIe and NVMe
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
For more information: https://advdownload.advantech.com/productfile/PIS/TPC-315/file/TPC-300-WHL_DS(050824)20240508114612.pdf
Specifications
Environment
Ingress Protection
Front Panel IP66
Operating Temperature
-10~55 °C (14~131 °F)
Storage Temperature
-20~70 °C (-4~158 °F)
Vibration Protection
1 Grms, random
General
Humidity (Operating)
10~95% RH (non-condensing)
Hardware
BIOS
AMI UEFI
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
CPU
8th Gen. Intel® Core™ i7-8665UE 1.70GHz Quad-Core
I/O
1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot
LAN
1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
Memory
1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot
OS Support
Microsoft® Windows 10 LTSC, Linux, Android
Power Consumption
36.79 W @ 24 VDC
Storage
1 x SATA M.2 SSD slot (2280 M-Key) ;1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key
Watchdog Timer
15~255 s
I/O Interface
Audio
Line-Out, Microphone
Displays
1 x DP
Expansion
1 x Full-size mPCIe Slot, 1 x SIM card Slot
Serial Ports
2 x RS-232/422/485
LCD Display
Backlight Life (hrs)
70,000
Display Size
15"
Luminance (cd/m²)
300
Max. Resolution
1024 x 768
Viewing Angle (H/V°)
176/176
Mechanical
Dimension (W x H x D)
383.2 x 307.3 x 66.5 mm
Enclosure
Die-cast aluminum alloy
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
5.8 kg (12.79 lb)
Touchscreen
Touch Type
5-wire resistive
