Advantech TPC-315-RE22A 15" XGA Thin Client Terminal Elkhart Lake Atom X6425E , 2.0GHz, DDR4 4G
- Brand: Advantech
- MPN: TPC-315-RE22A
- Part #: IPCAVH221372

Product URL: https://www.pbtech.com/au/product/IPCAVH221372/Advantech-TPC-315-RE22A-15-XGA-Thin-Client-Termina
Features

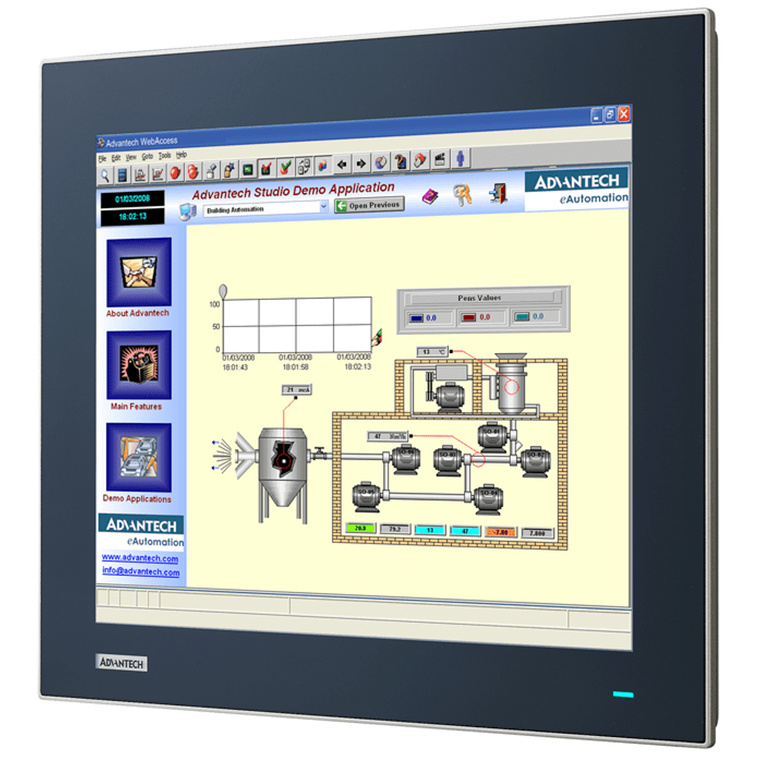

Advantech TPC-315-RE22A 15" XGA Thin Client Terminal Elkhart Lake Atom X6425E , 2.0GHz, DDR4 4G
TPC-315-RE22A thin-client terminal is a industrial panel PC model equipped with TFT LCD, low-power Intel® Atom™ x6425E 2.00 GHz quad-core processor. TPC-315-RE22A delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, TPC-315-RE22A supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wire resistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and bult-in 100 x 100 VESA mount. Moreover, with the provision of one full-size mini PCIe slot, which supports USB/PCIe interface for Advantech's iDoor technology, TPC-315-RE22A can be easily expanded to provide additional I/O ports, isolated digital I/O, fieldbus protocols, MRAM, and 5G/GPS/GPRS/Wi-Fi communication capabilities.
- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- Intel® Elkhart Lake (EHL) Atom™ 6425E 2.00 GHz quad-core processor with 4 GB DDR4 SDRAM
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Built-in Advantech iDoor technology; SSD/HDD bay and VESA mount
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports Advantech's SNMP Subagent software
- Supports Advantech's WISE-PaaS/RMM remote management software
Specifications
Hardware
BIOS
AMI UEFIAMI UEFI
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
CPU
Intel® Atom™ x6425E 2.0GHz Quad-Core
Memory
1 x SO-DIMM with 4 GB DDR4 2666 MHz
Storage
1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5" SSD/HDD bay
I/O
1 x USB 2.0, 3 x USB 3.2, 1 x iDoor slot
LAN
2 x 10/100/1000 Mbps
OS Support
Microsoft® Windows 10 LTSC, Linux, Android
Watchdog Timer
15~255 s
Power Consumption
30 W @ 24 VDC
LCD Display
Display Size
15"
Max. Resolution
1024 x 768
Luminance (cd/m2)
300
Viewing Angle (H/V°)
176/176
Backlight Life (hrs)
70,000
Touchscreen
Touch Type
5-wire resistive
Mechanical
Dimension (W x H x D)
383.2 x 307.3 x 67 mm
Enclosure
Die-cast aluminum alloy
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
5.1 kg (11.2 lb)
Environment
Ingress Protection
Front Panel IP66
Storage Temperature
-30~70 °C (-22~158 °F)
Operating Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
1 Grms, random
I/O Interface
Expansion
1 x Full-size mPCIe Slot
Audio
Line-Out, Microphone
Displays
1 x DP
Serial Ports
1 x RS-232, 1 x RS-232/422/485
General
Humidity (Operating)
10~95% RH (non-condensing)
