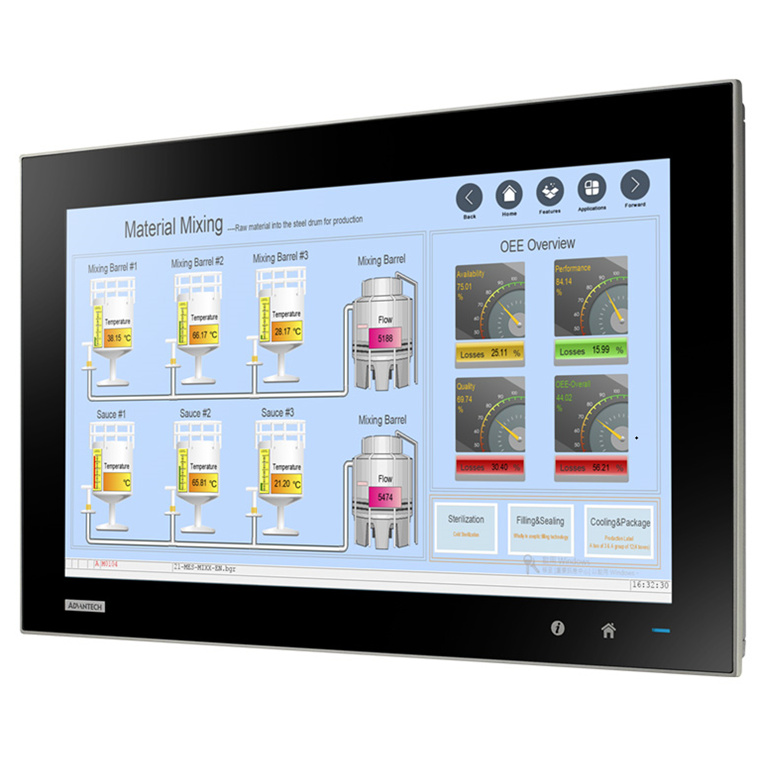

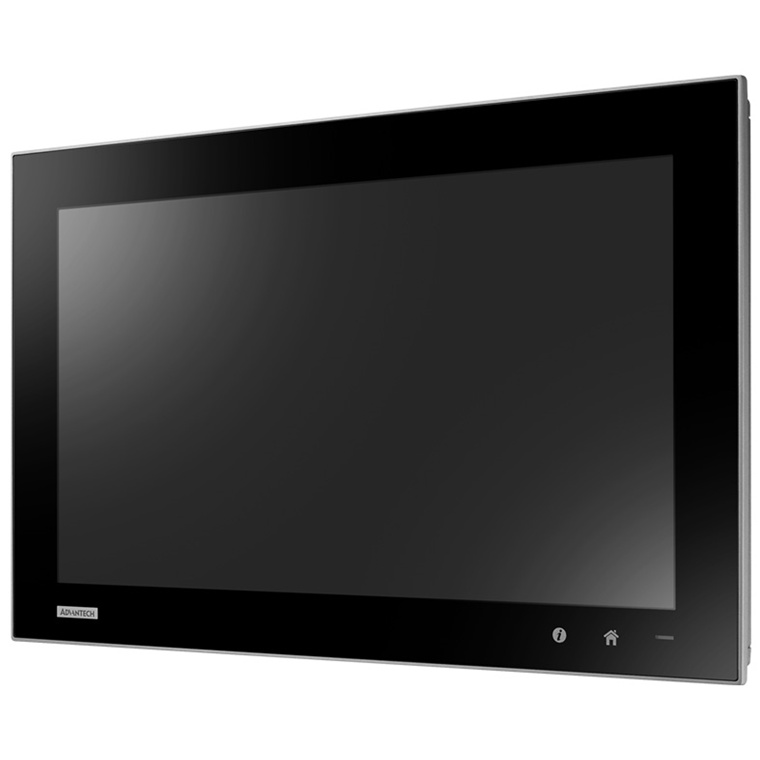

Advantech TPC-318WH-P853A 18.5"WXGA C1D2 PCT Panel PC w/8th Gen. Intel Core i5 Processor
- Brand: Advantech
- MPN: TPC-318WH-P853A
- Part #: IPCAVH221377

Product URL: https://www.pbtech.com/au/product/IPCAVH221377/Advantech-TPC-318WH-P853A-185WXGA-C1D2-PCT-Panel-P
Features
Advantech TPC-318WH-P853A 18.5"WXGA C1D2 PCT Panel PC w/8th Gen. Intel Core i5 Processor
- Industrial-grade 18.5" WXGA TFT LCD with 50K lifetime and LED backlight
- 8th Gen. Intel® Core™ i5-8365UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 64G in total
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with PCAP touch control and IP66-rated front panel
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Support TPM2.0 hardware security
Specifications
LCD Display
Display Size
18.5"
Luminance (cd/m2)
450
Max. Resolution
1366 x 768
Power Supply
Input Voltage
12~24 VDC
Touchscreen
Touch Type
10-point multi-touch projected capacitive
Hardware
CPU
8th Gen. Intel® Core™ i5-8365UE 1.60GHz Quad-Core
Memory
1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz
Storage
1 x SATA M.2 SSD slot (2280 M-Key);1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key

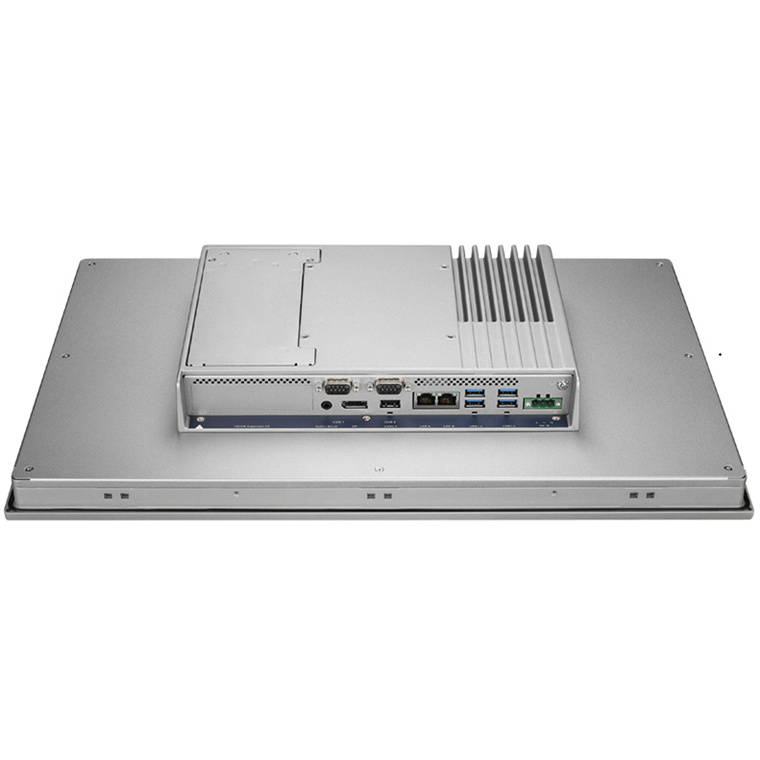

I/O Interface
LAN Ports
2 x 10/100/1000 Mbps
USB Ports
4 x USB 3.2
Serial Ports
2 x RS 232/422/485
Displays
1 x DP
Audio
Line-Out, Mic-In
USB Vision
Connector
1 x USB 2.0 Type A
Expansion Function
Interface
1 x Full-size mini PCIe
Mechanical
Mounting
Panel, Wall, Stand, VESA
