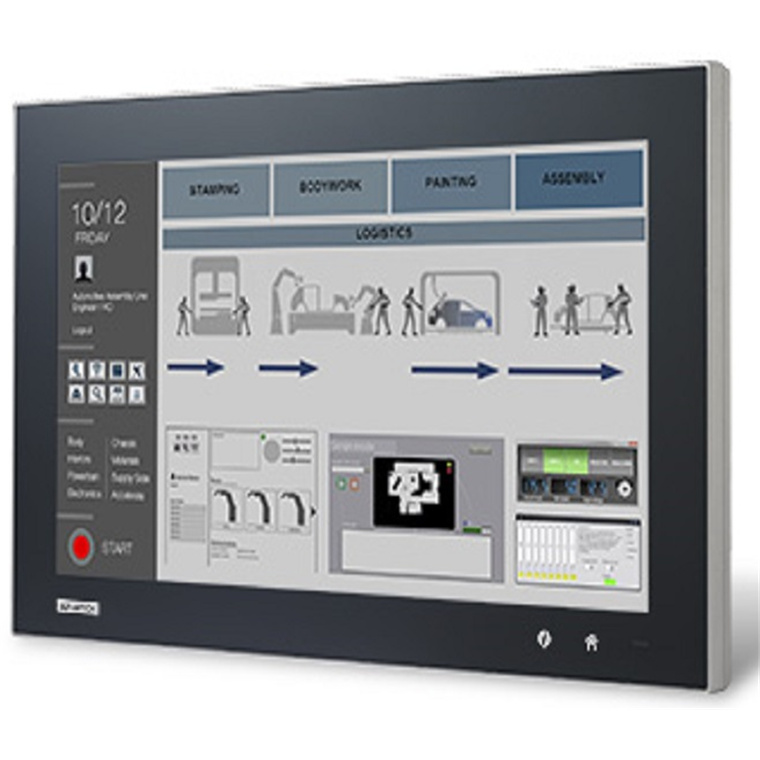

Advantech TPC-324W-P873B 23.8" wide PCT with Core i7 CPU, 8G RAM
- Brand: Advantech
- MPN: TPC-324W-P873B
- Part #: IPCAVH221381

Product URL: https://www.pbtech.com/au/product/IPCAVH221381/Advantech-TPC-324W-P873B-238-wide-PCT-with-Core-i7
Features
TPC-324W-P873B touch panel computer is equipped with TFT LCD, low-powerIntel® Core™ i7-8665UE Quad-core Processor, and built-in 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system. To provide enhanced durability and satisfy diverse applications of industrial automation, TPC-324W-P873B features IP66-rated front panel protecting against dust and water ingress, and two extra expansion M.2 M Key, B Key slots supporting NVMe, SATA or 5G application. With Advantech's iDoor technology integrated via mini PCIe slot for function expansions such as additional I/O ports, isolated digital I/O, fieldbus protocols, GPS/GPRS/ Wi-Fi communication and MRAM. The integrated DP and audio ports allow a secondary monitor and speakers to be attached for increased functionality.
- Intel® Core™ i7-8665UE Quad-core Processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 64G in total
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security
For more information: https://advdownload.advantech.com/productfile/PIS/TPC-324W/file/TPC-312_315_317_324W_DS(020624)20240430102453.pdf
Specifications
General
BIOS
AMI UEFI
Certification
BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System
Fanless design
Dimensions (W x H x D)
23.8": 595.9 x 374.1 x 70 mm (23.46 x 14.73 x 2.76 in)
Enclosure
Front bezel: Die cast aluminum alloy
Back housing: Die cast aluminum alloy
Mounting
VESA Mount, Desktop, Wall or Panel Mount
OS Support
Win 10, Android, Linux
Security
TPM 2.0 (built-in)
Power Consumption
23.8": 56.31W (Typical)
Power Input
24 VDC ± 20%
Watchdog Timer
15-255 sec (system)
Weight (Net)
23.8": 9.3kg (20.5lbs)
System Hardware
CPU
i7-8665UE Quad-core Processor
Memory
Dual channel DDR4 SO-DIMM (Each channel supports up to 32G)
1 x 8G DDR4 SO-DIMM (Built-in)
LAN
2 x 10/100/1000BASE-T (A ver.) or 2.5GbE (B ver.)
Expansion Slot
1 x Full-size mini PCIe(PCIe/USB2.0)
1 x SIM (Optioanl 4G/5G module)
Storage Slot
1 x M.2 M key 2280 (SATA or NVMe PCIex4)
1 x M.2 B Key 2242 (SATA)
3042, 3052 (PCIe/USB3.0 for 4G/5G module)
1 x 2.5" SSD/ HDD (SATA, Max. 7mm)
I/O
2 x RS-232/422/485
1 x USB 2.0
4 x USB 3.2 (Gen 2)
1 x iDoor slot
1 x Displayport (Video output)
1 x Audio line out/ mic in
LCD Display
Display Type
FHD TFT LED
LCD Display Size
23.8" (16:9)
Max. Resoltuion
1920 x 1080
Max Colour
16.7M
Luminance (cd/m2)
350
Viewing Angle (H/V°)
178°/178°
Backlight Life
30,000hrs
Contrast Ratio
1000:1
Touchscreen
Lifespan
36 million touches at a single point
Light Transmission
Above 75%
Resolution
Linearity
Type
PCAP (TPC-324W)
Environment
Relative Humidity
Operating, 95% RH @ 40° C, Non-Condensing,Non-Operating, 95% RH @ 60° C, Non-Condensing
Ingress Protection
IP66-rated front panel
Operating Temperature
-10~55°C (14~131°F) (w/o air flow)
Storage Temperature
-20~70°C (-4~158°F)
Vibration Protection
With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
