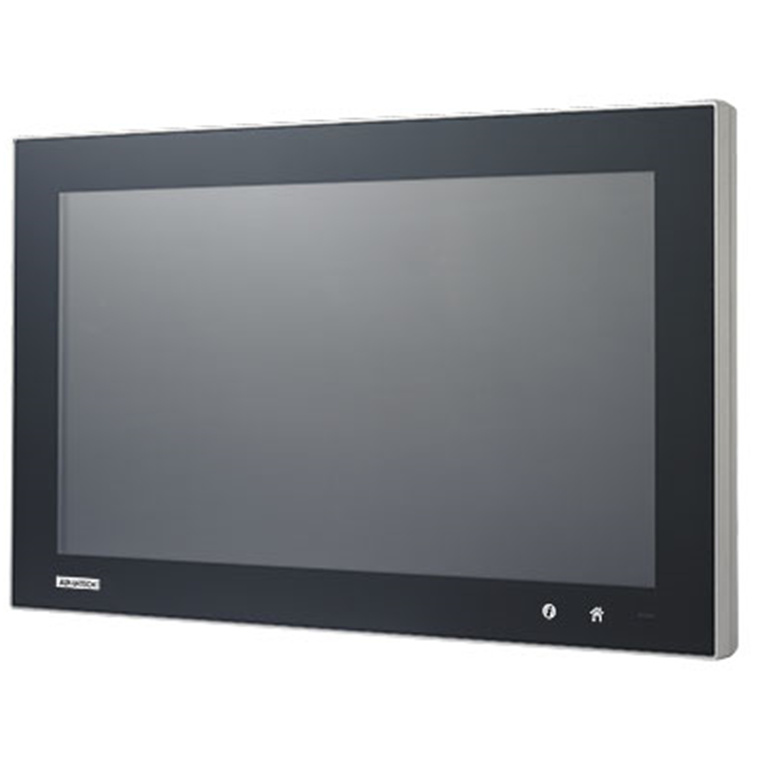

Advantech TPC-5212W-633BE Modular TPC New 21.5" FHD PCT Core i3 8GB

PB Tech price

$ 4,394 .38

+GST

$ 4,833 .82

inc GST

Advantech TPC-5212W-633BE Modular TPC New 21.5" FHD PCT Core i3 8GB

Brand: Advantech
MPN: TPC-5212W-633BE
Part #: IPCAVH221384
UPC:

PB Tech price

$ 4,833 .82

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 26 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-5212W-633BE
Part #: IPCAVH221384
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech TPC-5212W-633BE Modular TPC New 21.5" FHD PCT Core i3 8GB

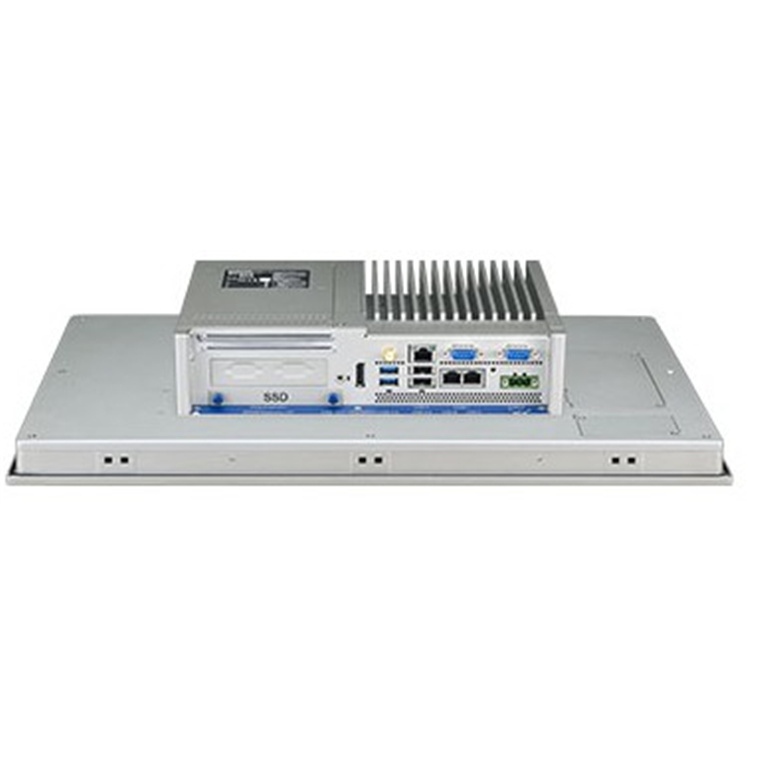

The TPC-5000 series is the first of Advantech's TPC range of modularized industrial panel solutions. TPC-5000 series systems comprise a box module powered by a 6th Gen Intel® Core™/Celeron® processor combined with an industrial-grade LED LCD module, providing compact and fanless control panel solutions that support high-performance computing. Built to withstand diverse industrial environments, the TPC-5000 display modules feature an IP66-rated front panel for water and dust resistance, a scratch-resistant glass panel that supports projected capacitive or 5-wire resistive touch control, and a robust enclosure with die-cast aluminum alloy front bezel. Meanwhile, the TPC-5000 box modules feature MRAM and TPM 2.0 technology and 3 x LANs with surge protection and multiple fieldbus protocol support for increased data security and network connectivity. Designed for flexible expansion and easy maintenance, TPC-5000 series systems can also be integrated with optional iDoor and Wi-Fi/NFC modules for enhanced functionality.

- Intel® Core™ i3-6100U processor with 8 GB of DDR4 SODIMM.
- Industrial-grade LED LCD with a lifespan of 50,000 hours.
- Modular design for flexible configuration and easy maintenance.
- Display panel modules available in various sizes with either projected capacitive touch functionality for multi-touch control or 5-wire resistive touch functionality.
- Intelligent home key and iKey provide intuitive user interfaces for system control.
- Built-in Trusted Platform Module (TPM) 2.0.
- 2x full-size mini-PCIe and 1 x half-size PCIe.
- IP66-compliant front panel protection & supports SSD expansion.
- 3x LAN with multiple fieldbus protocol support and LAN surge protection.
- IEC 61010-2 compliant (only panels of certain sizes).
- Logo can be customized without changing the touchscreen.

Specifications

Environment

Ingress Protection

IP66

Operating Temperature

-10~55 °C (14~131 °F)

Storage Temperature

-20~60 °C (-4~140 °F)

Vibration Protection

3 Grms

General Humidity (Operating)

10~95% RH (non-condensing)

Hardware

Certification

CB, UL, CE, FCC Class A, CCC, BSMI

CPU

6th Gen. Intel® Core™ i3-6100U 2.30GHz Dual-Core

Expansion

1 x PCIe x1, 2 x Full-size mPCIe x Slot

Hardware Security

TPM 2.0

I/O

1 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x Line Out, 1 x DP

LAN

3 x 10/100/1000 Mbps

Memory

1 x SO-DIMM with 8 GB DDR4 2133 MHz

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Microsoft® Windows 7, Linux, Android

Power Input

24 VDC ±20%

Storage

1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay

LCD Display

Backlight Life (hrs)

50,000

Display Size

21.5"

Luminance (cd/m2)

250

Max. Resolution

1920 x 1080

Viewing Angle (H/V°)

178/178

Mechanical

Dimension (W x H x D)

559 x 350 x 89 mm

Mounting

Panel, Wall, Stand, VESA

Weight (Net)

9.8 kg

Touchscreen

Touch Type

PCAP

Manufacturer Part No:

TPC-5212W-633BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221384

Product Model:

TPC-5212W-633BE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
