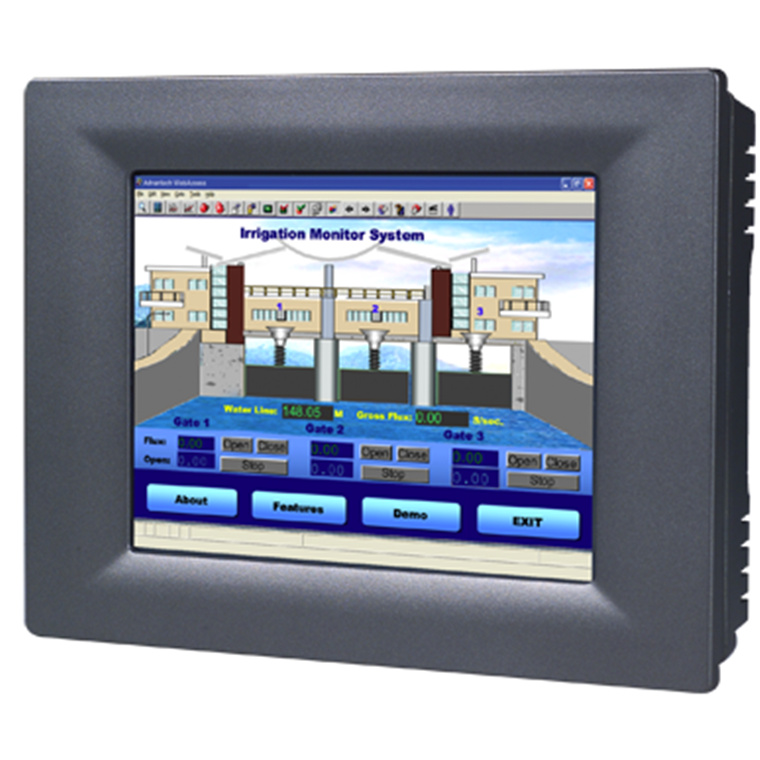

Advantech TPC-61T-E3AE 5.7" Touch Panel Computer with Cortex-A8 WinCE6.0
- Brand: Advantech
- MPN: TPC-61T-E3AE
- Part #: IPCAVH221385

Product URL: https://www.pbtech.com/au/product/IPCAVH221385/Advantech-TPC-61T-E3AE-57-Touch-Panel-Computer-wit
Features
The TPC-61T model is a compact platform without redundant functions, and has been designed for small-sized operator interface applications. It has a 5.7" TFT LCD display which is a cost effective choice for a limited budget. Its RISC kernel, the TI Cortex-A8 processor consumes minimum power without sacrificing performance.
The TPC-61T has a 10/100Base-T Ethernet port offering solid communication ability and comes bundled with a Windows® CE OS that supports Thin-Client solutions. The built-in Windows CE OS platform lets the TPC-61T become an Open HMI solution for system integration.
- TI Cortex-A8 processor on board
- 5.7" QVGA TFT LED LCD
- Super slim and compact design with plastic housing
- Fanless cooling system
- IP65 compliant front panel
- Built-in micro SD card with Windows® CE OS
- 1 x SD card slot
- Automatic data flow control RS-485
- Supports 1Mbit FRAM for data back-up
For more information: https://advdownload.advantech.com/productfile/PIS/TPC-61T/file/TPC-31T_61T_DS(080723)20230808092308.pdf
Specifications
Environment
Ingress Protection
Front Panel IP65
Operating Temperature
0~50 °C (32~122 °F)
Storage Temperature
-20~60 °C (-4~140 °F)
Vibration Protection
2 Grms, random
Ethernet
Speed
10/100 Mbps
General
Humidity (Operating)
10~95% RH (non-condensing)
Hardware
Certification
CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI
CPU
TI® ARM® Cortex™ A8 AM3517
I/O
2 x USB 2.0
LAN
1 x 10/100 Mbps
Memory
1 x SO-DIMM with 256 MB DDR2
OS Support
Microsoft® Windows CE 6.0
Power Consumption
8 W @ 24 VDC
Power Input
18~32 VDC
Watchdog Timer
Programmable
I/O Interface
Serial Ports
2 x RS-232, 1 x RS-422/485
LCD Display
Backlight Life (hrs)
50,000
Display Size
5.7"
Luminance (cd/m2)
800
Max. Resolution
320 x 240
Viewing Angle (H/V°)
120/110
Mechanical
Dimension (W x H x D)
195 x 148 x 44.4 mm
Enclosure
PC + ABS Resin
Mounting
Panel
Weight (Net)
0.8 kg (1.76 lb)
Touchscreen
Touch Type
4-wire resistive
