Advantech TPC-71W-N10PA 7" Touch Panel Computer with ARM Cortex -A9 Processor and WVGA, 1G RAM, Ubuntu 16.04
- Brand: Advantech
- MPN: TPC-71W-N10PA
- Part #: IPCAVH221390

Product URL: https://www.pbtech.com/au/product/IPCAVH221390/Advantech-TPC-71W-N10PA-7-Touch-Panel-Computer-wit
Features

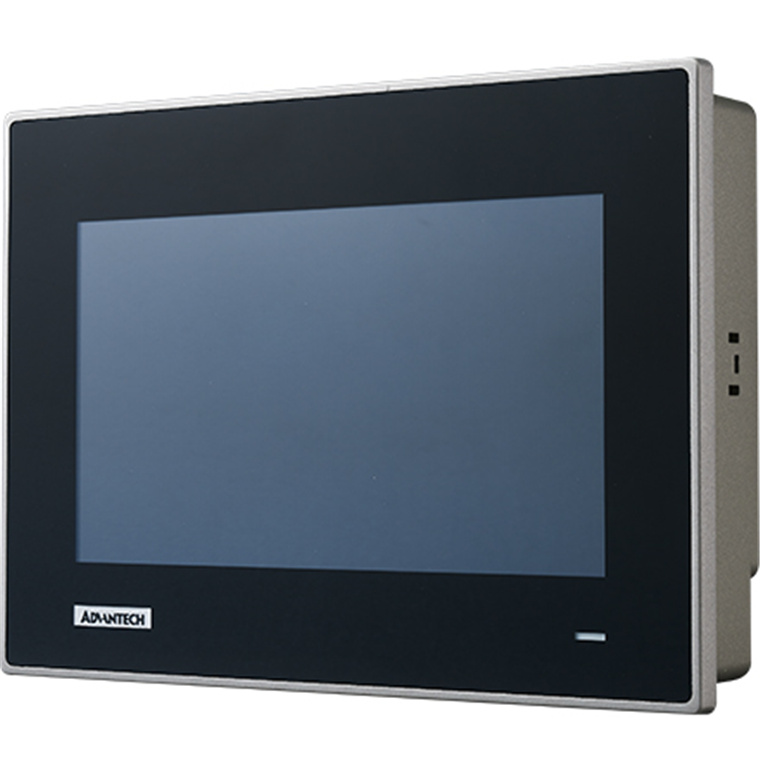

TPC-71W-N10PA is a compact touch panel computer equipped with an NXP® i.MX 6 Cortex™-A9 dual-core processor, 7" TFT LCD display, multi-touch glass sensor, 1 GB of DDR3L RAM, and 8 GB of eMMC storage.
To ensure stable operation in harsh industrial environments, the TPC-71W series supports a wide operating temperature range (-20 ~ 60 °C /-4 ~ 140 °F) and VESA mounting and features an IP66-rated front panel that protects against water and dust ingress.
For web-based operations, TPC-71W offers 10/100/1000 Mbps LAN that supports the IEEE 802.3 PoE-PD standard. The inclusion of VNC Tools and browsers enable rapid Web application development and easy configuration. Finally, TPC-71W supports various OS including Linux Yocto, Linux Ubuntu with full QT graphics, and Android to ensure easy deployment for diverse applications.
- NXP® ARM® Cortex™-A9 i.MX6 dual-core processor
- 7" 16:9 WSVGA LCD with multi-touch P-CAP control and true-flat IP66-rated front panel
- 1 GB DDR3L RAM and 8 GB eMMC storage onboard
- 10/100/1000 Mbps LAN with IEEE 802.3at PoE-PD support
- 1 MB FRAM backup memory for unexpected power interruptions
- Serial port with 120O termination resistor that supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
- Embedded browser and VNC tool for rapid Web App development
- Supports Linux Yocto, Linux Ubuntu and Android
- Optional NFC and mPCIe expansion modules
- Compatible with VESA and panel mounting
For more information: https://advdownload.advantech.com/productfile/PIS/TPC-71W/file/TPC-71W_DS(011623)20230118151825.pdf
Specifications
Environment
Ingress Protection
Front Panel IP66
Operating Temperature
-20~60 °C (-4~140 °F)
Storage Temperature
-30~70 °C (-22~158 °F)
Vibration Protection
2 Grms, random
Ethernet
Speed
10/100/1,000 Mbps
Hardware
Certification
CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI
CPU
NXP® ARM® Cortex™ A9 i.MX6 Dual-Core
I/O
3 x USB 2.0
LAN
1 x 10/100/1000 Mbps
Memory
1 x SO-DIMM with 1 GB DDR3L
OS Support
Linux Ubuntu 16.04
Power Consumption
9 W @ 24 VDC
Power Input
24 VDC ±20%
Storage
8GB eMMC onboard
I/O Interface
Serial Ports
1 x RS-232/485/Canbus
LCD Display Backlight Life (hrs)
50,000
Display Size
7"
Luminance (cd/m2)
400
Max. Resolution
1024 x 600
Viewing Angle (H/V°)
170/170
Mechanical
Dimension (W x H x D)
205 x 146.92 x 46 mm
Enclosure
Front: Die-cast aluminum alloy
Rear: PC +ABS
Mounting
VESA, Panel
Weight (Net)
1.2 kg (2.65 lb)
Touchscreen
Touch Type
PCAP
