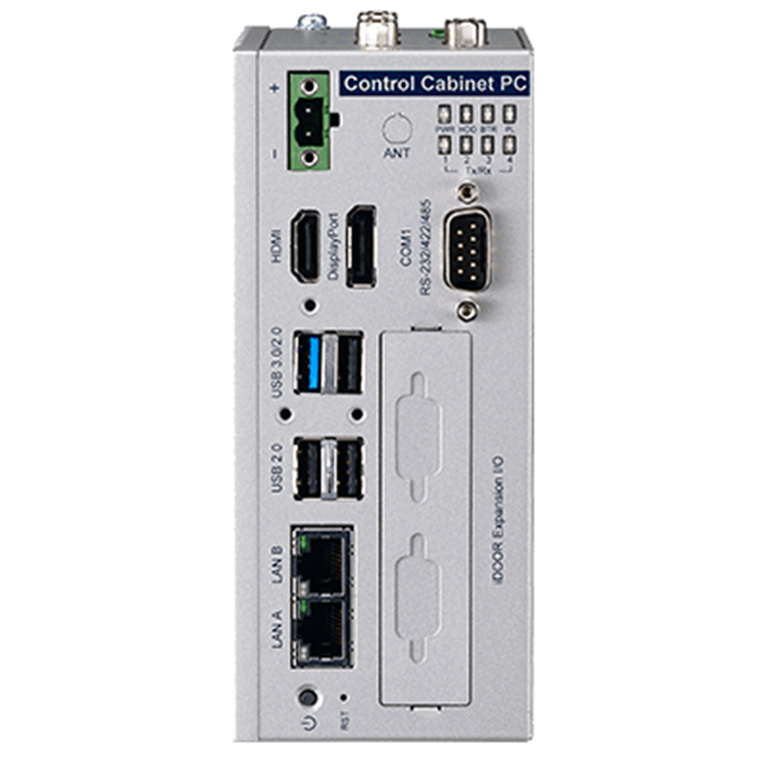

Advantech UNO-1372G-J021AE Small-Size DIN-rail IPC with Intel Celeron J1900
- Brand: Advantech
- MPN: UNO-1372G-J021AE
- Part #: IPCAVH221405

Product URL: https://www.pbtech.com/au/product/IPCAVH221405/Advantech-UNO-1372G-J021AE-Small-Size-DIN-rail-IPC
Features
The UNO-1372G series is a ruggedized fanless automation PC. The DIN-rail mounting form factor is suitable to be used in control cabinet for industrial automation application. The well-designed heat dispassion mechanism enables the UNO-1372G operating in wide temperatures (from -20 to 60°C). The latest UNO-1372G-J includes Intel Celeron J1900 platform and builds in 4G DDR3L RAM. It provides rich interfaces including 2 x GbE LAN, 1 x USB3.0, 3 x USB2.0 ports, 4 COM ports and 4DI/4DI. It also equips with one DP and one HDMI for display. UNO-1372G-J provides great expansion including 2 x Mini-PCIe (one supports mSATA option) and supporting Advantech's latest iDoor technology. It has great expandability for wireless communication, I/O expansion and industrial protocols via iDoor technology. With multiple OS and driver support, such as Windows 7, Windows 10 and embedded Linux, users can integrate applications easily in an application ready platform that can provide versatile functions to fulfill diverse requirements.
- Intel® Celeron® J1900 2.0GHz processor with 4GB DDR3L Memory
- Robust design for industrial control and harsh environment
- Isolated protection of COM and digital Input/output
- Compact fanless design
- Wide power input range and operating temperature
- Chassis grounding protection
- Flexibility of expanding functionality for various application
- Support diverse industrial fieldbus, IO & peripheral iDoor modules
- Dedicated TPM2.0 microcontroller designed for hardware security
Specifications
Environment
Ingress Protection
IP40
Operating Temperature
-20~60 °C (-4~140 °F)
Relative Humidity
95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-40~85 °C (-40~185 °F)
Vibration Protection
1 Grms, random
Hardware
Certification
CB, UL, CE, FCC, CCC, BSMI
CPU
Intel® Celeron® J1900 2.0 GHz Quad-Core
Graphics Engine
Intel® HD Graphics
Hardware Security
TPM 2.0
Memory
1 x SO-DIMM with 4 GB DDR3L 1600 MHz
OS Support
Microsoft® Windows 10 2019 LTSC, WES7, Linux
Power Input
10~36 VDC
Storage
1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay
I/O Interface
Displays
1 x DP, 1 x HDMI
Expansion
2 x Full-size mPCIe Slot
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
4 x RS-232/422/485
USB Ports
1 x USB 3.0, 3 x USB 2.0
Local I/O
General Digital I/O
4-ch DI, 4-ch DO
Mechanical
Dimension (W x H x D)
65 x 105 x 150 mm
Enclosure
Aluminum housing
Weight (Net)
1kg (2.2 lb)
