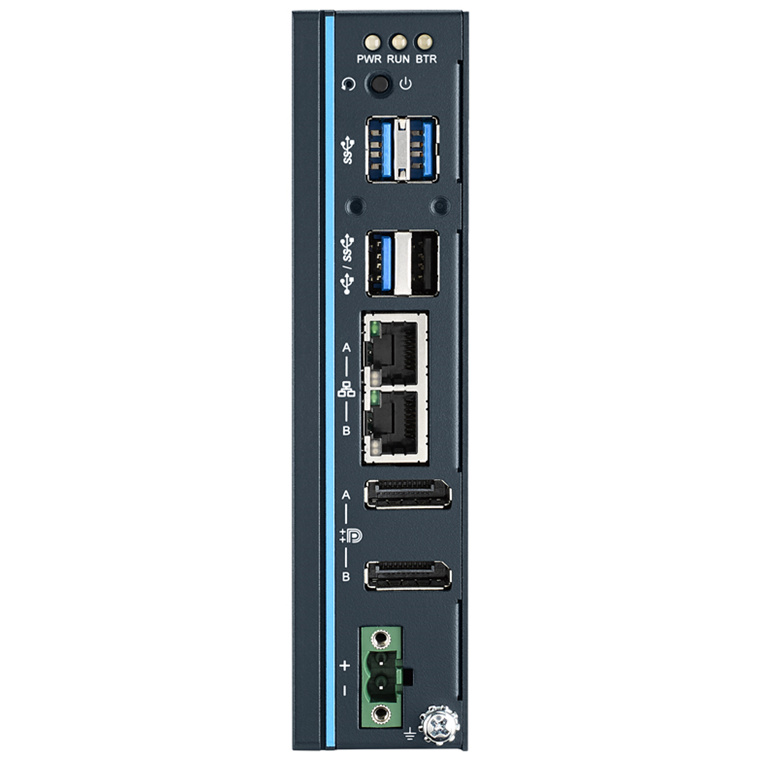

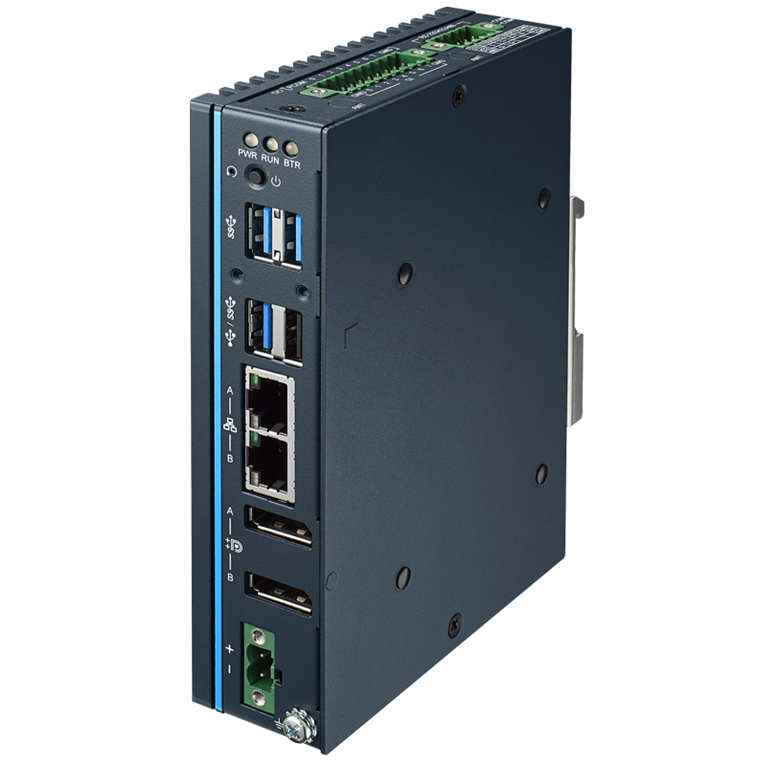

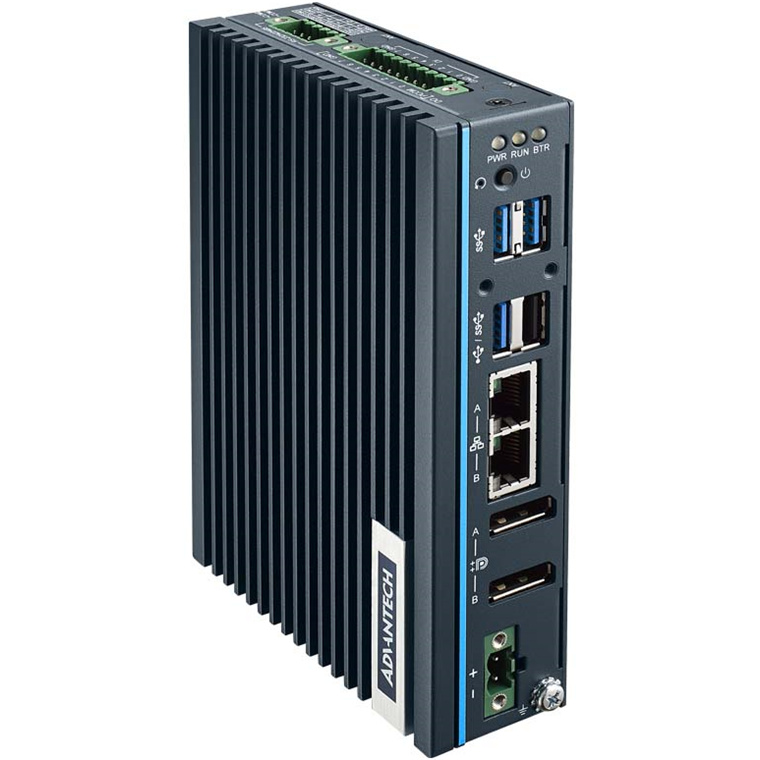

Advantech UNO-137-E13BA Small-Size Integrated DIN-Rail IPC with Intel Atom E3940
- Brand: Advantech
- MPN: UNO-137-E13BA
- Part #: IPCAVH221406

Product URL: https://www.pbtech.com/au/product/IPCAVH221406/Advantech-UNO-137-E13BA-Small-Size-Integrated-DIN
Features
Advantech's UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements. UNO-137 is equipped with an Intel® Atom® E3940 processor (1.6 GHz), 8 GB DDR3L RAM, and wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F), as well as 2 x LAN, 2 x COM, 3 x USB 3.0, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.2 . The controller also supports 1 x full-size mini PCIe, 1 x M.2 (B key), and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications.
- Intel® Atom® E3940 processor (1.6 GHz) with 8GB DDR3L memory
- Modular design for optional 1 x iDoor extension
- Wide operating temperature range (-40 ~ 70 °C/ -40 ~ 158 °F)
- Port isolation for 8 x DI, 8 x DO, 2 x COM
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
Specifications
Environment
Ingress Protection
IP40
Operating Temperature
-40~70 °C (-40~158 °F)
Relative Humidity
10~95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-40~85 °C (-40~185 °F)
Vibration Protection
4 Grms, random
Hardware
Certification
CB, UL, CE, FCC, CCC, BSMI
CPU
Intel® Atom® E3940 1.60GHz Quad-Core
Graphics Engine
Intel® HD Graphics
Hardware Security
TPM 2.0
Memory
1 x SO-DIMM with 8 GB DDR3L 1600 MHz
OS Support
Microsoft® Windows 10 2019 LTSC, Linux
Power Input
10~36 VDC
Storage
1 x 2.5" SSD/HDD bay
I/O Interface
Displays
2 x DP
Expansion
1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x SIM Card Slot
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
2 x RS-232/422/485
USB Ports
3 x USB 3.2, 1 x USB 2.0
Local I/O
General Digital I/O
8-ch DI, 8-ch DO
Mechanical
Dimension (W x H x D)
35 x 105 x 150 mm
Enclosure
Aluminum housing
Mounting
DIN-rail
Weight (Net)
0.8 kg (1.7 lb)
