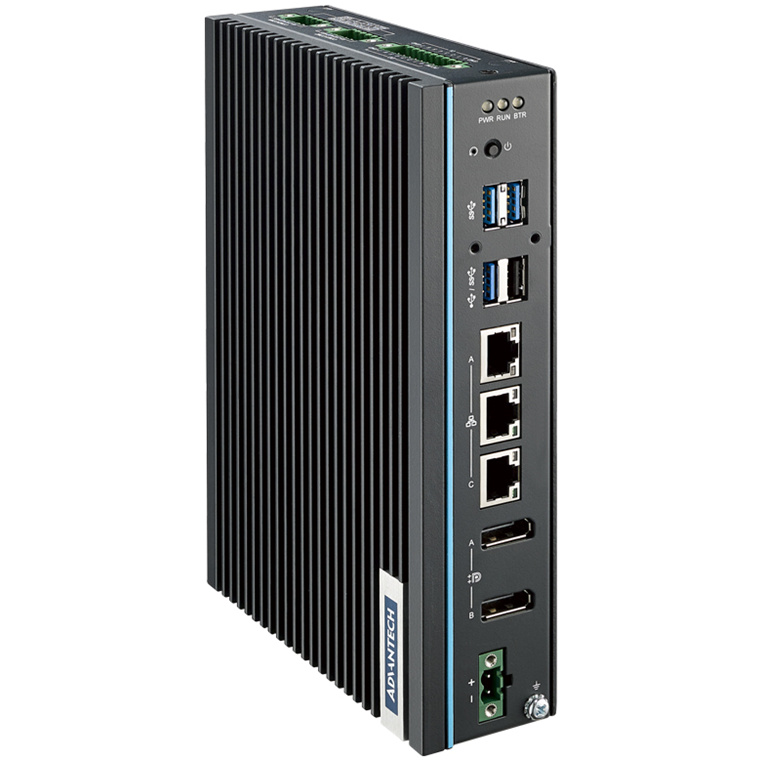

Advantech UNO-148-B53BA Compact DIN-Rail Edge Controller with 11th Gen Intel Core i5-1145G7E CPU

PB Tech price
PB Tech price
$ 2,634 .99
 +GST
$ 2,898 .49
 inc GST
$2,634.99  +GST
$2,898.49

Advantech UNO-148-B53BA Compact DIN-Rail Edge Controller with 11th Gen Intel Core i5-1145G7E CPU

  • Brand: Advantech
  • MPN: UNO-148-B53BA
  • Part #: IPCAVH221410
  • UPC:
PB Tech price
$ 2,634 .99 $ 2,898 .49
 +GST  inc GST


Delivery: Order now and it ships on 25 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$2,634.99  +GST
$2,898.49

Features

Advantech UNO-148-B53BA Compact  DIN-Rail Edge Controller with 11th Gen Intel  Core  i5-1145G7E CPU

Advantech's UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements.

UNO-148 is equipped with an 11th Generation Intel® Core™ i Processor with 8GB DDR4 RAM, and 3 x LAN, 4 x COM, 3 x USB 3.0, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.4. The controller also supports 1 x full-size mini PCIe, 1 x M.2 B key,1 x M.2 M Key, 1 x M.2 E key, and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-148 can be equipped with an optional second-stack extension kit that supports Advantech's iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.

- Port isolation for 8 x DI, 8 x DO, 4 x COM
- Supports M.2 M key 2280 NVMe SSD storage, M.2 B key 2242 storage, 3042/3052 cellular modules, and M.2 E Key 2230 wi-fi modules
- Dual 2500BASE-T Ethernet supports Time-Sensitive Network(TSN) technology
- Remote out-of-band (OOB) power management with Advantech iBMC technology
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified



Specifications

Mechanical

Weight (Net)

1.3 kg

Enclosure

Aluminum housing

Mounting

DIN-rail

Hardware

Certification

CB, UL, CE, FCC, CCC, BSMI

Power Input

10~36 VDC

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux

Hardware Security

TPM 2.0

CPU

Intel® Core™ i5-1145G7E 1.5GHz Quad core

Memory

1 x SO-DIMM with 8 GB DDR4 3200 MHz, 1 x DDR4 SO-DIMM Slot

Graphics Engine

Intel® Iris® X

Storage

1 x NVMe M.2 SSD slot (2280 M-key), 1 x M.2 B key

I/O Interface

Serial Ports

4 x isolated RS-232/422/485

LAN Ports

2 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps

USB Ports

3 x USB 3.2, 1 x USB 2.0

Power Connector

1 x 2-Pin Terminal Block

Displays

2 x DP

Expansion

1 x Full-size mPCIe, 1 x M.2 E key, 1 x M.2 M key, 1 x M.2 B key

Environment

Relative Humidity

10~95% RH (non-condensing)

Storage Temperature

-40~85 °C (-40~185 °F)

Ingress Protection

IP20

Shock Protection

50 G, half sine

Vibration Protection

4 Grms, random

Operating Temperature

-20~60 °C (-4~140 °F)

Local I/O

General Digital I/O

8-ch DI, 8-ch DO

Manufacturer Part No:
UNO-148-B53BA
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221410
Product Model:
UNO-148-B53BA
