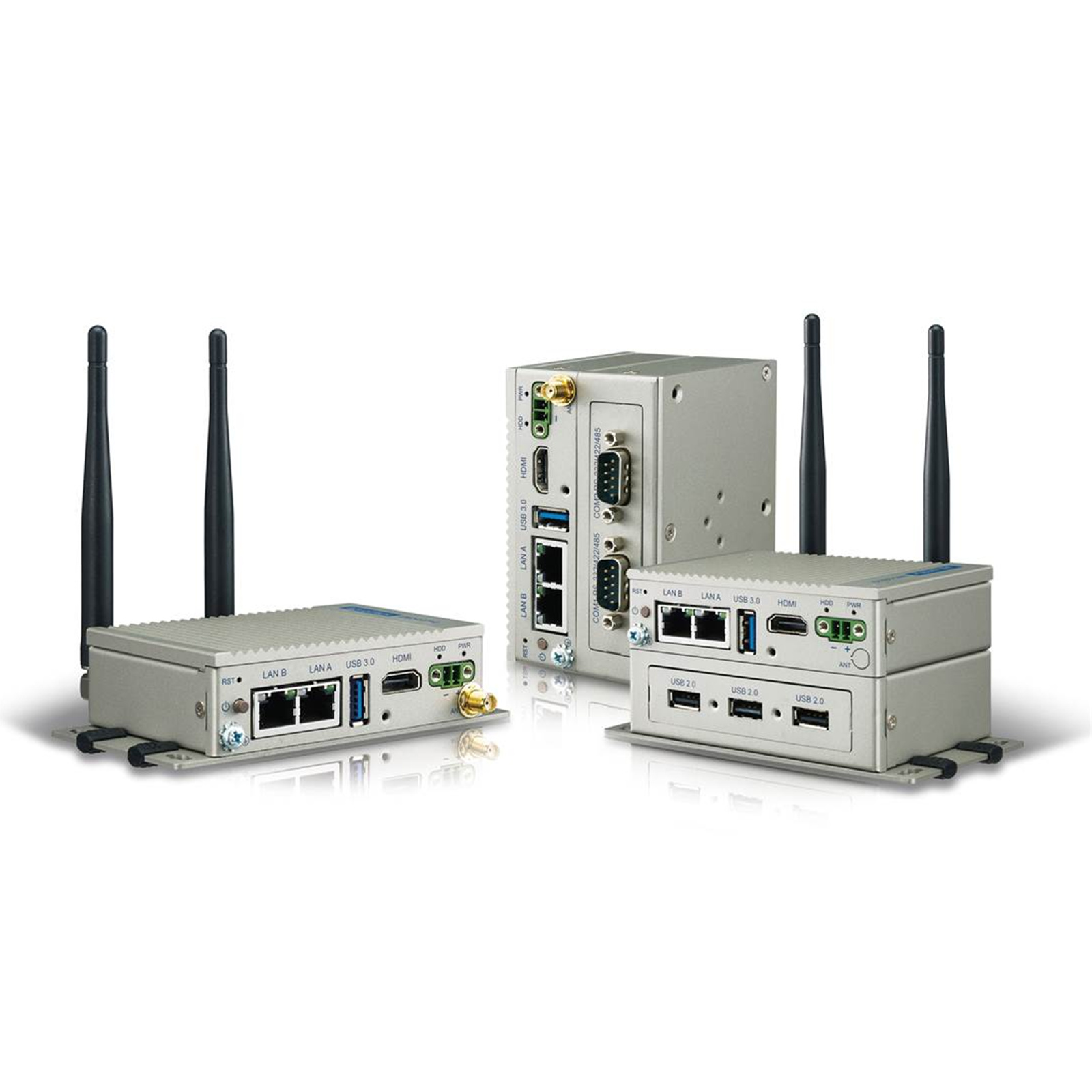

Advantech UNO-2271G-E022AE Pocket-Size Edge IoT Gateway with Intel Atom E3825 CPU (with 2nd stack)
- Brand: Advantech
- MPN: UNO-2271G-E022AE
- Part #: IPCAVH221414

Product URL: https://www.pbtech.com/au/product/IPCAVH221414/Advantech-UNO-2271G-E022AE-Pocket-Size-Edge-IoT-Ga
Features
- 2 x GbE, 1 x USB 3.0, 1 x HDMI, Option 2 x RS-232/422/485 or 3 x USB2.0
- Compact Fanless Design and Rubber Stopper Design with internal reserved screws for 2nd layer assembly
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi communication by iDoor technology
- Supports 30+ iDoor combination with four main categories of smart factory applications
- 32GB eMMC storage onboard
- RED Compliance for LTE solution
Specifications
General
Certification
CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H)
100 x 70 x 30 mm (3.9" x 2.8" x 1.2"), UNO-2271G-E21BE/E021AE
100 x 70 x 60 mm (3.9" x 2.8" x 2.6"), UNO-2271G-E22BE/E23BE/E022AE/E023AE
Form Factor
Pocket Size, same dimension as standard 2.5" SSD/HDD
Enclosure
Aluminum Housing
Mounting
Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)
Weight (Net)
0.5 kg (1.1lbs) for UNO-2271G-E21BE/E021AE
0.6 kg (1.2lbs) for UNO-2271G-E22BE/ E022AE and E23BE/ E023BE
Power Requirement
10 ~ 30VDC
Power Consumption
12W (Typical), 24W (Max)
OS Support
For mSATA storage: Windows7, Windows10 LTSB,
Advantech Linux
For eMMC storage: Advantech embedded customized
Windows7 64bits, Windows 10 LTSB, Advantech Linux
System Hardware
BIOS
AMI EFI64 Mbit
Watchdog Timer
Programmable 255 levels timer interval, from 1 to 255 sec
Processor
Intel Atom E3815 Single Core 1.46GHz
Intel Atom E3825 Dual Core 1.33Ghz
System Chip
Intel Atom SoC integrated
Memory Onboard
4GB DDR3L 1066 MHz
Graphics Engine
Intel® HD Graphics
Ethernet
Realtek RTL8111E GbE, 802.10av
LED Indicators
LEDs for Power, HDD, LAN (Active, Status)
Storage Onboard
32GB eMMC (Option mSATA shared with mPCIe slot)
Expansion
1 x Full-size mPCIe slot
I/O Interfaces
Serial Ports
2 x RS 232/422/485 for UNO-2271G-E23BE/ E023AE
LAN Ports
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u
USB Ports
1 x USB 3.0 for UNO-2271G-E21BE/E021AE
3 x USB 2.0 and 1 x USB 3.0 for UNO-2271G-E22BE/E022AE
1 x USB 3.0 for UNO-2271G-E23BE/E023AE
Displays
1 x HDMI, supports 1920 x 1080 @ 60Hz
Power Connector
1 x 2 Pins, Terminal Block
Environment
Operating Temperature
0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow
Storage Temperature
-40 ~ 85°C ( -40 ~ 185°F)
Relative Humidity
10 ~ 95% RH @ 40°C, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Protection
Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)
Ingress Protection
IP30
