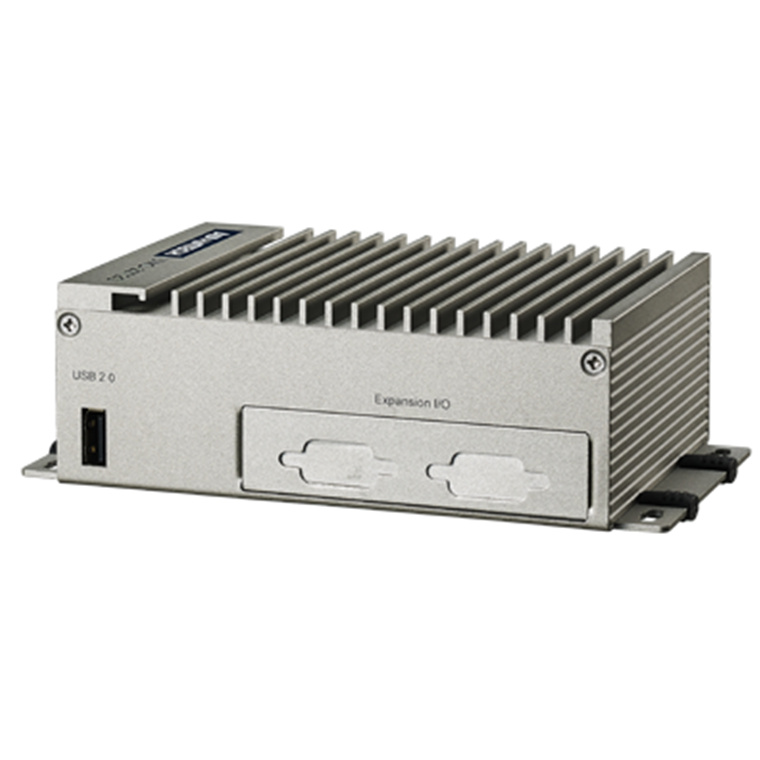

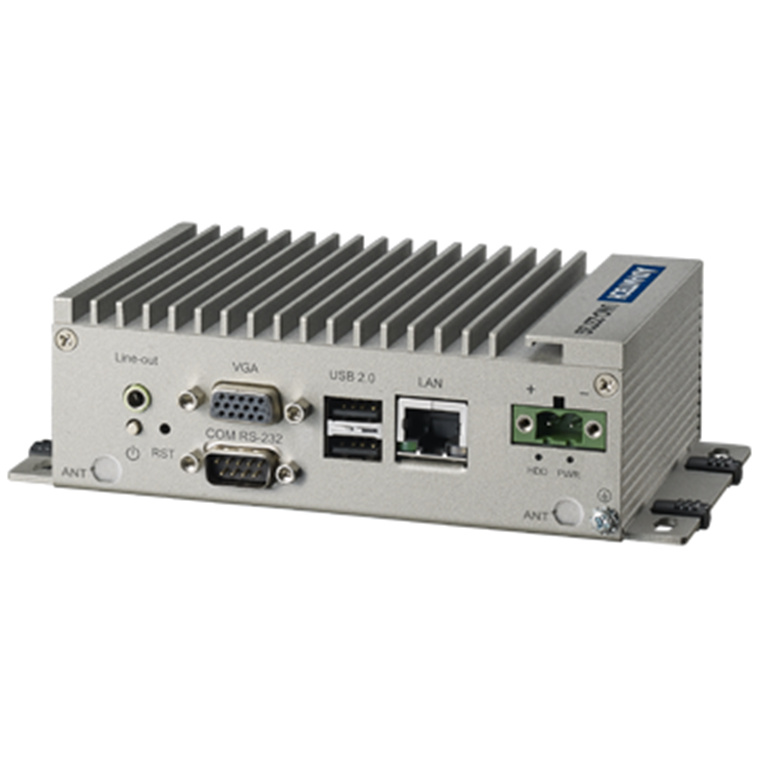

Advantech UNO-2272G-J2AE Palm-Size Industrial Automation PC with Intel Celeron J1900 CPU
- Brand: Advantech
- MPN: UNO-2272G-J2AE
- Part #: IPCAVH221421

Product URL: https://www.pbtech.com/au/product/IPCAVH221421/Advantech-UNO-2272G-J2AE-Palm-Size-Industrial-Auto
Features
Advantech's UNO-2000 series of Embedded Automation Computers are fanless, with a highly ruggedized embedded operating system (Linux-Embedded). The series also includes iDoor technology which supports automation feature extensions such as industry fieldbus communication, Wi-Fi/3G, Digital I/O, including palm, small, and regular-size form-factors with indicated market segments in terms of entry, value, and performance product positioning. Both entry and value Embedded Automation Computers feature specific functions and they are suitable for data gateway, concentrator and data server applications. The performance model can shorten your development time and offer multiple networking interfaces to fulfill a diverse range of requirements.
- Intel® Atom™ N2800/J1900 Processors with 2GB DDR3/DDR3L Memory
- 1x GbE, 3 x USB 2.0/3.0, 1 x COM, 1 x HDMI, Audio
- Compact with Fanless Design
- Rubber Stopper Design with Captive Screw
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- Supports MRAM by iDoor Technology
Specifications
Environment
Ingress Protection
IP40
Operating Temperature
-10~55 °C (14~131 °F)
Relative Humidity
10~95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-40~85 °C (-40~185 °F)
Vibration Protection
2 Grms, random
Hardware
Certification
CE, FCC, UL, CCC, BSMI
CPU
Intel® Celeron J1900 2.0 Ghz Quad-Core
Graphics Engine
Intel® HD Graphics
Memory
1 x x SO-DIMM with 2 GB DDR3L 1333 MHz
OS Support
Microsoft® Windows 10 2019 LTSC, WES7, Linux
Power Input
24 VDC ±20%
Storage
1 x half-size mSATA

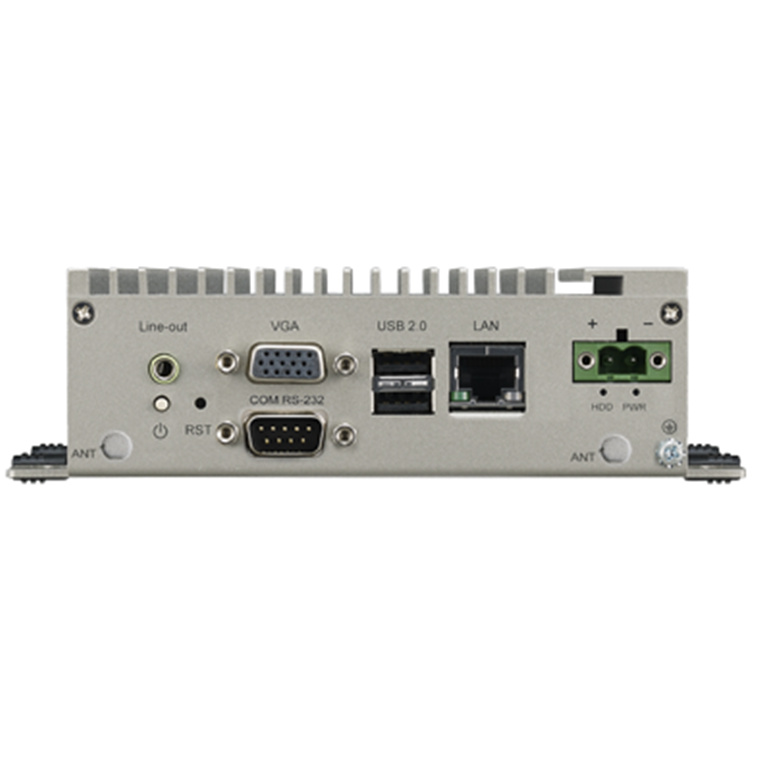

I/O Interface
Audio
Line-Out
Displays
1 x HDMI
Expansion
2 x Full-size mPCIe Slot
LAN Ports
1 x 10/100/1000 Mbps
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
1 x RS-232/422/485
USB Ports
2 x USB 2.0, 1 x USB 3.0
Mechanical
Dimension (W x H x D)
157 x 88 x 50 mm
Enclosure
Aluminum housing
Weight (Net)
0.8 kg (1.7 lb)
