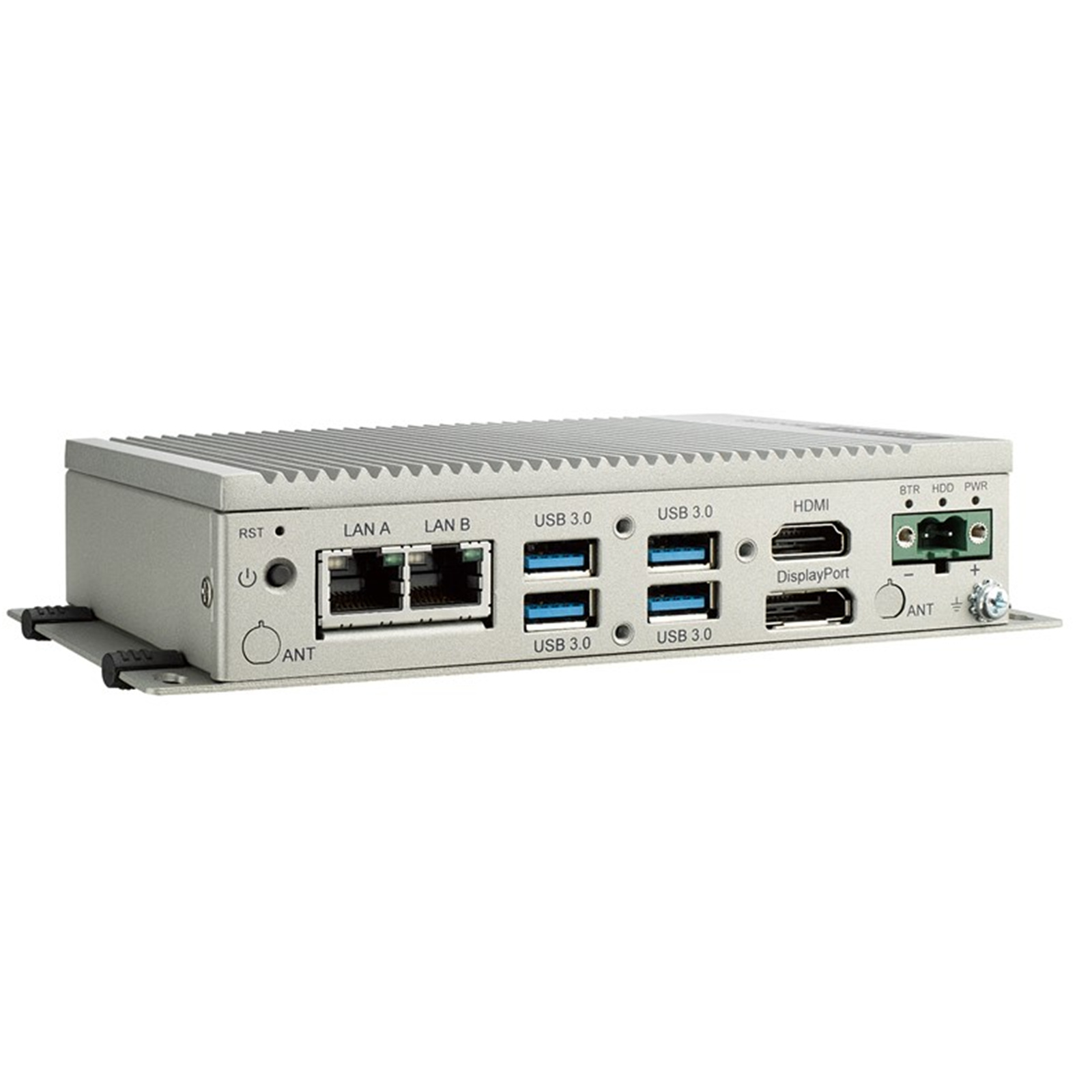

Advantech UNO-2372G-J022BE Small-Size Modular Embedded Box PC with Intel Celeron J1900

PB Tech price
PB Tech price
$ 1,240 .07
 +GST
$ 1,364 .08
 inc GST
$1,240.07  +GST
$1,364.08

Advantech UNO-2372G-J022BE Small-Size Modular Embedded Box PC with Intel Celeron J1900

  • Brand: Advantech
  • MPN: UNO-2372G-J022BE
  • Part #: IPCAVH221425
  • UPC:
PB Tech price
$ 1,240 .07 $ 1,364 .08
 +GST  inc GST


Delivery: Order now and it ships on 25 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$1,240.07  +GST
$1,364.08

Features

- Intel Atom® E3845, Celeron® J1900/J3455 quad-core processor with 4G DDR3L memory
- Compact, robust, fanless and cable-free system with high stability
- Modular design with optional SSD/ NVME/ Wi-Fi/Bluetooth/cellular scalability
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified

Specifications

System Hardware

Processor

Intel® Atom Quad Core E3845 1.91GHz Intel® Celeron® Quad Core J1900, 2GHz Intel® Celeron® Quad Core J3455 1.5 GHz (max. turbo 2.3 GHz)

Memory

Built-in 4GB DDR3L 1333MHz (Up to 8GB)
Built-in 4 GB DDR3L, 1866 MHz(Up to 8 GB)

Graphics Engine

Intel HD Graphics Intel HD Graphics 500

Ethernet

Intel® i210/ Realtek i8119i GbE, 802.1Qav, 802.1AS, 802.3az

Hardware Security

TPM2.0 (Optional)

Storage

1 x mSATA shared with mPCIe socket
1 x 2.5" SATA HDD drive bay (Max. height 9.5 mm)

Expansion

2 x Full size mPCIe slots

Bios

AMI UEFI (64 Mbit)

Watchdog Timer

Programmable timer with 255 intervals (1 ~ 255 sec)

LED Indicators

Power, RTC battery, LAN (active, status), and HDD

I/O Interfaces

Serial Ports

4 x RS-232/422/485, DB9, 50 ~ 115.2kbps

LAN Ports

2 x RJ45, 10/100/1000 Mbps IEEE 802.1u
1000BASE-T Fast Ethernet

USB Ports

1 x USB 3.0, 3 x USB 2.0 4 x USB 3.0

Displays

1 x HDMI 1.4 (1920x1080 @ 60Hz)
1 x DP 1.1 (2560x1600 @ 60Hz)
1 x HDMI 1.4b (3840 x 2160 @ 30 Hz)
1 x DP 1.2 (3840 x 2160 @ 60 Hz)

Power Connector

1 x 2-Pin, Terminal Block

Gerneral

Certification

CE, FCC, UL, CCC, BSMI

Dimensions (W x D x H)

Single stack: 150 x 105 x 35mm
Double Stack: 150 x 105 x 65mm

Form Factor

Small Size

Enclosure

Aluminum Housing

Mounting

Stand, wall, VESA (optional), DIN rail (optional)

Weight(Net)

Single-stack model: 0.8 kg (1.8 lb)
Double-stack model: 1.0 kg (2.2 lb)

Power Requirement

10 ~ 36 VDC

Power Consumption

30W (Typical), 42W (Max) 18.36W (typical)

OS support

Microsoft® Windows 7, Windows 10, Advantech Linux (Ubuntu 18.04/20.04) Microsoft® Windows 10, Advantech Linux
(Ubuntu 18.04/20.04)

Environment

Operating Temperature

-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow

Storage Temparature

- 40 ~ 85 °C/-40 ~ 185 °F

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)

Ingress Protection

IP40

Manufacturer Part No:
UNO-2372G-J022BE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221425
Product Model:
UNO-2372G-J022BE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
