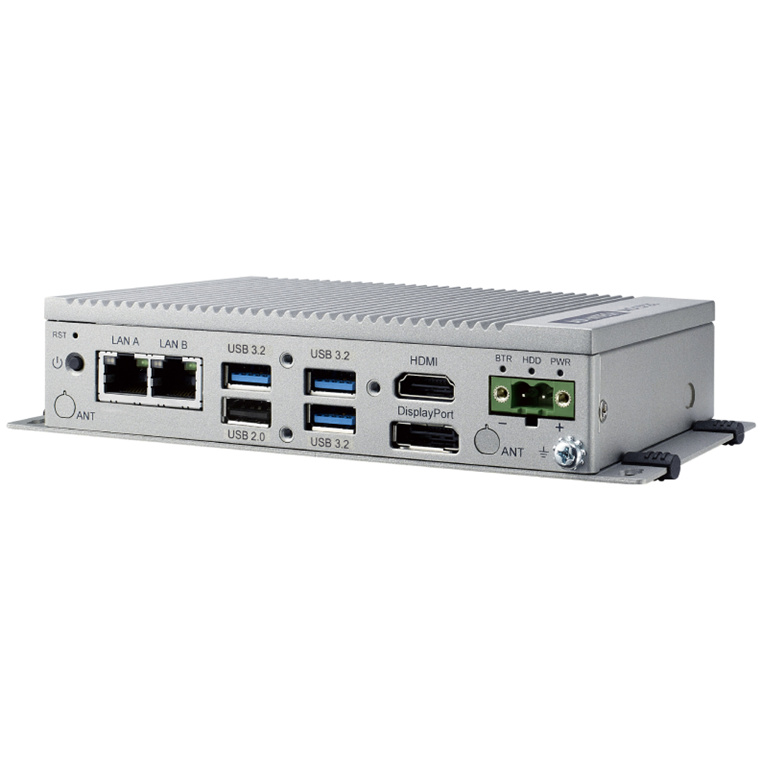

Advantech UNO-2372G-J231AE Small-Size Modular Embedded Box PC with Intel Celeron J6412

PB Tech price

$ 947 .41

+GST

$ 1,042 .15

inc GST

Advantech UNO-2372G-J231AE Small-Size Modular Embedded Box PC with Intel Celeron J6412

Brand: Advantech
MPN: UNO-2372G-J231AE
Part #: IPCAVH221429
UPC:

PB Tech price

$ 1,042 .15

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 24 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-2372G-J231AE
Part #: IPCAVH221429
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech's UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible scalability with various I/O ports to support IoT Connectivity. The UNO-2372G V2 features high processing capacity, 4K resolution display ports, optimized I/O ports, and expansion options to support wire/ wireless IoT edge data transmission and processing. With an optional second expansion stack which supports Advantech's iDoor technology, system functionalities can be easily extended to satisfy specific application requirements.

- Intel® Celeron® J6412 quad-core processor with 8GB DDR4 memory
- Compact, robust, fanless and scalable system with high stability
- Optional second stack for supporting extension iDoor module, including wireless connectivity, industrial fieldbus and more I/O ports
- Supports NVME storage with high data-transmission efficiency
- Supports Windows 11 IoT Enterprise LTSC

For More Information: https://advdownload.advantech.com/productfile/PIS/UNO-2372G%20V2/file/UNO-2372G-V2_DS(101624)20241016135512.pdf

Specifications

Hardware

Power Input

10~36 VDC

CPU

Intel® Celeron® J6412 2.00 GHz, Quad core

Memory

1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz

LAN

2 x 10/100/1000 Mbps

Watchdog Timer

1~255 s

Storage

1 x 2.5" SSD/HDD bay

BIOS

AMI EFI 64 Mbit

Certification

CE, FCC, UL, CCC, BSMI

Graphics Engine

Intel® UHD Graphics

OS Support

Microsoft® Windows 10 2019 LTSC, Linux

Environment

Relative Humidity

10~95% RH (non-condensing)

Vibration Protection

2 Grms, random

Shock Protection

50 G, half sine

Storage Temperature

-40~85 °C (-40~185 °F)

Operating Temperature

-20~60 °C (-4~140 °F)

Mechanical

Dimension (W x H x D)

150 x 105 x 35 mm(Single-stack);
150 x 105 x 65 mm(Double-stack)

Weight (Net)

0.8 kg (1.76 lb)

Enclosure

Aluminum housing

I/O Interface

Audio

Line-Out

Displays

1 x HDMI, 1 x DP

Serial Ports

4 x RS-232/422/485 (DB9)

USB Ports

3 x USB 3.2, 1 x USB 2.0

Power Connector

1 x 2-Pin Terminal Block

LAN Ports

2 x 10/100/1000 Mbps

Manufacturer Part No:

UNO-2372G-J231AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221429

Product Model:

UNO-2372G-J231AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
