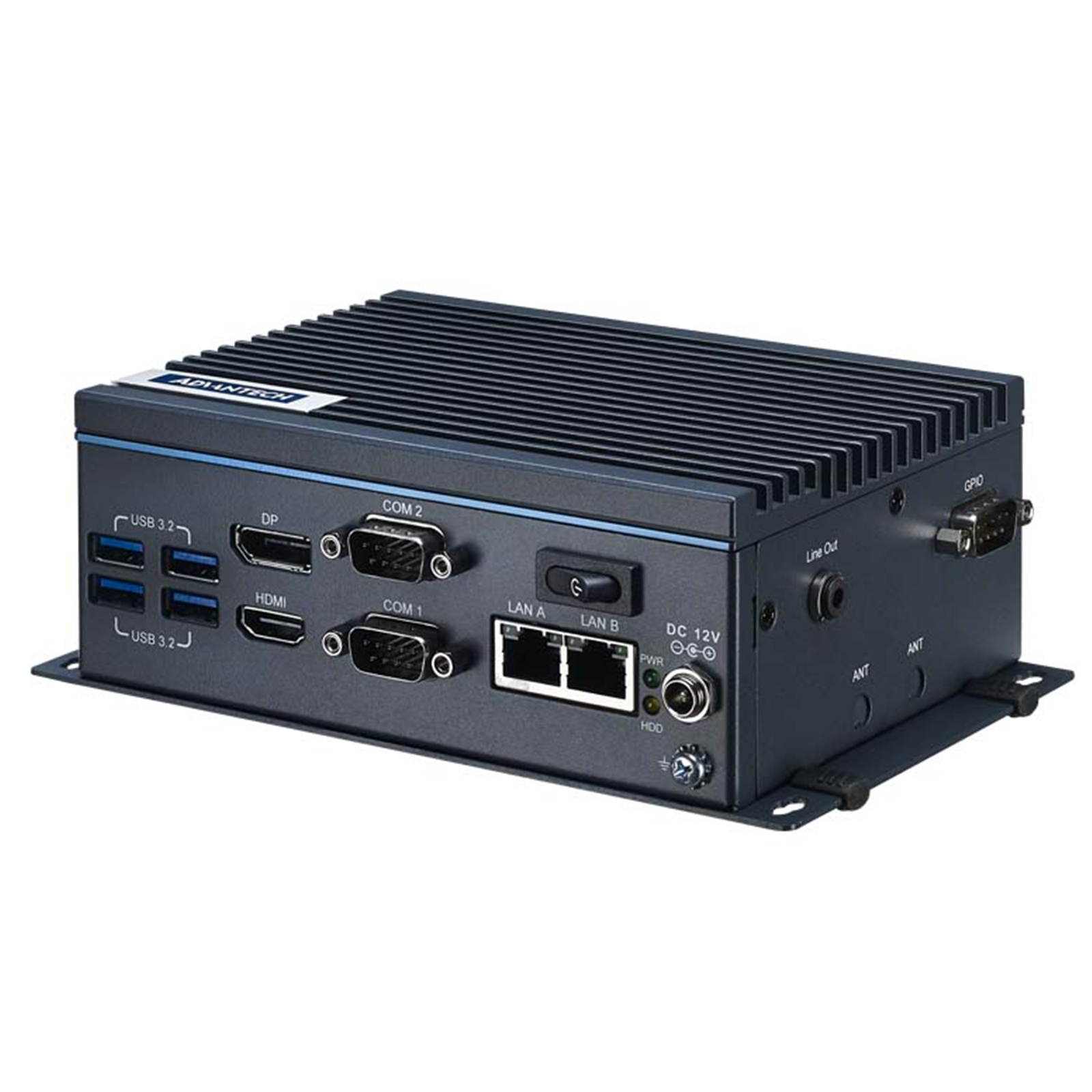

Advantech UNO-238-83N1AE Compact IoT Edge Computer with Intel Core i3-8145U CPU
- Brand: Advantech
- MPN: UNO-238-83N1AE
- Part #: IPCAVH221430

Product URL: https://www.pbtech.com/au/product/IPCAVH221430/Advantech-UNO-238-83N1AE-Compact-IoT-Edge-Computer
Features
- 2 x GbE, 4 x USB3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8 bit)
- Compact, fanless design
- Rubber stopper for stand mount and optional kit for DIN-rail mounting
- Threaded DC jack for reliable power supply
- Optimized mechanical design for easy RAM swapping
Specifications
General
Certification
CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H)
150 x 107 x 60 mm (5.91 x 4.22 x 2.36 in)
Form Factor
Small
Enclosure
Aluminum housing
Mount Options
Stand, DIN rail (optional)
Weight (Net)
1.8 kg (3.9 lb)
Power Requirement
12VDC
Power Consumption
31W (typical), 54W (Max)
OS Support
Windows 10 2019 LTSC, Windows 11, AdvLinux
(Ubuntu 18.04)
System Hardware
BIOS
AMI EFI (256 Mbit)
Watchdog Timer
Programmable timer with 255 intervals (1 ~ 255 sec)
TPM
TPM2.0 (SLB9670XQ2.0)
Processor
Intel® i7-8665UE quad core, 1.7 GHz (up to 4.4 GHz)
Intel® i5-8365UE quad core, 1.6 GHz (up to 4.1 GHz)
Intel® i3-8145UE dual core, 2.2 GHz (up to 3.9 GHz)
Memory
2 socket DDR4 2400 (up to 32 GB max.)
Graphics Engine
Intel® UHD Graphics 620
Ethernet
10/100/1000 Mbps (LAN1: Intel® i219; LAN2: Intel® i210-IT)
LED Indicators
Power and HDD status
Storage
32GB of eMMC 5.1 (Onboard)
1 x M.2 B Key 2280 (SATA or NVMe PCIex2), shared with expansion
Expansion
1 x M.2 B Key 3042 (For LTE module , support USB 2.0 only), shared with storage
1 x M.2 E Key 2230 (For WiFi module, support PCIe and USB 2.0)
SIM slot
Yes (One for nano size)
I/O
Serial Ports
2 x RS-232/422/485
LAN
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u
1000BASE-T Fast Ethernet
USB
4 x USB 3.2
Displays
1 x HDMI 1.4 (up to 4096 x 2160 @30/24 Hz)
1 x DP 1.2 (up to 4096 x 2306 @60 Hz)
Power Connector
1 x Lockable DC jack
Audio
1 x Line out (optional)
Others
1 x GPIO (8 bit) (CAN bus 2.0 is available upon request)
Environment
Operating Temperature
-20 ~ 60 °C/-4 ~ 140 °F with 0.7m/s air flow and extended temperature peripherals
Storage Temperature
-40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity
10 ~ 95% RH @ 40 °C/104 °F, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection
Operating, IEC 60068-2-64, 3Grms, random, 5 ~ 500Hz, 1hr/axis
