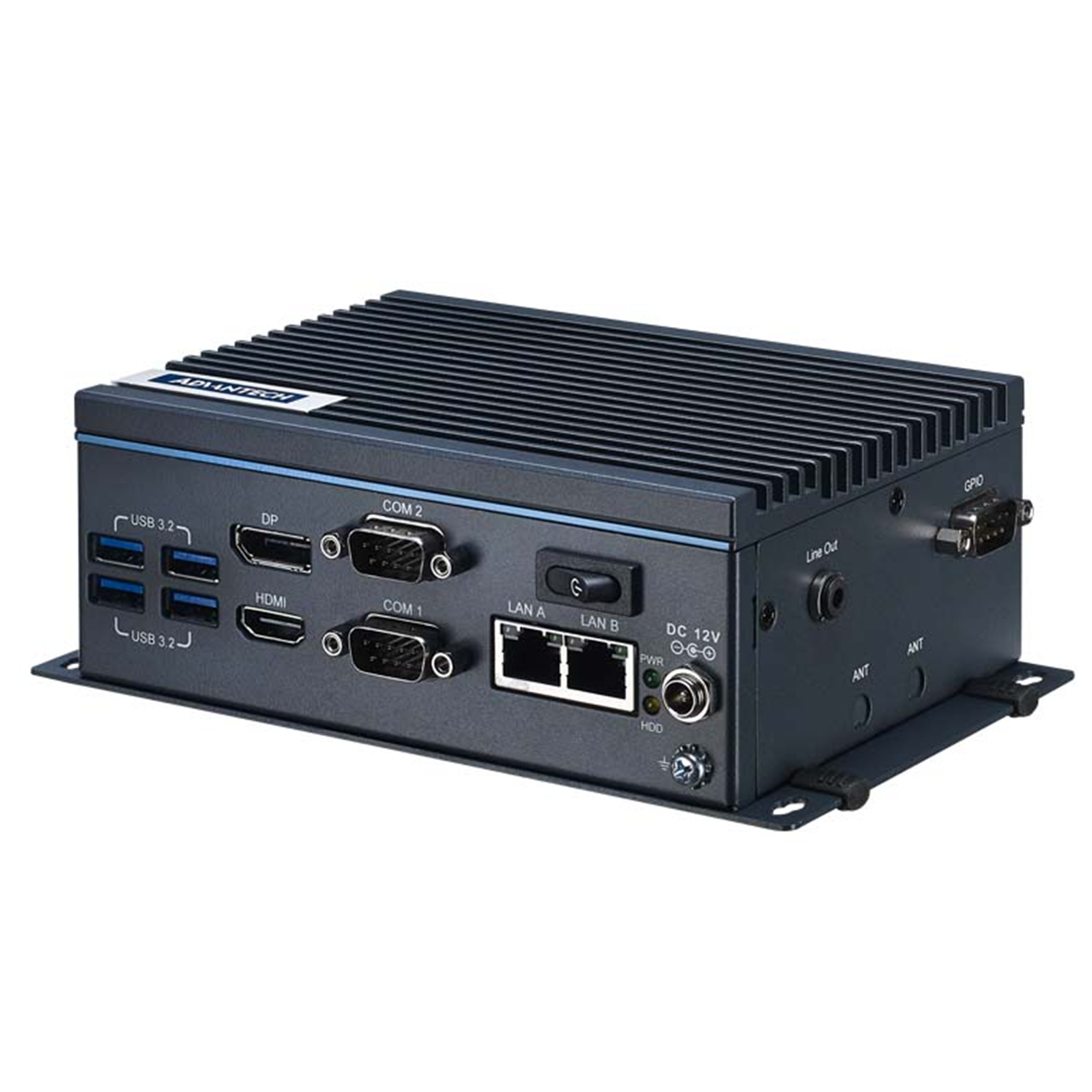

Advantech UNO-238-87N1AU Compact IoT Edge Computer with Intel Core i7-8665U CPU, MIT

  • Brand: Advantech
  • MPN: UNO-238-87N1AU
  • Part #: IPCAVH221433
  • UPC:
PB Tech price
$ 2,664 .59 $ 2,931 .05
 +GST  inc GST


Delivery: Order now and it ships on 25 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$2,664.59  +GST
$2,931.05

Features

- 8th generation Intel® Core™ i processor
- 2 x GbE, 4 x USB3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8 bit)
- Compact, fanless design
- Rubber stopper for stand mount and optional kit for DIN-rail mounting
- Threaded DC jack for reliable power supply
- Optimized mechanical design for easy RAM swapping

Specifications

General

Certification

CE, FCC, UL, CCC, BSMI

Dimensions (W x D x H)

150 x 107 x 60 mm (5.91 x 4.22 x 2.36 in)

Form Factor

Small

Enclosure

Aluminum housing

Mount Options

Stand, DIN rail (optional)

Weight (Net)

1.8 kg (3.9 lb)

Power Requirement

12VDC

Power Consumption

31W (typical), 54W (Max)

OS Support

Windows 10 2019 LTSC, Windows 11, AdvLinux
(Ubuntu 18.04)

System Hardware

BIOS

AMI EFI (256 Mbit)

Watchdog Timer

Programmable timer with 255 intervals (1 ~ 255 sec)

TPM

TPM2.0 (SLB9670XQ2.0)

Processor

Intel® i7-8665UE quad core, 1.7 GHz (up to 4.4 GHz)
Intel® i5-8365UE quad core, 1.6 GHz (up to 4.1 GHz)
Intel® i3-8145UE dual core, 2.2 GHz (up to 3.9 GHz)

Memory

2 socket DDR4 2400 (up to 32 GB max.)

Graphics Engine

Intel® UHD Graphics 620

Ethernet

10/100/1000 Mbps (LAN1: Intel® i219; LAN2: Intel® i210-IT)

LED Indicators

Power and HDD status

Storage

32GB of eMMC 5.1 (Onboard)
1 x M.2 B Key 2280 (SATA or NVMe PCIex2), shared with expansion

Expansion

1 x M.2 B Key 3042 (For LTE module , support USB 2.0 only), shared with storage
1 x M.2 E Key 2230 (For WiFi module, support PCIe and USB 2.0)

SIM slot

Yes (One for nano size)

I/O

Serial Ports

2 x RS-232/422/485

LAN

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u
1000BASE-T Fast Ethernet

USB

4 x USB 3.2

Displays

1 x HDMI 1.4 (up to 4096 x 2160 @30/24 Hz)
1 x DP 1.2 (up to 4096 x 2306 @60 Hz)

Power Connector

1 x Lockable DC jack

Audio

1 x Line out (optional)

Others

1 x GPIO (8 bit) (CAN bus 2.0 is available upon request)

Environment

Operating Temperature

-20 ~ 60 °C/-4 ~ 140 °F with 0.7m/s air flow and extended temperature peripherals

Storage Temperature

-40 ~ 85 °C/-40 ~ 185 °F

Relative Humidity

10 ~ 95% RH @ 40 °C/104 °F, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 3Grms, random, 5 ~ 500Hz, 1hr/axis

Manufacturer Part No:
UNO-238-87N1AU
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221433
Product Model:
UNO-238-87N1AU
Warranty: 12 months *
