Advantech UNO-247-J121W10 IoT Edge Computer with Intel Celeron J3455 CPU, Win10
- Brand: Advantech
- MPN: UNO-247-J121W10
- Part #: IPCAVH221439

Product URL: https://www.pbtech.com/au/product/IPCAVH221439/Advantech-UNO-247-J121W10-IoT-Edge-Computer-with-I
Features

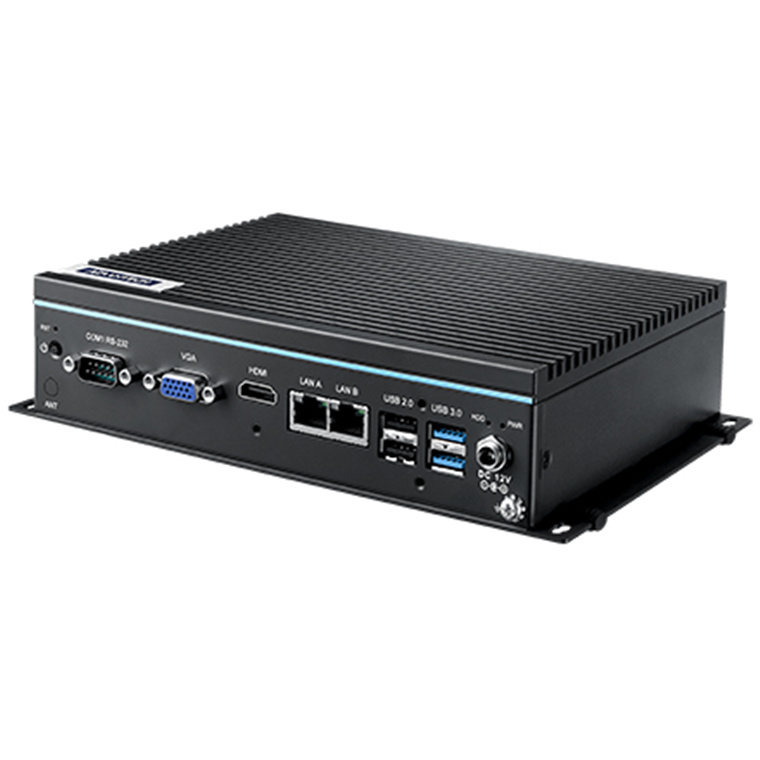

Advantech UNO-247-J121W10 IoT Edge Computer with Intel Celeron J3455 CPU, Win10
- Intel® Celeron® J3455 processor
- Robust design with high stability
- 2x GbE, 2 x USB3.0, 2 x USB2.0, 4 x RS232, 2 x RS485, 1 x HDMI, 1 x VGA
- Compact size with fanless design
- Rubber stopper design for stand mount and optional kit for DIN-rail mount
- Threaded DC Jack design for more steady power supply
- Optimized mechanical design for easier RAM swapping
Specifications
Environment
Ingress Protection
IP40
Operating Temperature
-20~60 °C (-4~140 °F)
Relative Humidity
10~95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-40~85 °C (-40~185 °F)
Vibration Protection
3 Grms, random
Hardware
Certification
CB, UL, CE, FCC, CCC, BSMI
CPU
Intel® Celeron® J3455 1.5GHz
Memory
1 x DDR3L SO-DIMM Slot
OS Support
Microsoft® Windows 10 2019 LTSC, Linux
Power Input
12 VDC
Storage
1 x mSATA slot, 1 x 2.5" 64 GB SSD
BIOS
AMI EFI 64 Mbit Flash BIOS
Ethernet
Realtek® RTL8111G-CG GbE
LED Indicators
PWR
Power Consumption
17 W @ 12 VDC
Watchdog Timer
1~255 s
I/O Interface
Audio
Line-Out
Displays
1 x HDMI, 1 x VGA
Expansion
1 x Full-size mPCIe Slot,
1 x M.2 E key 2230,
1 x Micro SIM Card Slot
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
1 x DC Jack
Serial Ports
4 x RS-232, 2 x RS-485
USB Ports
2 x USB 3.0, 2 x USB 2.0
Mechanical
Dimension (W x H x D)
200 x 140 x 50 mm
Enclosure
Aluminum housing
Weight (Net)
1.0 kg (2.2 lb)
Mounting
Stand, Din-rail
