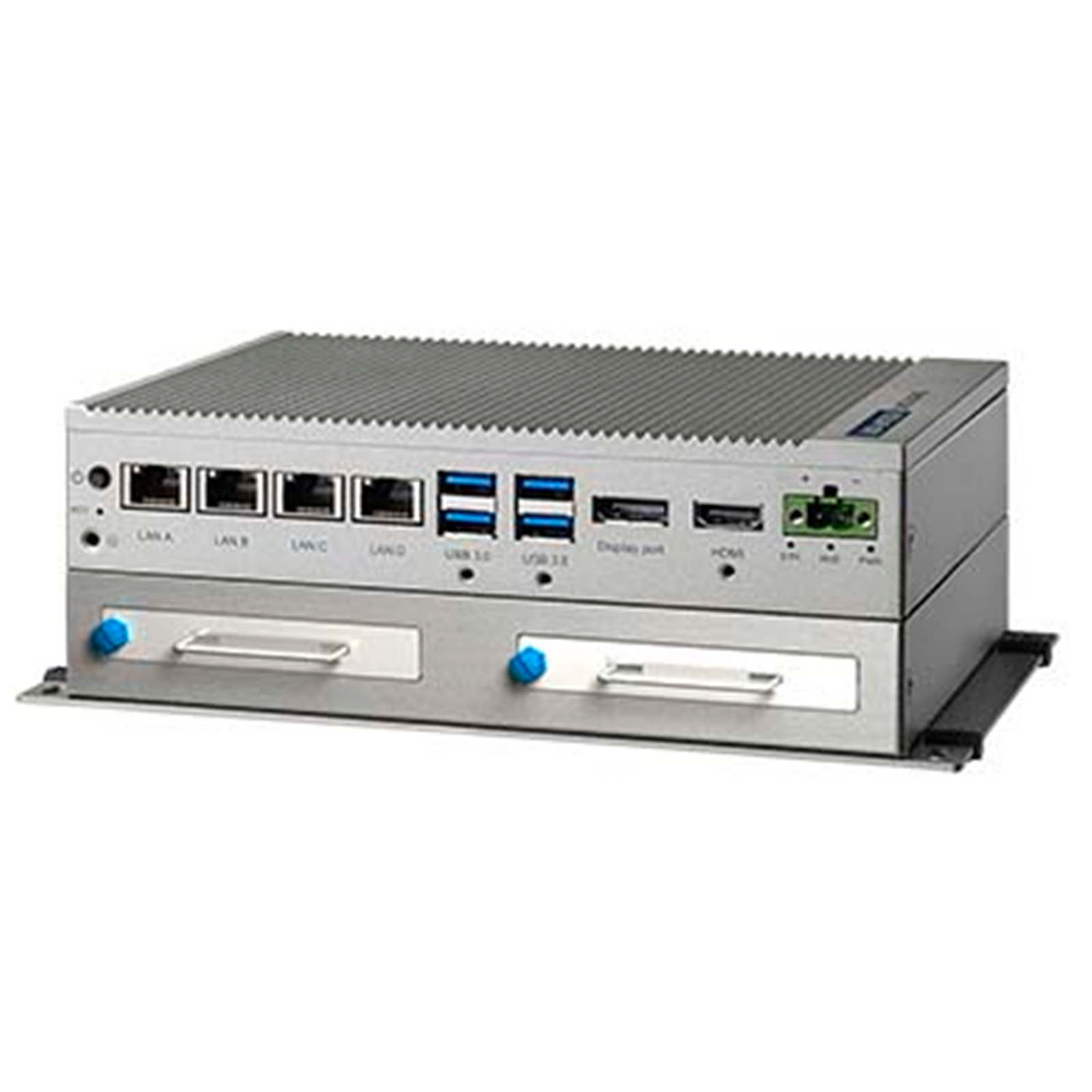

Advantech UNO-2484G-6331BE Modular Compact Embedded Box PC with 6th Gen Intel Core i3-6100U CPU
- Brand: Advantech
- MPN: UNO-2484G-6331BE
- Part #: IPCAVH221441

Product URL: https://www.pbtech.com/au/product/IPCAVH221441/Advantech-UNO-2484G-6331BE-Modular-Compact-Embedde
Features
- 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP, 4 x RS232/422/485
- Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
- Compact Fanless Design
- Ruggedized by zero cable and lockable I/O design
- Supports 30+ iDOOR combination with four main categories
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology with RED Compliance
Specifications
General
Certification
CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H)
200 x 140 x 40 (7.8" x 5.6" x 1.6" ) for single stack
UNO-2484G version
200 x 140 x 70 (7.8" x 5.6" x 2.8") for double stack
UNO-2484G version
Form Factor
Regular Size with stackable design
Enclosure
Aluminum Housing
Mounting
Stand, Wall, VESA (Optional), DIN-rail (Optional)
Weight (Net)
Single stack: 1.4kg (3.09lbs)
Double stack: 1.8kg (3.97lbs)
Power Requirement
10 - 36 VDC
Power Consumption
55W (Typical), 95.2W (Max)
OS Support
Microsoft® Windows 7, 10, Advantech Linux
(UNO-2484G-6 series)
Microsoft® Windows 10, Advantech Linux
(UNO-2484G-7 series)
System Hardware
BIOS
AMI 128 Mbit SPI
Watchdog Timer
Programmable 255 levels timer interval, from 1 to 255 sec
Hardware Security
TPM2.0 (Optional)
Processor
6th Gen Intel Core i7-6600U, 2.6GHz
i5-6300U, 2.4GHz
i3-6100U, 2.3GHz
7th Gen Intel Core i7-7600U, 2.8GHz
i5-7300U, 2.6GHz
i3-7100U, 2.4GHz
Celeron 3965U, 2.0 GHz
Memory
i7/i5/i3 model: Built-in 8GB DDR4 2133 MHz
(support up to 16G)
Celeron model: Built-in 4GB DDR4 2133 MHz
(support up to 16G)
Graphics Engine
Intel® HD Graphics 520/620
?Ethernet
4 x RJ45, 10/100/1000 Mbps
LED Indicators
LEDs for Power, HDD, LAN (Active status), RTC Battery low
Storage
One mSATA (slot shared with mPCIe slot)
Two drive bay for SATA 2.5" SSD/HDD (Support RAID 0/1)
Expansion
1 x full-size mPCIe slot for single stack version (only support wireless iDOOR)
4 x full-size mPCIe slots for double stack version (1 slot for wireless iDOOR, 3 slots for all iDOOR modules)
I/O Interfaces
?Serial Ports
4 x RS 232/422/485, 50-115.2 kbps speed
LAN Ports
4 x RJ45, 10/100/1000 Mbps
1000BASE-T Fast Ethernet
USB Ports
4 x USB3.0
Displays
1 x HDMI, 1 x DP
HDMI 1.4 (4096x2304 @ 24Hz)
HDMI 1.4 (1920x1080 @ 60Hz)
DP 1.2 (4096x2304 @ 60Hz)
DP 1.2 (1920x1080 @ 60Hz)
Audio
Line-out
Power Connector
1 x 2 Pins, Terminal Block
Environment
Operating Temperature
-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7 m/s airflow
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Relative Humidity
10 ~ 95% RH @ 40°C, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Protection
Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)
Ingress Protection
IP40
